Application Main Window

Classes

class  QAction
 Abstract user interface action that can be inserted into widgets More...

class  QActionGroup
 Groups actions together More...

class  QDockWidget
 Widget that can be docked inside a QMainWindow or floated as a top-level window on the desktop More...

class  QMainWindow
 QMainWindow class provides the main GUI application window More...

class  QMdiArea
 Area in which MDI windows are displayed More...

class  QMdiSubWindow
 Subwindow class for QMdiArea More...

class  QMenu
 Provides a menu widget for use in menu bars, context menus, and other popup menus More...

class  QMenuBar
 Horizontal menu bar More...

class  QSizeGrip
 Provides a resize handle for resizing top-level windows More...

class  QStatusBar
 Horizontal bar suitable for presenting status information More...

class  QToolBar
 Provides a movable panel that contains a set of controls More...

class  QWidgetAction
 Extends QAction by an interface for inserting custom widgets into action based containers, such as toolbars More...


Detailed Description

These classes provide everything you need for a typical modern main application window, like the main window itself, menu and tool bars, a status bar, etc.

The Main Window Classes

CopperSpice provides the following classes for managing main windows and associated user interface components:

Example Code

Generally, you will subclass QMainWindow and set up menus, toolbars, and dock widgets inside the QMainWindow constructor.

To add a menu bar to the main window, we simply create the menus, and add them to the main window's menu bar. Note that the QMainWindow::menuBar() function will automatically create the menu bar the first time it is called. You can also call QMainWindow::setMenuBar() to use a custom menu bar in the main window.

MainWindow::MainWindow(QWidget *parent)
: QMainWindow(parent)
{
...
newAct = new QAction(tr("&New"), this);
newAct->setShortcuts(QKeySequence::New);
newAct->setStatusTip(tr("Create a new file"));
connect(newAct, SIGNAL(triggered()), this, SLOT(newFile()));
openAct = new QAction(tr("&Open..."), this);
openAct->setShortcuts(QKeySequence::Open);
openAct->setStatusTip(tr("Open an existing file"));
connect(openAct, SIGNAL(triggered()), this, SLOT(open()));
...

Once actions have been created, we can add them to the main window components. To begin with, we add them to the pop-up menus:

fileMenu = menuBar()->addMenu(tr("&File"));
fileMenu->addAction(newAct);
fileMenu->addAction(openAct);
...
fileMenu->addSeparator();
...

The QToolBar and QMenu classes use the CopperSpice action system to provide a consistent API. In the above code, some existing actions were added to the file menu with the QMenu::addAction() function. QToolBar also provides this function, making it easy to reuse actions in different parts of the main window. This avoids unnecessary duplication of work.

We create a toolbar as a child of the main window, and add the desired actions to it:

fileToolBar = addToolBar(tr("File"));
fileToolBar->addAction(newAct);
fileToolBar->addAction(openAct);
...
fileToolbar->setAllowedAreas(Qt::TopToolBarArea | Qt::BottomToolBarArea);
addToolBar(Qt::TopToolBarArea, fileToolbar);

In this example, the toolbar is restricted to the top and bottom toolbar areas of the main window, and is initially placed in the top tool bar area. We can see that the actions specified by newAct and openAct will be displayed both on the toolbar and in the file menu.

QDockWidget is used in a similar way to QToolBar. We create a dock widget as a child of the main window, and add widgets as children of the dock widget:

contentsWindow = new QDockWidget(tr("Table of Contents"), this);
contentsWindow->setAllowedAreas(Qt::LeftDockWidgetArea | Qt::RightDockWidgetArea);
addDockWidget(Qt::LeftDockWidgetArea, contentsWindow);
headingList = new QListWidget(contentsWindow);
contentsWindow->setWidget(headingList);

In this example, the dock widget can only be placed in the left and right dock areas, and it is initially placed in the left dock area.

The QMainWindow API allows the programmer to customize which dock widget areas occupy the four corners of the dock widget area. If required, the default can be changed with the QMainWindow::setCorner() function:

setCorner(Qt::TopLeftCorner, Qt::LeftDockWidgetArea);
setCorner(Qt::BottomLeftCorner, Qt::LeftDockWidgetArea);
setCorner(Qt::TopRightCorner, Qt::RightDockWidgetArea);
setCorner(Qt::BottomRightCorner, Qt::RightDockWidgetArea);

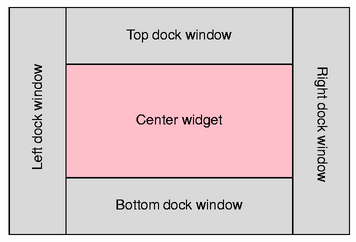

The following diagram shows the configuration produced by the above code. Note that the left and right dock widgets will occupy the top and bottom corners of the main window in this layout.

Once all of the main window components have been set up, the central widget is created and installed by using code similar to the following:

QWidget *centralWidget = new QWidget(this);
setCentralWidget(centralWidget);

The central widget can be any subclass of QWidget.
