The QMediaRecorder class is used for the recording of media content. More...

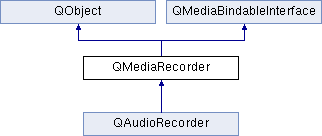

Inheritance diagram for QMediaRecorder:

Public Types
enum	Error

enum	State

enum	Status

Public Signals
void	actualLocationChanged (const QUrl &location)

void	availabilityChanged (bool available)

void	availabilityChanged (QMultimedia::AvailabilityStatus availability)

void	durationChanged (qint64 duration)

void	error (QMediaRecorder::Error error)

void	metaDataAvailableChanged (bool available)

void	metaDataChanged ()

void	metaDataChanged (const QString &key, const QVariant &value)

void	metaDataWritableChanged (bool writable)

void	mutedChanged (bool muted)

void	stateChanged (QMediaRecorder::State state)

void	statusChanged (QMediaRecorder::Status status)

void	volumeChanged (qreal volume)

Public Signals inherited from QObject
void	destroyed (QObject *obj=nullptr)

void	objectNameChanged (const QString &objectName)

Public Slots
void	pause ()

void	record ()

void	setMuted (bool muted)

void	setVolume (qreal volume)

void	stop ()

Public Slots inherited from QObject
void	deleteLater ()

Public Methods
	QMediaRecorder (QMediaObject mediaObject, QObject parent=nullptr)

	~QMediaRecorder ()

QUrl	actualLocation () const

QString	audioCodecDescription (const QString &codecName) const

QAudioEncoderSettings	audioSettings () const

QMultimedia::AvailabilityStatus	availability () const

QStringList	availableMetaData () const

QString	containerDescription (const QString &format) const

QString	containerFormat () const

qint64	duration () const

Error	error () const

QString	errorString () const

bool	isAvailable () const

bool	isMetaDataAvailable () const

bool	isMetaDataWritable () const

bool	isMuted () const

QMediaObject *	mediaObject () const override

QVariant	metaData (const QString &key) const

QUrl	outputLocation () const

void	setAudioSettings (const QAudioEncoderSettings &audioSettings)

void	setContainerFormat (const QString &format)

void	setEncodingSettings (const QAudioEncoderSettings &audioSettings, const QVideoEncoderSettings &videoSettings=QVideoEncoderSettings (), const QString &mimeType=QString ())

void	setMetaData (const QString &key, const QVariant &value)

bool	setOutputLocation (const QUrl &location)

void	setVideoSettings (const QVideoEncoderSettings &videoSettings)

State	state () const

Status	status () const

QStringList	supportedAudioCodecs () const

QList< int >	supportedAudioSampleRates (const QAudioEncoderSettings &settings=QAudioEncoderSettings (), bool *continuous=nullptr) const

QStringList	supportedContainers () const

QList< qreal >	supportedFrameRates (const QVideoEncoderSettings &settings=QVideoEncoderSettings (), bool *continuous=nullptr) const

QList< QSize >	supportedResolutions (const QVideoEncoderSettings &settings=QVideoEncoderSettings (), bool *continuous=nullptr) const

QStringList	supportedVideoCodecs () const

QString	videoCodecDescription (const QString &codecName) const

QVideoEncoderSettings	videoSettings () const

qreal	volume () const

Public Methods inherited from QObject
	QObject (QObject *parent=nullptr)

	~QObject ()

bool	blockSignals (bool block)

const QList< QObject * > &	children () const

bool	connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void	dumpObjectInfo ()

void	dumpObjectTree ()

QList< QString >	dynamicPropertyNames () const

virtual bool	event (QEvent *event)

virtual bool	eventFilter (QObject watched, QEvent event)

template<typename T >
T	findChild (const QString &childName=QString ()) const

template<class T >
QList< T >	findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T >	findChildren (const QString &childName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool	inherits (const QString &className) const

void	installEventFilter (QObject *filterObj)

bool	isWidgetType () const

bool	isWindowType () const

void	killTimer (int id)

const QMetaObject *	metaObject () const

void	moveToThread (QThread *targetThread)

QString	objectName () const

QObject *	parent () const

template<class T = QVariant>
T	property (const QString &name) const

void	removeEventFilter (QObject *obj)

void	setObjectName (const QString &name)

void	setParent (QObject *parent)

bool	setProperty (const QString &name, const QVariant &value)

bool	signalsBlocked () const

int	startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThread *	thread () const

Public Methods inherited from QMediaBindableInterface
virtual	~QMediaBindableInterface ()

Protected Methods
bool	setMediaObject (QMediaObject *object) override

Protected Methods inherited from QObject
virtual void	childEvent (QChildEvent *event)

virtual void	connectNotify (const QMetaMethod &signalMethod) const

virtual void	customEvent (QEvent *event)

virtual void	disconnectNotify (const QMetaMethod &signalMethod) const

bool	isSignalConnected (const QMetaMethod &signalMethod) const

int	receivers (const QString &signal) const

QObject *	sender () const

int	senderSignalIndex () const

virtual void	timerEvent (QTimerEvent *event)

Properties
	actualLocation
	Actual location of the last media content. More...

	duration
	Recorded media duration in milliseconds. More...

	metaDataAvailable
	Whether access to a media object's metadata is available. More...

	metaDataWritable
	Whether a media object's metadata is writable. More...

	muted
	Whether a recording audio stream is muted. More...

	outputLocation
	the destination location of media content. More...

	state
	Current state of the media recorder. More...

	status
	Current status of the media recorder. More...

	volume
	Linear audio gain of media recorder. More...

Properties inherited from QObject
	objectName

Additional Inherited Members
Static Public Methods inherited from QObject
static bool	connect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool	connect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool	connect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool	disconnect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, std::nullptr_t, const QObject receiver, std::nullptr_t)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObject &	staticMetaObject ()

static QString	tr (const char text, const char comment=nullptr, std::optional< int > numArg=std::optional< int >())

Related Functions inherited from QObject
T	qobject_cast (QObject *object)

	QObjectList

Detailed Description

The QMediaRecorder class is a high level media recording class. It is not intended to be used alone but for accessing the media recording functions of other media objects, like QRadioTuner, or QCamera.

recorder = new QMediaRecorder(camera);

QAudioEncoderSettings audioSettings;
audioSettings.setCodec("audio/amr");
audioSettings.setQuality(QMultimedia::HighQuality);

recorder->setAudioSettings(audioSettings);

recorder->setOutputLocation(QUrl::fromLocalFile(fileName));
recorder->record();

See also: QAudioRecorder

Member Enumeration Documentation

enum QMediaRecorder::Error

Constant	Value	Description
QMediaRecorder::NoError	0	No Errors.
QMediaRecorder::ResourceError	1	Device is not ready or not available.
QMediaRecorder::FormatError	2	Current format is not supported.
QMediaRecorder::OutOfSpaceError	3	No space left on device.

enum QMediaRecorder::State

Constant	Value	Description
QMediaRecorder::StoppedState	0	Recorder is not active.
QMediaRecorder::RecordingState	1	Recording is requested.
QMediaRecorder::PausedState	2	Recorder is paused.

enum QMediaRecorder::Status

Constant	Value	Description
QMediaRecorder::UnavailableStatus	0	The recorder is not available or not supported by connected media object.
QMediaRecorder::UnloadedStatus	1	The recorder is available but not loaded.
QMediaRecorder::LoadingStatus	2	The recorder is initializing.
QMediaRecorder::LoadedStatus	3	The recorder is initialized and ready to record media.
QMediaRecorder::StartingStatus	4	Recording is requested but not active yet.
QMediaRecorder::RecordingStatus	5	Recording is active.
QMediaRecorder::PausedStatus	6	Recording is paused.
QMediaRecorder::FinalizingStatus	7	Recording is stopped with media being finalized.

Constructor & Destructor Documentation

QMediaRecorder::QMediaRecorder	(	QMediaObject *	mediaObject,
		QObject *	parent = `nullptr`
	)

explicit

Constructs a media recorder which records the media produced by mediaObject. The parent is passed to QMediaObject.

QMediaRecorder::~QMediaRecorder ( )

Destroys a media recorder object.

Method Documentation

QUrl QMediaRecorder::actualLocation ( ) const

Returns the current value of the actualLocation property.

void QMediaRecorder::actualLocationChanged ( const QUrl & location )

signal

Signals the actual location of the recorded media has changed. This signal is usually emitted when recording starts.

QString QMediaRecorder::audioCodecDescription ( const QString & codecName ) const

Returns a description of an audio codecName.

QAudioEncoderSettings QMediaRecorder::audioSettings ( ) const

Returns the audio encoder settings being used.

See also: setEncodingSettings()

QMultimedia::AvailabilityStatus QMediaRecorder::availability ( ) const

Returns the availability of this functionality.

See also: availabilityChanged()

void QMediaRecorder::availabilityChanged ( bool available )

signal

Signals that the media recorder is now available (if available is true), or not.

void QMediaRecorder::availabilityChanged ( QMultimedia::AvailabilityStatus availability )

signal

Signals that the service availability has changed to availability.

QStringList QMediaRecorder::availableMetaData ( ) const

Returns a list of keys there is metadata available for.

QString QMediaRecorder::containerDescription ( const QString & format ) const

Returns a description of a container format.

QString QMediaRecorder::containerFormat ( ) const

Returns the selected container format.

qint64 QMediaRecorder::duration ( ) const

Returns the current value of the duration property.

void QMediaRecorder::durationChanged ( qint64 duration )

signal

Signals that the duration of the recorded media has changed.

QMediaRecorder::Error QMediaRecorder::error ( ) const

Returns the current error state.

See also: errorString()

void QMediaRecorder::error ( QMediaRecorder::Error error )

signal

Signals that an error has occurred.

QString QMediaRecorder::errorString ( ) const

Returns a string describing the current error state.

See also: error()

bool QMediaRecorder::isAvailable ( ) const

Returns true if media recorder service ready to use.

See also: availabilityChanged()

bool QMediaRecorder::isMetaDataAvailable ( ) const

Returns true if the media object's metadata is available. The property is called metaDataAvailable.

bool QMediaRecorder::isMetaDataWritable ( ) const

Returns true if the media object metadata is writeable. The property is called metaDataWritable.

bool QMediaRecorder::isMuted ( ) const

Returns true if the recording audio stream is muted. The property is called muted.

QMediaObject * QMediaRecorder::mediaObject ( ) const

overridevirtual

Returns the QMediaObject instance this QMediaRecorder is bound too, otherwise nullptr.

Implements QMediaBindableInterface::mediaObject()

QVariant QMediaRecorder::metaData ( const QString & key ) const

Returns the value associated with a metadata key.

void QMediaRecorder::metaDataAvailableChanged ( bool available )

signal

Signals that the available state of a media object's metadata has changed.

void QMediaRecorder::metaDataChanged ( )

signal

Signals that a media object's metadata has changed.

If multiple metadata elements are changed, metaDataChanged(const QString &key, const QVariant &value) signal is emitted for each of them with metaDataChanged() changed emitted once.

void QMediaRecorder::metaDataChanged	(	const QString &	key,
		const QVariant &	value
	)

signal

Signal the changes of one metadata element value with the given key.

void QMediaRecorder::metaDataWritableChanged ( bool writable )

signal

Signals that the writable state of a media object's metadata has changed.

void QMediaRecorder::mutedChanged ( bool muted )

signal

Signals that the muted state has changed. If true the recording is being muted.

QUrl QMediaRecorder::outputLocation ( ) const

Returns the current value of the outputLocation property.

void QMediaRecorder::pause ( )

slot

Pause recording.

The recorder state is changed to QMediaRecorder::PausedState. Depending on platform recording pause may be not supported, in this case the recorder state stays unchanged.

void QMediaRecorder::record ( )

slot

Start recording.

While the recorder state is changed immediately to QMediaRecorder::RecordingState, recording may start asynchronously, with statusChanged(QMediaRecorder::RecordingStatus) signal emitted when recording starts. If recording fails error() signal is emitted with recorder state being reset back to QMediaRecorder::StoppedState.

See also: QMediaRecorder::State

void QMediaRecorder::setAudioSettings ( const QAudioEncoderSettings & audioSettings )

Sets the audio encoder to the given audioSettings.

If some parameters are not specified, or null settings are passed, the encoder will choose default encoding parameters, depending on media source properties. It is only possible to change settings when the encoder is in the QMediaEncoder::StoppedState state.

See also: audioSettings(), videoSettings(), containerFormat()

void QMediaRecorder::setContainerFormat ( const QString & format )

Sets the media container to the given format.

If the container format is not specified, the encoder will choose format, depending on media source properties and encoding settings selected. It is only possible to change settings when the encoder is in the QMediaEncoder::StoppedState state.

See also: audioSettings(), videoSettings(), containerFormat()

void QMediaRecorder::setEncodingSettings	(	const QAudioEncoderSettings &	audioSettings,
		const QVideoEncoderSettings &	videoSettings = `QVideoEncoderSettings()`,
		const QString &	mimeType = `QString()`
	)

Sets the audioSettings, videoSettings, and mimeType format.

If some parameters are not specified, or null settings are passed, the encoder will choose default encoding parameters, depending on media source properties. It is only possible to change settings when the encoder is in the QMediaEncoder::StoppedState state.

See also: audioSettings(), videoSettings(), containerFormat()

bool QMediaRecorder::setMediaObject ( QMediaObject * object )

overrideprotectedvirtual

Attaches to the media object. Returns true if attached successfully, otherwise returns false.

Implements QMediaBindableInterface::setMediaObject()

void QMediaRecorder::setMetaData	(	const QString &	key,
		const QVariant &	value
	)

Sets a value for a metadata key.

To ensure that metadata is set correctly, it should be set before starting the recording. Once the recording is stopped, any metadata set will be attached to the next recording.

void QMediaRecorder::setMuted ( bool muted )

slot

Sets the current value of the muted property to muted.

bool QMediaRecorder::setOutputLocation ( const QUrl & location )

Sets the current value of the outputLocation property to location.

void QMediaRecorder::setVideoSettings ( const QVideoEncoderSettings & videoSettings )

Sets the video encoder videoSettings.

If some parameters are not specified, or null settings are passed, the encoder will choose default encoding parameters, depending on media source properties. It is only possible to change settings when the encoder is in the QMediaEncoder::StoppedState state.

See also: audioSettings(), videoSettings(), containerFormat()

void QMediaRecorder::setVolume ( qreal volume )

slot

Sets the current value of the volume property to volume.

QMediaRecorder::State QMediaRecorder::state ( ) const

Returns the current media recorder state.

See also: QMediaRecorder::State

void QMediaRecorder::stateChanged ( QMediaRecorder::State state )

signal

Signals the media recorder state has changed.

QMediaRecorder::Status QMediaRecorder::status ( ) const

Returns the current media recorder status.

See also: QMediaRecorder::Status

void QMediaRecorder::statusChanged ( QMediaRecorder::Status status )

signal

Signals that the media recorder's status has changed.

void QMediaRecorder::stop ( )

slot

Stop recording. The recorder state property is changed to the enum value of QMediaRecorder::StoppedState.

See also: QMediaRecorder::State

QStringList QMediaRecorder::supportedAudioCodecs ( ) const

Returns a list of supported audio codecs.

QList< int > QMediaRecorder::supportedAudioSampleRates	(	const QAudioEncoderSettings &	settings = `QAudioEncoderSettings()`,
		bool *	continuous = `nullptr`
	)		const

Returns a list of supported audio sample rates.

If the settings parameter is not null, the returned list is reduced to sample rates supported with partial settings applied. This can be used to query the list of sample rates supported by specific audio codec. If the encoder supports arbitrary sample rates within the supported rates range, continuous is set to true, otherwise it is set to false.

QStringList QMediaRecorder::supportedContainers ( ) const

Returns a list of supported container formats.

QList< qreal > QMediaRecorder::supportedFrameRates	(	const QVideoEncoderSettings &	settings = `QVideoEncoderSettings()`,
		bool *	continuous = `nullptr`
	)		const

Returns a list of frame rates video can be encoded at.

If the settings parameter is not null, the returned list is reduced to frame rates supported with partial settings like video codec or resolution applied. If the encoder supports arbitrary frame rates within the supported range, continuous is set to true, otherwise it is set to false.

See also: QVideoEncoderSettings::frameRate()

QList< QSize > QMediaRecorder::supportedResolutions	(	const QVideoEncoderSettings &	settings = `QVideoEncoderSettings()`,
		bool *	continuous = `nullptr`
	)		const

Returns a list of resolutions video can be encoded at.

If the settings parameter is not null, the returned list is reduced to resolution supported with partial settings like video codec or framerate applied. If the encoder supports arbitrary resolutions within the supported range, continuous is set to true, otherwise it is set to false.

See also: QVideoEncoderSettings::resolution()

QStringList QMediaRecorder::supportedVideoCodecs ( ) const

Returns a list of supported video codecs.

QString QMediaRecorder::videoCodecDescription ( const QString & codecName ) const

Returns a description of a video codecName.

See also: setEncodingSettings()

QVideoEncoderSettings QMediaRecorder::videoSettings ( ) const

Returns the video encoder settings being used.

See also: setEncodingSettings()

qreal QMediaRecorder::volume ( ) const

Returns the current value of the volume property.

void QMediaRecorder::volumeChanged ( qreal volume )

signal

Signals that the media recorder volume has changed.

Property Documentation

QMediaRecorder::actualLocation

The actual location is usually available after recording starts, and reset when new location is set or new recording starts.

Properties	Class Methods
read	actualLocation
notify	actualLocationChanged

QMediaRecorder::duration

The property stores the recorded media duration in milliseconds.

Properties	Class Methods
read	duration
notify	durationChanged

QMediaRecorder::metaDataAvailable

If this is true there is metadata available, otherwise there is no metadata available.

Properties	Class Methods
read	isMetaDataAvailable
notify	metaDataAvailableChanged

QMediaRecorder::metaDataWritable

If this is true the metadata is writable, otherwise the metadata is read only.

Properties	Class Methods
read	isMetaDataWritable
notify	metaDataWritableChanged

QMediaRecorder::muted

Stores whether a recording audio stream is muted.

Properties	Class Methods
read	isMuted
write	setMuted
notify	mutedChanged

QMediaRecorder::outputLocation

Setting the location can fail, for example when the service supports only local file system locations but a network URL was passed. If the service does not support media recording this setting the output location will always fail.

The location can be relative or empty; in this case the recorder uses the system specific place and file naming scheme. After recording has stated, QMediaRecorder::outputLocation() returns the actual output location.

Properties	Class Methods
read	outputLocation
write	setOutputLocation

QMediaRecorder::state

The state property represents the user request and is changed synchronously during record(), pause() or stop() calls. Recorder state may also change asynchronously when recording fails.

Properties	Class Methods
read	state
notify	stateChanged

QMediaRecorder::status

The status is changed asynchronously and represents the actual status of media recorder.

Properties	Class Methods
read	status
notify	statusChanged

QMediaRecorder::volume

This property stores the linear audio gain of the media recorder.

Properties	Class Methods
read	volume
write	setVolume
notify	volumeChanged

Public Types

Public Signals

Public Slots

Public Methods

Protected Methods

Properties

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Method Documentation

Property Documentation
