QAbstractItemModel Class Referenceabstract

The QAbstractItemModel class provides the abstract interface for item model classes. More...

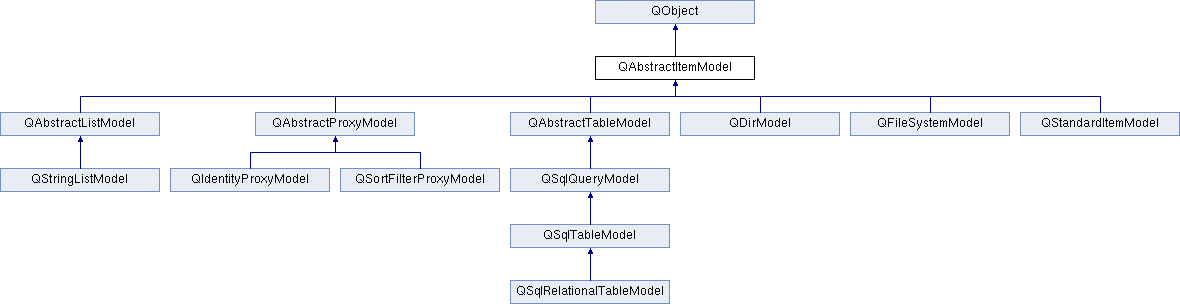

Inheritance diagram for QAbstractItemModel:
QObject QAbstractListModel QAbstractProxyModel QAbstractTableModel QDirModel QFileSystemModel QStandardItemModel QStringListModel QIdentityProxyModel QSortFilterProxyModel QSqlQueryModel QSqlTableModel QSqlRelationalTableModel

Public Signals

void columnsAboutToBeInserted (const QModelIndex &parent, int first, int last)

void columnsAboutToBeMoved (const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationColumn)

void columnsAboutToBeRemoved (const QModelIndex &parent, int first, int last)

void columnsInserted (const QModelIndex &parent, int first, int last)

void columnsMoved (const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationColumn)

void columnsRemoved (const QModelIndex &parent, int first, int last)

void dataChanged (const QModelIndex &topLeft, const QModelIndex &bottomRight, const QVector< int > &roles=QVector< int >())

void headerDataChanged (Qt::Orientation orientation, int first, int last)

void layoutAboutToBeChanged (const QList< QPersistentModelIndex > &parents=QList< QPersistentModelIndex >(), QAbstractItemModel::LayoutChangeHint hint=QAbstractItemModel::NoLayoutChangeHint)

void layoutChanged (const QList< QPersistentModelIndex > &parents=QList< QPersistentModelIndex >(), QAbstractItemModel::LayoutChangeHint hint=QAbstractItemModel::NoLayoutChangeHint)

void modelAboutToBeReset ()

void modelReset ()

void rowsAboutToBeInserted (const QModelIndex &parent, int first, int last)

void rowsAboutToBeMoved (const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationRow)

void rowsAboutToBeRemoved (const QModelIndex &parent, int first, int last)

void rowsInserted (const QModelIndex &parent, int first, int last)

void rowsMoved (const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationRow)

void rowsRemoved (const QModelIndex &parent, int first, int last)

- Public Signals inherited from QObject
void destroyed (QObject *obj=nullptr)

void objectNameChanged (const QString &objectName)


Public Slots

virtual void revert ()

virtual bool submit ()

- Public Slots inherited from QObject
void deleteLater ()


Public Methods

 QAbstractItemModel (QObject *parent=nullptr)

virtual ~QAbstractItemModel ()

virtual QModelIndex buddy (const QModelIndex &index) const

virtual bool canDropMimeData (const QMimeData *data, Qt::DropAction action, int row, int column, const QModelIndex &parent) const

virtual bool canFetchMore (const QModelIndex &parent) const

virtual int columnCount (const QModelIndex &parent=QModelIndex ()) const = 0

virtual QVariant data (const QModelIndex &index, int role=Qt::DisplayRole) const = 0

virtual bool dropMimeData (const QMimeData *data, Qt::DropAction action, int row, int column, const QModelIndex &parent)

virtual void fetchMore (const QModelIndex &parent)

virtual Qt::ItemFlags flags (const QModelIndex &index) const

virtual bool hasChildren (const QModelIndex &parent=QModelIndex ()) const

bool hasIndex (int row, int column, const QModelIndex &parent=QModelIndex ()) const

virtual QVariant headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const

virtual QModelIndex index (int row, int column, const QModelIndex &parent=QModelIndex ()) const = 0

bool insertColumn (int column, const QModelIndex &parent=QModelIndex ())

virtual bool insertColumns (int column, int count, const QModelIndex &parent=QModelIndex ())

bool insertRow (int row, const QModelIndex &parent=QModelIndex ())

virtual bool insertRows (int row, int count, const QModelIndex &parent=QModelIndex ())

virtual QMap< int, QVariantitemData (const QModelIndex &index) const

virtual QModelIndexList match (const QModelIndex &start, int role, const QVariant &value, int hits=1, Qt::MatchFlags flags=Qt::MatchFlags (Qt::MatchStartsWith|Qt::MatchWrap)) const

virtual QMimeDatamimeData (const QModelIndexList &indexes) const

virtual QStringList mimeTypes () const

bool moveColumn (const QModelIndex &sourceParent, int sourceColumn, const QModelIndex &destinationParent, int destinationChild)

virtual bool moveColumns (const QModelIndex &sourceParent, int sourceColumn, int count, const QModelIndex &destinationParent, int destinationChild)

bool moveRow (const QModelIndex &sourceParent, int sourceRow, const QModelIndex &destinationParent, int destinationChild)

virtual bool moveRows (const QModelIndex &sourceParent, int sourceRow, int count, const QModelIndex &destinationParent, int destinationChild)

QObjectparent () const

virtual QModelIndex parent (const QModelIndex &index) const = 0

bool removeColumn (int column, const QModelIndex &parent=QModelIndex ())

virtual bool removeColumns (int column, int count, const QModelIndex &parent=QModelIndex ())

bool removeRow (int row, const QModelIndex &parent=QModelIndex ())

virtual bool removeRows (int row, int count, const QModelIndex &parent=QModelIndex ())

virtual QMultiHash< int, QStringroleNames () const

virtual int rowCount (const QModelIndex &parent=QModelIndex ()) const = 0

virtual bool setData (const QModelIndex &index, const QVariant &value, int role=Qt::EditRole)

virtual bool setHeaderData (int section, Qt::Orientation orientation, const QVariant &value, int role=Qt::EditRole)

virtual bool setItemData (const QModelIndex &index, const QMap< int, QVariant > &roles)

virtual QModelIndex sibling (int row, int column, const QModelIndex &index) const

virtual void sort (int column, Qt::SortOrder order=Qt::AscendingOrder)

virtual QSize span (const QModelIndex &index) const

virtual Qt::DropActions supportedDragActions () const

virtual Qt::DropActions supportedDropActions () const

- Public Methods inherited from QObject
 QObject (QObject *parent=nullptr)

 ~QObject ()

bool blockSignals (bool block)

const QList< QObject * > & children () const

bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void dumpObjectInfo ()

void dumpObjectTree ()

QList< QStringdynamicPropertyNames () const

virtual bool event (QEvent *event)

virtual bool eventFilter (QObject *watched, QEvent *event)

template<typename T >
findChild (const QString &childName=QString ()) const

template<class T >
QList< T > findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T > findChildren (const QString &objName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool inherits (const QString &className) const

void installEventFilter (QObject *filterObj)

bool isWidgetType () const

bool isWindowType () const

void killTimer (int id)

const QMetaObjectmetaObject () const

void moveToThread (QThread *targetThread)

QString objectName () const

QObject * parent () const

template<class T = QVariant>
property (const QString &name) const

void removeEventFilter (QObject *obj)

void setObjectName (const QString &name)

void setParent (QObject *parent)

bool setProperty (const QString &name, const QVariant &value)

bool signalsBlocked () const

int startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThreadthread () const


Protected Slots

void resetInternalData ()


Protected Methods

void beginInsertColumns (const QModelIndex &parent, int first, int last)

void beginInsertRows (const QModelIndex &parent, int first, int last)

bool beginMoveColumns (const QModelIndex &sourceParent, int sourceFirst, int sourceLast, const QModelIndex &destinationParent, int destinationColumn)

bool beginMoveRows (const QModelIndex &sourceParent, int sourceFirst, int sourceLast, const QModelIndex &destinationParent, int destinationRow)

void beginRemoveColumns (const QModelIndex &parent, int first, int last)

void beginRemoveRows (const QModelIndex &parent, int first, int last)

void beginResetModel ()

void changePersistentIndex (const QModelIndex &from, const QModelIndex &to)

void changePersistentIndexList (const QModelIndexList &from, const QModelIndexList &to)

QModelIndex createIndex (int row, int column, quintptr id) const

QModelIndex createIndex (int row, int column, void *data=nullptr) const

void endInsertColumns ()

void endInsertRows ()

void endMoveColumns ()

void endMoveRows ()

void endRemoveColumns ()

void endRemoveRows ()

void endResetModel ()

QModelIndexList persistentIndexList () const

- Protected Methods inherited from QObject
virtual void childEvent (QChildEvent *event)

virtual void connectNotify (const QMetaMethod &signalMethod) const

virtual void customEvent (QEvent *event)

virtual void disconnectNotify (const QMetaMethod &signalMethod) const

bool isSignalConnected (const QMetaMethod &signalMethod) const

int receivers (const QString &signal) const

QObject * sender () const

int senderSignalIndex () const

virtual void timerEvent (QTimerEvent *event)


Friends

class QIdentityProxyModel


Additional Inherited Members

- Static Public Methods inherited from QObject
static bool connect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool connect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool disconnect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObjectstaticMetaObject ()

static QString tr (const char *text, const char *comment=nullptr, std::optional< int > numArg=std::optional< int >())

- Properties inherited from QObject
 objectName


Detailed Description

The QAbstractItemModel class provides the abstract interface for item model classes.

The QAbstractItemModel class defines the standard interface that item models must use to be able to interoperate with other components in the model/view architecture. It is not supposed to be instantiated directly. Instead, you should subclass it to create new models.

The QAbstractItemModel class is one of the Model/View Classes. For additional information refer to Model/View Programming.

If you need a model to use with a QListView or a QTableView, you should consider subclassing QAbstractListModel or QAbstractTableModel instead of this class.

The underlying data model is exposed to views and delegates as a hierarchy of tables. If you do not make use of the hierarchy, then the model is a simple table of rows and columns. Each item has a unique index specified by a QModelIndex.

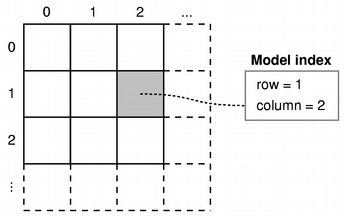

Every item of data that can be accessed via a model has an associated model index. You can obtain this model index using the index() function. Each index may have a sibling() index; child items have a parent() index.

Each item has a number of data elements associated with it and they can be retrieved by specifying a role (refer to Qt::ItemDataRole) to the model's data() function. Data for all available roles can be obtained at the same time using the itemData() function.

Data for each role is set using a particular Qt::ItemDataRole. Data for individual roles are set individually with setData(), or they can be set for all roles with setItemData().

Items can be queried with flags() (refer to Qt::ItemFlag) to see if they can be selected, dragged, or manipulated in other ways.

If an item has child objects, hasChildren() returns true for the corresponding index.

The model has a rowCount() and a columnCount() for each level of the hierarchy. Rows and columns can be inserted and removed with insertRows(), insertColumns(), removeRows(), and removeColumns().

The model emits signals to indicate changes. For example, dataChanged() is emitted whenever items of data made available by the model are changed. Changes to the headers supplied by the model cause headerDataChanged() to be emitted. If the structure of the underlying data changes, the model can emit layoutChanged() to indicate to any attached views that they should redisplay any items shown, taking the new structure into account.

The items available through the model can be searched for particular data using the match() function.

To sort the model, you can use sort().

Subclassing

Note
Some general guidelines for subclassing models are available in the Model Subclassing Reference.

When subclassing QAbstractItemModel, at the very least you must implement index(), parent(), rowCount(), columnCount(), and data(). These functions are used in all read-only models, and form the basis of editable models.

You can also reimplement hasChildren() to provide special behavior for models where the implementation of rowCount() is expensive. This makes it possible for models to restrict the amount of data requested by views, and can be used as a way to implement lazy population of model data.

To enable editing in your model, you must also implement setData(), and reimplement flags() to ensure that ItemIsEditable is returned. You can also reimplement headerData() and setHeaderData() to control the way the headers for your model are presented.

The dataChanged() and headerDataChanged() signals must be emitted explicitly when reimplementing the setData() and setHeaderData() functions, respectively.

Custom models need to create model indexes for other components to use. To do this, call createIndex() with suitable row and column numbers for the item, and an identifier for it, either as a pointer or as an integer value. The combination of these values must be unique for each item. Custom models typically use these unique identifiers in other reimplemented functions to retrieve item data and access information about the item's parents and children.

It is not necessary to support every role defined in Qt::ItemDataRole. Depending on the type of data contained within a model, it may only be useful to implement the data() function to return valid information for some of the more common roles. Most models provide at least a textual representation of item data for the Qt::DisplayRole, and well-behaved models should also provide valid information for the Qt::ToolTipRole and Qt::WhatsThisRole. Supporting these roles enables models to be used with standard CopperSpice views. However, for some models that handle highly-specialized data, it may be appropriate to provide data only for user-defined roles.

Models that provide interfaces to resizable data structures can provide implementations of insertRows(), removeRows(), insertColumns(),and removeColumns(). When implementing these functions, it is important to notify any connected views about changes to the model's dimensions both before and after they occur:

The private signals that these functions emit give attached components the chance to take action before any data becomes unavailable. The encapsulation of the insert and remove operations with these begin and end functions also enables the model to manage persistent model indexes correctly. If you want selections to be handled properly, you must ensure that you call these functions. If you insert or remove an item with children, you do not need to call these functions for the child items. In other words, the parent item will take care of its child items.

To create models that populate incrementally, you can reimplement fetchMore() and canFetchMore(). If the reimplementation of fetchMore() adds rows to the model, beginInsertRows() and endInsertRows() must be called.

See also
View Classes, Model Subclassing Reference, model-view-using-dnd, QModelIndex, and QAbstractItemView.

Constructor & Destructor Documentation

QAbstractItemModel::QAbstractItemModel ( QObject parent = nullptr)
explicit

Constructs an abstract item model with the given parent.

QAbstractItemModel::~QAbstractItemModel ( )
virtual

Destroys the abstract item model.

Method Documentation

void QAbstractItemModel::beginInsertColumns ( const QModelIndex parent,
int  first,
int  last
)
protected

Begins a column insertion operation.

When reimplementing insertColumns() in a subclass, you must call this function before inserting data into the model's underlying data store.

The parent index corresponds to the parent into which the new columns are inserted; first and last are the column numbers of the new columns will have after they have been inserted.

Specify the first and last column numbers for the span of columns you want to insert into an item in a model.For example, as shown in the diagram, we insert three columns before column 4, so first is 4 and last is 6:

This inserts the three new columns as columns 4, 5, and 6.

To append columns, insert them after the last column.For example, as shown in the diagram, we append three columns to a collection of six existing columns (ending in column 5), so first is 6 and last is 8:

This appends the two new columns as columns 6, 7, and 8.

Note
This function emits the columnsAboutToBeInserted() signal which connected views (or proxies) must handle before the data is inserted. Otherwise, the views may end up in an invalid state.
See also
endInsertColumns()
void QAbstractItemModel::beginInsertRows ( const QModelIndex parent,
int  first,
int  last
)
protected

Begins a row insertion operation.

When reimplementing insertRows() in a subclass, you must call this function before inserting data into the model's underlying data store.

The parent index corresponds to the parent into which the new rows are inserted; first and last are the row numbers that the new rows will have after they have been inserted.

Specify the first and last row numbers for the span of rows you want to insert into an item in a model.For example, as shown in the diagram, we insert three rows before row 2, so first is 2 and last is 4:

This inserts the three new rows as rows 2, 3, and 4.

To append rows, insert them after the last row.For example, as shown in the diagram, we append two rows to a collection of 4 existing rows (ending in row 3), so first is 4 and last is 5:

This appends the two new rows as rows 4 and 5.

Note
This function emits the rowsAboutToBeInserted() signal which connected views (or proxies) must handle before the data is inserted. Otherwise, the views may end up in an invalid state.
See also
endInsertRows()
bool QAbstractItemModel::beginMoveColumns ( const QModelIndex sourceParent,
int  sourceFirst,
int  sourceLast,
const QModelIndex destinationParent,
int  destinationColumn
)
protected

Begins a column move operation.

When reimplementing a subclass, this method simplifies moving entities in your model. This method is responsible for moving persistent indexes in the model, which you would otherwise be required to do yourself. Using beginMoveRows and endMoveRows is an alternative to emitting layoutAboutToBeChanged and layoutChanged directly along with changePersistentIndexes. layoutAboutToBeChanged is emitted by this method for compatibility reasons.

The sourceParent index corresponds to the parent from which the columns are moved, sourceFirst and sourceLast are the first and last column numbers of the columns to be moved. The destinationParent index corresponds to the parent into which those columns are moved. The destinationColumn is the column to which the columns will be moved. That is, the index at column sourceFirst in sourceParent will become column destinationColumn in destinationParent, followed by all other columns up to sourceLast.

However, when moving columns down in the same parent (sourceParent and destinationParent are equal), the columns will be placed before the destinationColumn index. That is, if you wish to move columns 0 and 1 so they will become columns 1 and 2, destinationColumn should be 3. In this case, the new index for the source column i (which is between sourceFirst and sourceLast) is equal to (destinationColumn - sourceLast - 1 + i).

Note that if sourceParent and destinationParen are the same, you must ensure that the destinationColumn is not within the range of sourceFirst and (sourceLast + 1). You must also ensure that you do not attempt to move a column to one of its own children or ancestors. This method returns false if either condition is true, in which case you should abort your move operation.

See also
endMoveColumns()
bool QAbstractItemModel::beginMoveRows ( const QModelIndex sourceParent,
int  sourceFirst,
int  sourceLast,
const QModelIndex destinationParent,
int  destinationRow
)
protected

Begins a row move operation.

When reimplementing a subclass, this method simplifies moving entities in your model. This method is responsible for moving persistent indexes in the model, which you would otherwise be required to do yourself. Using beginMoveRows and endMoveRows is an alternative to emitting layoutAboutToBeChanged and layoutChanged directly along with changePersistentIndexes. layoutAboutToBeChanged is emitted by this method for compatibility reasons.

The sourceParent index corresponds to the parent from which the rows are moved, sourceFirst and sourceLast are the first and last row numbers of the rows to be moved. The destinationParent index corresponds to the parent into which those rows are moved. The destinationRow is the row to which the rows will be moved. That is, the index at row sourceFirst> in sourceParent will become row destinationRow in destinationParent, followed by all other rows up to sourceLast.

However, when moving rows down in the same parent (sourceParent and destinationParent are equal), the rows will be placed before the destinationRow index. That is, if you wish to move rows 0 and 1 so they will become rows 1 and 2, destinationRow should be 3. In this case, the new index for the source row i (which is between sourceFirst and sourceLast) is equal to (destinationRow - sourceLast - 1 + i).

Note that if sourceParent and destinationParent are the same, you must ensure that the destinationRow is not within the range of sourceFirst and (sourceLast + 1). You must also ensure that you do not attempt to move a row to one of its own children or ancestors. This method returns false if either condition is true, in which case you should abort your move operation.

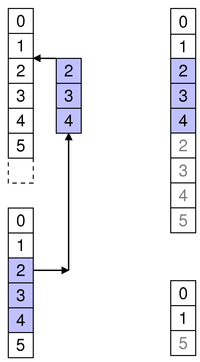

Specify the first and last row numbers for the span of rows in the source parent you want to move in the model. Also specify the row in the destination parent to move the span to.For example, as shown in the diagram, we move three rows from row 2 to 4 in the source, so sourceFirst is 2 and sourceLast is 4. We move those items to above row 2 in the destination, so destinationRow is 2.

beginMoveRows(sourceParent, 2, 4, destinationParent, 2);

This moves the three rows rows 2, 3, and 4 in the source to become 2, 3 and 4 in the destination. Other affected siblings are displaced accordingly.

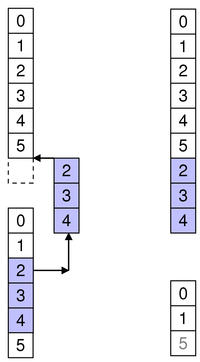

To append rows to another parent, move them to after the last row.For example, as shown in the diagram, we move three rows to a collection of 6 existing rows (ending in row 5), so destinationRow is 6:

beginMoveRows(sourceParent, 2, 4, destinationParent, 6);

This moves the target rows to the end of the target parent as 6, 7 and 8.

To move rows within the same parent, specify the row to move them to.For example, as shown in the diagram, we move one item from row 2 to row 0, so sourceFirst and sourceLast are 2 and destinationRow is 0.

Note that other rows may be displaced accordingly. Note also that when moving items within the same parent you should not attempt invalid or no-op moves. In the above example, item 2 is at row 2 before the move, so it can not be moved to row 2 (where it is already) or row 3 (no-op as row 3 means above row 3, where it is already)

To move rows within the same parent, specify the row to move them to.For example, as shown in the diagram, we move one item from row 2 to row 4, so sourceFirst and sourceLast are 2 and destinationRow is 4.

Note that other rows may be displaced accordingly.

See also
endMoveRows()
void QAbstractItemModel::beginRemoveColumns ( const QModelIndex parent,
int  first,
int  last
)
protected

Begins a column removal operation.

When reimplementing removeColumns() in a subclass, you must call this function before removing data from the model's underlying data store.

The parent index corresponds to the parent from which the new columns are removed; first and last are the column numbers of the first and last columns to be removed.

Specify the first and last column numbers for the span of columns you want to remove from an item in a model.For example, as shown in the diagram, we remove the three columns from column 4 to column 6, so first is 4 and last is 6:

Note
This function emits the columnsAboutToBeRemoved() signal which connected views (or proxies) must handle before the data is removed. Otherwise, the views may end up in an invalid state.
See also
endRemoveColumns()
void QAbstractItemModel::beginRemoveRows ( const QModelIndex parent,
int  first,
int  last
)
protected

Begins a row removal operation.

When reimplementing removeRows() in a subclass, you must call this function before removing data from the model's underlying data store.

The parent index corresponds to the parent from which the new rows are removed; first and last are the row numbers of the rows to be removed.

Specify the first and last row numbers for the span of rows you want to remove from an item in a model.For example, as shown in the diagram, we remove the two rows from row 2 to row 3, so first is 2 and last is 3:

Note
This method emits the rowsAboutToBeRemoved() signal which connected views (or proxies) must handle before the data is removed. Otherwise, the views may end up in an invalid state.
See also
endRemoveRows()
void QAbstractItemModel::beginResetModel ( )
protected

Begins a model reset operation. A reset operation resets the model to its current state in any attached views.

Note
Any views attached to this model will be reset as well.

When a model is reset it means that any previous data reported from the model is now invalid and has to be queried for again. This also means that the current item and any selected items will become invalid.

When a model radically changes its data it can sometimes be easier to just call this function rather than emit dataChanged() to inform other components when the underlying data source, or its structure, has changed.

You must call this function before resetting any internal data structures in your model or proxy model.

See also
modelAboutToBeReset(), modelReset(), endResetModel()
QModelIndex QAbstractItemModel::buddy ( const QModelIndex index) const
virtual

Returns a model index for the buddy of the item represented by index. When the user wants to edit an item, the view will call this function to check whether another item in the model should be edited instead. Then, the view will construct a delegate using the model index returned by the buddy item.

The default implementation of this function has each item as its own buddy.

Reimplemented in QSortFilterProxyModel, and QAbstractProxyModel.

bool QAbstractItemModel::canDropMimeData ( const QMimeData data,
Qt::DropAction  action,
int  row,
int  column,
const QModelIndex parent
) const
virtual

Returns true if a model can accept a drop of the data. This default implementation only checks if data has at least one format in the list of mimeTypes() and if action is among the model's supportedDropActions().

Reimplement this function in your custom model, if you want to test whether the data can be dropped at row, column, parent with action. If you do not need that test, it is not necessary to reimplement this function.

See also
dropMimeData(), model-view-using-dnd

Reimplemented in QAbstractProxyModel.

bool QAbstractItemModel::canFetchMore ( const QModelIndex parent) const
virtual

Returns true if there is more data available for parent, otherwise returns false.

The default implementation always returns false.

If canFetchMore() returns true, QAbstractItemView will call fetchMore(). However, the fetchMore() function is only called when the model is being populated incrementally.

See also
fetchMore()

Reimplemented in QSqlQueryModel, QSortFilterProxyModel, QFileSystemModel, and QAbstractProxyModel.

void QAbstractItemModel::changePersistentIndex ( const QModelIndex from,
const QModelIndex to
)
protected

Changes the QPersistentModelIndex that is equal to the given from model index to the given to model index.

If no persistent model index equal to the given from model index was found, nothing is changed.

See also
persistentIndexList(), changePersistentIndexList()
void QAbstractItemModel::changePersistentIndexList ( const QModelIndexList from,
const QModelIndexList to
)
protected

Changes the QPersistentModelIndexes that is equal to the indexes in the given from model index list to the given to model index list.

If no persistent model indexes equal to the indexes in the given from model index list was found, nothing is changed.

See also
persistentIndexList(), changePersistentIndex()
int QAbstractItemModel::columnCount ( const QModelIndex parent = QModelIndex()) const
pure virtual

Returns the number of columns for the children of the given parent.

In most subclasses, the number of columns is independent of the parent.

For example:

int DomModel::columnCount(const QModelIndex &/*parent*/) const
{
return 3;
}
Note
When implementing a table based model, columnCount() should return 0 when the parent is valid.
See also
rowCount()

Implemented in QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QDirModel, QIdentityProxyModel, and QSqlQueryModel.

void QAbstractItemModel::columnsAboutToBeInserted ( const QModelIndex parent,
int  first,
int  last
)
signal

This signal is emitted just before columns are inserted into the model. The new items will be positioned between first and last inclusive, under the given parent item.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
insertColumns(), beginInsertColumns()
void QAbstractItemModel::columnsAboutToBeMoved ( const QModelIndex sourceParent,
int  sourceStart,
int  sourceEnd,
const QModelIndex destinationParent,
int  destinationColumn
)
signal

This signal is emitted just before columns are moved within the model. The items that will be moved are those between sourceStart and sourceEnd inclusive, under the given sourceParent item. They will be moved to destinationParent starting at the column destinationColumn.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
beginMoveRows()
void QAbstractItemModel::columnsAboutToBeRemoved ( const QModelIndex parent,
int  first,
int  last
)
signal

This signal is emitted just before columns are removed from the model. The items to be removed are those between first and last inclusive, under the given parent item.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
removeColumns(), beginRemoveColumns()
void QAbstractItemModel::columnsInserted ( const QModelIndex parent,
int  first,
int  last
)
signal

This signal is emitted after columns have been inserted into the model. The new items are those between first and last inclusive, under the given parent item.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
insertColumns(), beginInsertColumns()
void QAbstractItemModel::columnsMoved ( const QModelIndex sourceParent,
int  sourceStart,
int  sourceEnd,
const QModelIndex destinationParent,
int  destinationColumn
)
signal

This signal is emitted after columns have been moved within the model. The items between sourceStart and sourceEnd inclusive, under the given sourceParent item have been moved to destinationParent starting at the column destinationColumn.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
beginMoveRows()
void QAbstractItemModel::columnsRemoved ( const QModelIndex parent,
int  first,
int  last
)
signal

This signal is emitted after columns have been removed from the model. The removed items are those between first and last inclusive, under the given parent item.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
removeColumns(), beginRemoveColumns()
QModelIndex QAbstractItemModel::createIndex ( int  row,
int  column,
quintptr  id
) const
inlineprotected

Creates a model index for the given row and column with the internal identifier, id.

This function provides a consistent interface that model subclasses must use to create model indexes.

See also
QModelIndex::internalId()
QModelIndex QAbstractItemModel::createIndex ( int  row,
int  column,
void *  data = nullptr
) const
inlineprotected

Creates a model index for the given row and column with the internal pointer ptr.

When using a QSortFilterProxyModel, its indexes have their own internal pointer. It is not advisable to access this internal pointer outside of the model. Use the data() function instead.

This method provides a consistent interface that model subclasses must use to create model indexes.

QVariant QAbstractItemModel::data ( const QModelIndex index,
int  role = Qt::DisplayRole
) const
pure virtual

Returns the data stored under the given role for the item referred to by the index.

Note
If there is no return value, return an invalid QVariant instead of nullptr .
See also
Qt::ItemDataRole, setData(), headerData()

Implemented in QAbstractProxyModel, QSqlQueryModel, QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QSqlRelationalTableModel, QDirModel, QSqlTableModel, and QStringListModel.

void QAbstractItemModel::dataChanged ( const QModelIndex topLeft,
const QModelIndex bottomRight,
const QVector< int > &  roles = QVector<int>()
)
signal

This signal is emitted whenever the data in an existing item changes. If the items are of the same parent, the affected ones are those between topLeft and bottomRight inclusive. If the items do not have the same parent, the behavior is undefined.

When reimplementing the setData() method this signal must be emitted explicitly.

See also
headerDataChanged(), setData(), layoutChanged()
bool QAbstractItemModel::dropMimeData ( const QMimeData data,
Qt::DropAction  action,
int  row,
int  column,
const QModelIndex parent
)
virtual

Handles the data supplied by a drag and drop operation that ended with the given action.

Returns true if the data and action can be handled by the model, otherwise returns false.

The specified row, column and parent indicate the location of an item in the model where the operation ended. It is the responsibility of the model to complete the action at the correct location.

For instance, a drop action on an item in a QTreeView can result in new items either being inserted as children of the item specified by row, column, and parent, or as siblings of the item.

When row and column are -1 it means that the dropped data should be considered as dropped directly on parent. Usually this will mean appending the data as child items of parent. If row and column are greater than or equal zero, it means that the drop occurred just before the specified row and column in the specified parent.

See also
supportedDropActions(), model-view-using-dnd

Reimplemented in QAbstractListModel, QAbstractTableModel, QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QAbstractProxyModel, QDirModel, and QIdentityProxyModel.

void QAbstractItemModel::endInsertColumns ( )
protected

Ends a column insertion operation.

When reimplementing insertColumns() in a subclass, you must call this function after inserting data into the model's underlying data store.

See also
beginInsertColumns()
void QAbstractItemModel::endInsertRows ( )
protected

Ends a row insertion operation.

When reimplementing insertRows() in a subclass, you must call this function after inserting data into the model's underlying data store.

See also
beginInsertRows()
void QAbstractItemModel::endMoveColumns ( )
protected

Ends a column move operation.

When implementing a subclass, you must call this function after moving data within the model's underlying data store.

layoutChanged is emitted by this method for compatibility reasons.

See also
beginMoveColumns()
void QAbstractItemModel::endMoveRows ( )
protected

Ends a row move operation.

When implementing a subclass, you must call this function after moving data within the model's underlying data store.

layoutChanged is emitted by this method for compatibility reasons.

See also
beginMoveRows()
void QAbstractItemModel::endRemoveColumns ( )
protected

Ends a column removal operation.

When reimplementing removeColumns() in a subclass, you must call this function after removing data from the model's underlying data store.

See also
beginRemoveColumns()
void QAbstractItemModel::endRemoveRows ( )
protected

Ends a row removal operation.

When reimplementing removeRows() in a subclass, you must call this function after removing data from the model's underlying data store.

See also
beginRemoveRows()
void QAbstractItemModel::endResetModel ( )
protected

Completes a model reset operation.

You must call this function after resetting any internal data structure in your model or proxy model.

See also
beginResetModel()
void QAbstractItemModel::fetchMore ( const QModelIndex parent)
virtual

Fetches any available data for the items with the parent specified by the parent index.

Reimplement this if you are populating your model incrementally.

The default implementation does nothing.

See also
canFetchMore()

Reimplemented in QSqlQueryModel, QSortFilterProxyModel, QFileSystemModel, and QAbstractProxyModel.

Qt::ItemFlags QAbstractItemModel::flags ( const QModelIndex index) const
virtual

Returns the item flags for the given index.

The base class implementation returns a combination of flags that enables the item (ItemIsEnabled) and allows it to be selected (ItemIsSelectable).

See also
Qt::ItemFlags

Reimplemented in QAbstractListModel, QAbstractTableModel, QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QDirModel, QAbstractProxyModel, QSqlTableModel, and QStringListModel.

bool QAbstractItemModel::hasChildren ( const QModelIndex parent = QModelIndex()) const
virtual

Returns true if parent has any children, otherwise returns false.

Use rowCount() on the parent to find out the number of children.

See also
parent(), index()

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QAbstractProxyModel, and QDirModel.

bool QAbstractItemModel::hasIndex ( int  row,
int  column,
const QModelIndex parent = QModelIndex()
) const

Returns true if the model returns a valid QModelIndex for row and column with parent, otherwise returns false.

QVariant QAbstractItemModel::headerData ( int  section,
Qt::Orientation  orientation,
int  role = Qt::DisplayRole
) const
virtual

Returns the data for the given role and section in the header with the specified orientation.

For horizontal headers, the section number corresponds to the column number. Similarly, for vertical headers, the section number corresponds to the row number.

See also
Qt::ItemDataRole, setHeaderData(), QHeaderView

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QDirModel, QSqlTableModel, QIdentityProxyModel, QSqlQueryModel, and QAbstractProxyModel.

void QAbstractItemModel::headerDataChanged ( Qt::Orientation  orientation,
int  first,
int  last
)
signal

This signal is emitted whenever a header is changed. The orientation indicates whether the horizontal or vertical header has changed. The sections in the header from the first to the last need to be updated.

When reimplementing the setHeaderData() function, this signal must be emitted explicitly.

If you are changing the number of columns or rows you do not need to emit this signal, but use the begin/end functions (refer to the section on subclassing in the QAbstractItemModel class description for details).

See also
headerData(), setHeaderData(), dataChanged()
QModelIndex QAbstractItemModel::index ( int  row,
int  column,
const QModelIndex parent = QModelIndex()
) const
pure virtual

Returns the index of the item in the model specified by the given row, column and parent index.

When reimplementing this function in a subclass, call createIndex() to generate model indexes that other components can use to refer to items in your model.

See also
createIndex()

Implemented in QAbstractListModel, QAbstractTableModel, QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QDirModel, and QIdentityProxyModel.

bool QAbstractItemModel::insertColumn ( int  column,
const QModelIndex parent = QModelIndex()
)
inline

Inserts a single column before the given column in the child items of the parent specified.

Returns true if the column is inserted, otherwise returns false.

See also
insertColumns(), insertRow(), removeColumn()
bool QAbstractItemModel::insertColumns ( int  column,
int  count,
const QModelIndex parent = QModelIndex()
)
virtual

On models that support this, inserts count new columns into the model before the given column. The items in each new column will be children of the item represented by the parent model index.

If column is 0, the columns are prepended to any existing columns.

If column is columnCount(), the columns are appended to any existing columns.

If parent has no children, a single row with count columns is inserted.

Returns true if the columns were successfully inserted, otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support insertions. Alternatively, you can provide your own API for altering the data.

See also
insertRows(), removeColumns(), beginInsertColumns(), endInsertColumns()

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QIdentityProxyModel, and QSqlQueryModel.

bool QAbstractItemModel::insertRow ( int  row,
const QModelIndex parent = QModelIndex()
)
inline
Note
The base class implementation of this function does nothing and returns false.

Inserts a single row before the given row in the child items of the parent specified.

Returns true if the row is inserted, otherwise returns false.

See also
insertRows(), insertColumn(), removeRow()
bool QAbstractItemModel::insertRows ( int  row,
int  count,
const QModelIndex parent = QModelIndex()
)
virtual
Note
The base class implementation of this function does nothing and returns false.

On models that support this, inserts count rows into the model before the given row. Items in the new row will be children of the item represented by the parent model index.

If row is 0, the rows are prepended to any existing rows in the parent.

If row is rowCount(), the rows are appended to any existing rows in the parent.

If parent has no children, a single column with count rows is inserted.

Returns true if the rows were successfully inserted, otherwise returns false.

If you implement your own model, you can reimplement this function if you want to support insertions. Alternatively, you can provide your own API for altering the data. In either case, you will need to call beginInsertRows() and endInsertRows() to notify other components that the model has changed.

See also
insertColumns(), removeRows(), beginInsertRows(), endInsertRows()

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QSqlTableModel, QIdentityProxyModel, and QStringListModel.

QMap< int, QVariant > QAbstractItemModel::itemData ( const QModelIndex index) const
virtual

Returns a map with values for all predefined roles in the model for the item at the given index.

Reimplement this function if you want to extend the default behavior of this function to include custom roles in the map.

See also
setItemData(), Qt::ItemDataRole, data()

Reimplemented in QAbstractProxyModel, and QStandardItemModel.

void QAbstractItemModel::layoutAboutToBeChanged ( const QList< QPersistentModelIndex > &  parents = QList<QPersistentModelIndex>(),
QAbstractItemModel::LayoutChangeHint  hint = QAbstractItemModel::NoLayoutChangeHint
)
signal

This signal is emitted just before the layout of a model is changed. Components connected to this signal use it to adapt to changes in the model's layout.

Subclasses should update any persistent model indexes after emitting layoutAboutToBeChanged().

See also
layoutChanged(), changePersistentIndex()
void QAbstractItemModel::layoutChanged ( const QList< QPersistentModelIndex > &  parents = QList<QPersistentModelIndex>(),
QAbstractItemModel::LayoutChangeHint  hint = QAbstractItemModel::NoLayoutChangeHint
)
signal

This signal is emitted whenever the layout of items exposed by the model has changed; for example, when the model has been sorted. When this signal is received by a view, it should update the layout of items to reflect this change.

When subclassing QAbstractItemModel or QAbstractProxyModel, ensure that you emit layoutAboutToBeChanged() before changing the order of items or altering the structure of the data you expose to views, and emit layoutChanged() after changing the layout.

Subclasses should update any persistent model indexes before emitting layoutChanged(). In other words, when the structure changes:

See also
layoutAboutToBeChanged(), dataChanged(), headerDataChanged(), modelReset(), changePersistentIndex()
QModelIndexList QAbstractItemModel::match ( const QModelIndex start,
int  role,
const QVariant value,
int  hits = 1,
Qt::MatchFlags  flags = Qt::MatchFlags(Qt::MatchStartsWith|Qt::MatchWrap)
) const
virtual

Returns a list of indexes for the items in the column of the start index where data stored under the given role matches the specified value. The way the search is performed is defined by the flags given. The list that is returned may be empty.

The search begins from the start index and continues until the number of matching data items equals hits, the search reaches the last row, or the search reaches start again, depending on whether MatchWrap is specified in flags. If you want to search for all matching items, use hits = -1.

By default this function will perform a wrapping, string-based comparison on all items, searching for items that begin with the search term specified by value.

Note
The default implementation of this function only searches columns. Reimplement this function to include a different search behavior.

Reimplemented in QSortFilterProxyModel, and QIdentityProxyModel.

QMimeData * QAbstractItemModel::mimeData ( const QModelIndexList indexes) const
virtual

Returns an object that contains serialized items of data corresponding to the list of indexes specified. The formats used to describe the encoded data is obtained from the mimeTypes() function.

If the list of indexes is empty, or there are no supported MIME types, 0 is returned rather than a serialized empty list.

See also
mimeTypes(), dropMimeData()

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QDirModel, and QAbstractProxyModel.

QStringList QAbstractItemModel::mimeTypes ( ) const
virtual

Returns a list of MIME types that can be used to describe a list of model indexes.

See also
mimeData()

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QAbstractProxyModel, and QDirModel.

void QAbstractItemModel::modelAboutToBeReset ( )
signal

This signal is emitted when beginResetModel() is called, before the model's internal state (for example all persistent model indexes) has been invalidated.

See also
beginResetModel(), modelReset()
void QAbstractItemModel::modelReset ( )
signal

This signal is emitted when endResetModel() is called, after the model's internal state (for example, all persistent model indexes) has been invalidated.

See also
endResetModel(), modelAboutToBeReset()
bool QAbstractItemModel::moveColumn ( const QModelIndex sourceParent,
int  sourceColumn,
const QModelIndex destinationParent,
int  destinationChild
)
inline

On models that support this, moves sourceColumn from sourceParent to destinationChild under destinationParent. Returns true if the columns were successfully moved, otherwise returns false.

See also
moveColumns(), moveRow()
bool QAbstractItemModel::moveColumns ( const QModelIndex sourceParent,
int  sourceColumn,
int  count,
const QModelIndex destinationParent,
int  destinationChild
)
virtual

On models that support this, moves count columns starting with the given sourceColumn under parent sourceParent to column destinationChild under parent destinationParent. Returns true if the columns were successfully moved, otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support moving. Alternatively, you can provide your own API for altering the data.

See also
beginMoveColumns(), endMoveColumns()
bool QAbstractItemModel::moveRow ( const QModelIndex sourceParent,
int  sourceRow,
const QModelIndex destinationParent,
int  destinationChild
)
inline

On models that support this, moves sourceRow from sourceParent to destinationChild under destinationParent.

Returns true if the rows were successfully moved, otherwise returns false.

See also
moveRows(), moveColumn()
bool QAbstractItemModel::moveRows ( const QModelIndex sourceParent,
int  sourceRow,
int  count,
const QModelIndex destinationParent,
int  destinationChild
)
virtual

On models that support this, moves count rows starting with the given sourceRow under parent sourceParent to row destinationChild under parent destinationParent. Returns true if the rows were successfully moved, otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support moving. Alternatively, you can provide your own API for altering the data.

See also
beginMoveRows(), endMoveRows()
QObject * QObject::parent ( ) const
using

Returns a pointer to the parent object.

See also
setParent(), children()
QModelIndex QAbstractItemModel::parent ( const QModelIndex index) const
pure virtual

Returns the parent of the model item with the given index. If the item has no parent an invalid QModelIndex is returned.

A common convention used in models that expose tree data structures is that only items in the first column have children. For that case, when reimplementing this function in a subclass the column of the returned QModelIndex would be 0.

When reimplementing this function in a subclass, be careful to avoid calling QModelIndex member functions, such as QModelIndex::parent(), since indexes belonging to your model will simply call your implementation, leading to infinite recursion.

See also
createIndex()

Implemented in QFileSystemModel, QStandardItemModel, QSortFilterProxyModel, QDirModel, and QIdentityProxyModel.

QModelIndexList QAbstractItemModel::persistentIndexList ( ) const
protected

Returns the list of indexes stored as persistent indexes in the model.

bool QAbstractItemModel::removeColumn ( int  column,
const QModelIndex parent = QModelIndex()
)
inline

Removes the given column from the child items of the parent specified.

Returns true if the column is removed, otherwise returns false.

See also
removeColumns(), removeRow(), insertColumn()
bool QAbstractItemModel::removeColumns ( int  column,
int  count,
const QModelIndex parent = QModelIndex()
)
virtual

On models that support this, removes count columns starting with the given column under parent parent from the model. Returns true if the columns were successfully removed, otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support removing. Alternatively, you can provide your own API for altering the data.

See also
removeColumn(), removeRows(), insertColumns(), beginRemoveColumns(), endRemoveColumns()

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QSqlTableModel, QSqlRelationalTableModel, QIdentityProxyModel, and QSqlQueryModel.

bool QAbstractItemModel::removeRow ( int  row,
const QModelIndex parent = QModelIndex()
)
inline

Removes the given row from the child items of the parent specified. Returns true if the row is removed, otherwise returns false.

This is a convenience function that calls removeRows(). The QAbstractItemModel implementation of removeRows() does nothing.

See also
removeRows(), removeColumn(), insertRow()
bool QAbstractItemModel::removeRows ( int  row,
int  count,
const QModelIndex parent = QModelIndex()
)
virtual

On models that support this, removes count rows starting with the given row under parent parent from the model. Returns true if the rows were successfully removed, otherwise returns false.

The base class implementation does nothing and returns false.

If you implement your own model, you can reimplement this function if you want to support removing. Alternatively, you can provide your own API for altering the data.

See also
removeRow(), removeColumns(), insertColumns(), beginRemoveRows(), endRemoveRows()

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QSqlTableModel, QIdentityProxyModel, and QStringListModel.

void QAbstractItemModel::resetInternalData ( )
protectedslot

This slot is called just after the internal data of a model is cleared while it is being reset. This slot is provided the convenience of subclasses of concrete proxy models, such as subclasses of QSortFilterProxyModel which maintain extra data.

class CustomDataProxy : public QSortFilterProxyModel
{
CS_OBJECT(CustomDataProxy)
public:
CustomDataProxy(QObject *parent)
{ }
...
QVariant data(const QModelIndex &index, int role)
{
if (role != Qt::BackgroundRole)
return QSortFilterProxyModel::data(index, role);
if (m_customData.contains(index.row())) {
return m_customData.value(index.row());
}
return QSortFilterProxyModel::data(index, role);
}
private:
CS_SLOT_1(Private, void resetInternalData() { m_customData.clear(); })
CS_SLOT_2(resetInternalData)
QHash<int, QVariant> m_customData;
};
See also
modelAboutToBeReset(), modelReset()
void QAbstractItemModel::revert ( )
slot

Lets the model know that it should discard cached information. This function is typically used for row editing.

See also
submit()
QMultiHash< int, QString > QAbstractItemModel::roleNames ( ) const
virtual

Returns the model's role names.

See also
setRoleNames()
int QAbstractItemModel::rowCount ( const QModelIndex parent = QModelIndex()) const
pure virtual

Returns the number of rows under the given parent. When the parent is valid it means that rowCount is returning the number of children of parent.

Note
When implementing a table based model, rowCount() should return 0 when the parent is valid.
See also
columnCount()

Implemented in QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QSqlTableModel, QDirModel, QIdentityProxyModel, QStringListModel, and QSqlQueryModel.

void QAbstractItemModel::rowsAboutToBeInserted ( const QModelIndex parent,
int  first,
int  last
)
signal

This signal is emitted just before rows are inserted into the model. The new items will be positioned between first and last inclusive, under the given parent item.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
insertRows(), beginInsertRows()
void QAbstractItemModel::rowsAboutToBeMoved ( const QModelIndex sourceParent,
int  sourceStart,
int  sourceEnd,
const QModelIndex destinationParent,
int  destinationRow
)
signal

This signal is emitted just before rows are moved within the model. The items that will be moved are those between sourceStart and sourceEnd inclusive, under the given sourceParent item. They will be moved to destinationParent starting at the row destinationRow.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
beginMoveRows()
void QAbstractItemModel::rowsAboutToBeRemoved ( const QModelIndex parent,
int  first,
int  last
)
signal

This signal is emitted just before rows are removed from the model. The items that will be removed are those between first and last inclusive, under the given parent item.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
removeRows(), beginRemoveRows()
void QAbstractItemModel::rowsInserted ( const QModelIndex parent,
int  first,
int  last
)
signal

This signal is emitted after rows have been inserted into the model. The new items are those between first and last inclusive, under the given parent item.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
insertRows(), beginInsertRows()
void QAbstractItemModel::rowsMoved ( const QModelIndex sourceParent,
int  sourceStart,
int  sourceEnd,
const QModelIndex destinationParent,
int  destinationRow
)
signal

This signal is emitted after rows have been moved within the model. The items between sourceStart and sourceEnd inclusive, under the given sourceParent item have been moved to destinationParent starting at the row destinationRow.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
beginMoveRows()
void QAbstractItemModel::rowsRemoved ( const QModelIndex parent,
int  first,
int  last
)
signal

This signal is emitted after rows have been removed from the model. The removed items are those between first and last inclusive, under the given parent item.

Note
Components connected to this signal use it to adapt to changes in the model's dimensions. It can only be emitted by the QAbstractItemModel implementation, and can not be explicitly emitted in subclass code.
See also
removeRows(), beginRemoveRows()
bool QAbstractItemModel::setData ( const QModelIndex index,
const QVariant value,
int  role = Qt::EditRole
)
virtual

Sets the role data for the item at index to value. Returns true if successful, otherwise returns false.

The dataChanged() signal should be emitted if the data was successfully set. The base class implementation returns false. This function and data() must be reimplemented for editable models.

See also
Qt::ItemDataRole, data(), itemData()

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QSqlRelationalTableModel, QDirModel, QAbstractProxyModel, QSqlTableModel, and QStringListModel.

bool QAbstractItemModel::setHeaderData ( int  section,
Qt::Orientation  orientation,
const QVariant value,
int  role = Qt::EditRole
)
virtual

Sets the data for the given role and section in the header with the specified orientation to the value supplied. Returns true if the header's data was updated, otherwise returns false.

When reimplementing this function the headerDataChanged() signal must be emitted explicitly.

See also
Qt::ItemDataRole, headerData()

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QAbstractProxyModel, and QSqlQueryModel.

bool QAbstractItemModel::setItemData ( const QModelIndex index,
const QMap< int, QVariant > &  roles
)
virtual

Sets the role data for the item at index to the associated value in roles, for every Qt::ItemDataRole. Returns true if successful, otherwise returns false. Roles that are not in roles will not be modified.

See also
setData(), data(), itemData()

Reimplemented in QStandardItemModel, and QAbstractProxyModel.

QModelIndex QAbstractItemModel::sibling ( int  row,
int  column,
const QModelIndex index
) const
virtual

Returns the sibling at row and column for the item at index, or an invalid QModelIndex if there is no sibling at that location. The sibling() is just a convenience function that finds the item's parent, and uses it to retrieve the index of the child item in the specified row and column.

See also
index(), QModelIndex::row(), QModelIndex::column()

Reimplemented in QAbstractListModel, QAbstractTableModel, QSortFilterProxyModel, QAbstractProxyModel, QIdentityProxyModel, and QStringListModel.

void QAbstractItemModel::sort ( int  column,
Qt::SortOrder  order = Qt::AscendingOrder
)
virtual

Sorts the model by column in the given order.

The base class implementation does nothing.

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QDirModel, QAbstractProxyModel, QStringListModel, and QSqlTableModel.

QSize QAbstractItemModel::span ( const QModelIndex index) const
virtual

Returns the row and column span of the item represented by index.

Note
Currently, span is not used.

Reimplemented in QSortFilterProxyModel, and QAbstractProxyModel.

bool QAbstractItemModel::submit ( )
slot

Lets the model know that it should submit cached information to permanent storage. This function is typically used for row editing. Returns true if there is no error, otherwise returns false.

See also
revert()
Qt::DropActions QAbstractItemModel::supportedDragActions ( ) const
virtual

Returns the actions supported by the data in this model. The default implementation returns supportedDropActions() unless specific values have been set with setSupportedDragActions().

This methods is used by QAbstractItemView::startDrag() as the default values when a drag occurs.

See also
setSupportedDragActions(), Qt::DropActions, model-view-using-dnd

Reimplemented in QAbstractProxyModel.

Qt::DropActions QAbstractItemModel::supportedDropActions ( ) const
virtual

Returns the drop actions supported by this model. The default implementation returns Qt::CopyAction. Reimplement this function if you wish to support additional actions. You must also reimplement the dropMimeData() function to handle the additional operations.

See also
dropMimeData(), Qt::DropActions, model-view-using-dnd

Reimplemented in QStandardItemModel, QSortFilterProxyModel, QFileSystemModel, QAbstractProxyModel, QDirModel, and QStringListModel.
