QAbstractTableModel Class Reference

The QAbstractTableModel class provides an abstract model that can be subclassed to create table models. More...

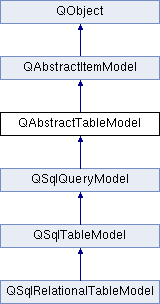

Inheritance diagram for QAbstractTableModel:
QAbstractItemModel QObject QSqlQueryModel QSqlTableModel QSqlRelationalTableModel

Public Methods

 QAbstractTableModel (QObject *parent=nullptr)

 ~QAbstractTableModel ()

bool dropMimeData (const QMimeData *data, Qt::DropAction action, int row, int column, const QModelIndex &parent) override

Qt::ItemFlags flags (const QModelIndex &index) const override

QModelIndex index (int row, int column, const QModelIndex &parent=QModelIndex ()) const override

QObjectparent () const

QModelIndex sibling (int row, int column, const QModelIndex &index) const override

- Public Methods inherited from QAbstractItemModel
 QAbstractItemModel (QObject *parent=nullptr)

virtual ~QAbstractItemModel ()

virtual QModelIndex buddy (const QModelIndex &index) const

virtual bool canDropMimeData (const QMimeData *data, Qt::DropAction action, int row, int column, const QModelIndex &parent) const

virtual bool canFetchMore (const QModelIndex &parent) const

virtual int columnCount (const QModelIndex &parent=QModelIndex ()) const = 0

virtual QVariant data (const QModelIndex &index, int role=Qt::DisplayRole) const = 0

virtual void fetchMore (const QModelIndex &parent)

bool hasIndex (int row, int column, const QModelIndex &parent=QModelIndex ()) const

virtual QVariant headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const

bool insertColumn (int column, const QModelIndex &parent=QModelIndex ())

virtual bool insertColumns (int column, int count, const QModelIndex &parent=QModelIndex ())

bool insertRow (int row, const QModelIndex &parent=QModelIndex ())

virtual bool insertRows (int row, int count, const QModelIndex &parent=QModelIndex ())

virtual QMap< int, QVariantitemData (const QModelIndex &index) const

virtual QModelIndexList match (const QModelIndex &start, int role, const QVariant &value, int hits=1, Qt::MatchFlags flags=Qt::MatchFlags (Qt::MatchStartsWith|Qt::MatchWrap)) const

virtual QMimeDatamimeData (const QModelIndexList &indexes) const

virtual QStringList mimeTypes () const

bool moveColumn (const QModelIndex &sourceParent, int sourceColumn, const QModelIndex &destinationParent, int destinationChild)

virtual bool moveColumns (const QModelIndex &sourceParent, int sourceColumn, int count, const QModelIndex &destinationParent, int destinationChild)

bool moveRow (const QModelIndex &sourceParent, int sourceRow, const QModelIndex &destinationParent, int destinationChild)

virtual bool moveRows (const QModelIndex &sourceParent, int sourceRow, int count, const QModelIndex &destinationParent, int destinationChild)

QObjectparent () const

bool removeColumn (int column, const QModelIndex &parent=QModelIndex ())

virtual bool removeColumns (int column, int count, const QModelIndex &parent=QModelIndex ())

bool removeRow (int row, const QModelIndex &parent=QModelIndex ())

virtual bool removeRows (int row, int count, const QModelIndex &parent=QModelIndex ())

virtual QMultiHash< int, QStringroleNames () const

virtual int rowCount (const QModelIndex &parent=QModelIndex ()) const = 0

virtual bool setData (const QModelIndex &index, const QVariant &value, int role=Qt::EditRole)

virtual bool setHeaderData (int section, Qt::Orientation orientation, const QVariant &value, int role=Qt::EditRole)

virtual bool setItemData (const QModelIndex &index, const QMap< int, QVariant > &roles)

virtual void sort (int column, Qt::SortOrder order=Qt::AscendingOrder)

virtual QSize span (const QModelIndex &index) const

virtual Qt::DropActions supportedDragActions () const

virtual Qt::DropActions supportedDropActions () const

- Public Methods inherited from QObject
 QObject (QObject *parent=nullptr)

 ~QObject ()

bool blockSignals (bool block)

const QList< QObject * > & children () const

bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void dumpObjectInfo ()

void dumpObjectTree ()

QList< QStringdynamicPropertyNames () const

virtual bool event (QEvent *event)

virtual bool eventFilter (QObject *watched, QEvent *event)

template<typename T >
findChild (const QString &childName=QString ()) const

template<class T >
QList< T > findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T > findChildren (const QString &objName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool inherits (const QString &className) const

void installEventFilter (QObject *filterObj)

bool isWidgetType () const

bool isWindowType () const

void killTimer (int id)

const QMetaObjectmetaObject () const

void moveToThread (QThread *targetThread)

QString objectName () const

QObject * parent () const

template<class T = QVariant>
property (const QString &name) const

void removeEventFilter (QObject *obj)

void setObjectName (const QString &name)

void setParent (QObject *parent)

bool setProperty (const QString &name, const QVariant &value)

bool signalsBlocked () const

int startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThreadthread () const


Additional Inherited Members

- Public Signals inherited from QAbstractItemModel
void columnsAboutToBeInserted (const QModelIndex &parent, int first, int last)

void columnsAboutToBeMoved (const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationColumn)

void columnsAboutToBeRemoved (const QModelIndex &parent, int first, int last)

void columnsInserted (const QModelIndex &parent, int first, int last)

void columnsMoved (const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationColumn)

void columnsRemoved (const QModelIndex &parent, int first, int last)

void dataChanged (const QModelIndex &topLeft, const QModelIndex &bottomRight, const QVector< int > &roles=QVector< int >())

void headerDataChanged (Qt::Orientation orientation, int first, int last)

void layoutAboutToBeChanged (const QList< QPersistentModelIndex > &parents=QList< QPersistentModelIndex >(), QAbstractItemModel::LayoutChangeHint hint=QAbstractItemModel::NoLayoutChangeHint)

void layoutChanged (const QList< QPersistentModelIndex > &parents=QList< QPersistentModelIndex >(), QAbstractItemModel::LayoutChangeHint hint=QAbstractItemModel::NoLayoutChangeHint)

void modelAboutToBeReset ()

void modelReset ()

void rowsAboutToBeInserted (const QModelIndex &parent, int first, int last)

void rowsAboutToBeMoved (const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationRow)

void rowsAboutToBeRemoved (const QModelIndex &parent, int first, int last)

void rowsInserted (const QModelIndex &parent, int first, int last)

void rowsMoved (const QModelIndex &sourceParent, int sourceStart, int sourceEnd, const QModelIndex &destinationParent, int destinationRow)

void rowsRemoved (const QModelIndex &parent, int first, int last)

- Public Signals inherited from QObject
void destroyed (QObject *obj=nullptr)

void objectNameChanged (const QString &objectName)

- Public Slots inherited from QAbstractItemModel
virtual void revert ()

virtual bool submit ()

- Public Slots inherited from QObject
void deleteLater ()

- Static Public Methods inherited from QObject
static bool connect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool connect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool disconnect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObjectstaticMetaObject ()

static QString tr (const char *text, const char *comment=nullptr, std::optional< int > numArg=std::optional< int >())

- Protected Slots inherited from QAbstractItemModel
void resetInternalData ()

- Protected Methods inherited from QAbstractItemModel
void beginInsertColumns (const QModelIndex &parent, int first, int last)

void beginInsertRows (const QModelIndex &parent, int first, int last)

bool beginMoveColumns (const QModelIndex &sourceParent, int sourceFirst, int sourceLast, const QModelIndex &destinationParent, int destinationColumn)

bool beginMoveRows (const QModelIndex &sourceParent, int sourceFirst, int sourceLast, const QModelIndex &destinationParent, int destinationRow)

void beginRemoveColumns (const QModelIndex &parent, int first, int last)

void beginRemoveRows (const QModelIndex &parent, int first, int last)

void beginResetModel ()

void changePersistentIndex (const QModelIndex &from, const QModelIndex &to)

void changePersistentIndexList (const QModelIndexList &from, const QModelIndexList &to)

QModelIndex createIndex (int row, int column, quintptr id) const

QModelIndex createIndex (int row, int column, void *data=nullptr) const

void endInsertColumns ()

void endInsertRows ()

void endMoveColumns ()

void endMoveRows ()

void endRemoveColumns ()

void endRemoveRows ()

void endResetModel ()

QModelIndexList persistentIndexList () const

- Protected Methods inherited from QObject
virtual void childEvent (QChildEvent *event)

virtual void connectNotify (const QMetaMethod &signalMethod) const

virtual void customEvent (QEvent *event)

virtual void disconnectNotify (const QMetaMethod &signalMethod) const

bool isSignalConnected (const QMetaMethod &signalMethod) const

int receivers (const QString &signal) const

QObject * sender () const

int senderSignalIndex () const

virtual void timerEvent (QTimerEvent *event)

- Properties inherited from QObject
 objectName


Detailed Description

The QAbstractTableModel class provides an abstract model that can be subclassed to create table models.

QAbstractTableModel provides a standard interface for models that represent their data as a two-dimensional array of items. It is not used directly, but must be subclassed.

Since the model provides a more specialized interface than QAbstractItemModel, it is not suitable for use with tree views, although it can be used to provide data to a QListView. If you need to represent a simple list of items, and only need a model to contain a single column of data, subclassing the QAbstractListModel may be more appropriate.

The rowCount() and columnCount() functions return the dimensions of the table. To retrieve a model index corresponding to an item in the model, use index() and provide only the row and column numbers.

Subclassing

When subclassing QAbstractTableModel, you must implement rowCount(), columnCount(), and data(). Default implementations of the index() and parent() functions are provided by QAbstractTableModel. Well behaved models will also implement headerData().

Editable models need to implement setData(), and implement flags() to return a value containing Qt::ItemIsEditable.

Models that provide interfaces to resizable data structures can provide implementations of insertRows(), removeRows(), insertColumns(), and removeColumns(). When implementing these functions, it is important to call the appropriate functions so that all connected views are aware of any changes:

Note
Some general guidelines for subclassing models are available in the Model Subclassing Reference.
See also
View Classes, QAbstractItemModel, QAbstractListModel

Constructor & Destructor Documentation

QAbstractTableModel::QAbstractTableModel ( QObject parent = nullptr)
explicit

Constructs an abstract table model for the given parent.

QAbstractTableModel::~QAbstractTableModel ( )

Destroys the abstract table model.

Method Documentation

bool QAbstractTableModel::dropMimeData ( const QMimeData data,
Qt::DropAction  action,
int  row,
int  column,
const QModelIndex parent
)
overridevirtual

Handles the data supplied by a drag and drop operation that ended with the given action.

Returns true if the data and action can be handled by the model, otherwise returns false.

The specified row, column and parent indicate the location of an item in the model where the operation ended. It is the responsibility of the model to complete the action at the correct location.

For instance, a drop action on an item in a QTreeView can result in new items either being inserted as children of the item specified by row, column, and parent, or as siblings of the item.

When row and column are -1 it means that the dropped data should be considered as dropped directly on parent. Usually this will mean appending the data as child items of parent. If row and column are greater than or equal zero, it means that the drop occurred just before the specified row and column in the specified parent.

See also
supportedDropActions(), model-view-using-dnd

Reimplemented from QAbstractItemModel.

Qt::ItemFlags QAbstractTableModel::flags ( const QModelIndex index) const
overridevirtual

Returns the item flags for the given index.

The base class implementation returns a combination of flags that enables the item (ItemIsEnabled) and allows it to be selected (ItemIsSelectable).

See also
Qt::ItemFlags

Reimplemented from QAbstractItemModel.

Reimplemented in QSqlTableModel.

QModelIndex QAbstractTableModel::index ( int  row,
int  column,
const QModelIndex parent = QModelIndex()
) const
overridevirtual

Returns the index of the data in row and column with parent.

See also
parent()

Implements QAbstractItemModel.

QObject * QObject::parent ( ) const
using

Returns a pointer to the parent object.

See also
setParent(), children()
QModelIndex QAbstractTableModel::sibling ( int  row,
int  column,
const QModelIndex index
) const
overridevirtual

Returns the sibling at row and column for the item at index, or an invalid QModelIndex if there is no sibling at that location. The sibling() is just a convenience function that finds the item's parent, and uses it to retrieve the index of the child item in the specified row and column.

See also
index(), QModelIndex::row(), QModelIndex::column()

Reimplemented from QAbstractItemModel.
