The QBrush class defines the fill pattern of shapes drawn by QPainter. More...

Public Methods
	QBrush ()

	QBrush (const QBrush &other)

	QBrush (const QColor &color, const QPixmap &pixmap)

	QBrush (const QColor &color, Qt::BrushStyle style=Qt::SolidPattern)

	QBrush (const QGradient &gradient)

	QBrush (const QImage &image)

	QBrush (const QPixmap &pixmap)

	QBrush (Qt::BrushStyle style)

	QBrush (Qt::GlobalColor color, const QPixmap &pixmap)

	QBrush (Qt::GlobalColor color, Qt::BrushStyle style=Qt::SolidPattern)

	~QBrush ()

const QColor &	color () const

const QGradient *	gradient () const

bool	isOpaque () const

const QMatrix &	matrix () const

	operator QVariant () const

bool	operator!= (const QBrush &brush) const

QBrush &	operator= (const QBrush &other)

QBrush &	operator= (QBrush &&other)

bool	operator== (const QBrush &brush) const

void	setColor (const QColor &color)

void	setColor (Qt::GlobalColor color)

void	setMatrix (const QMatrix &matrix)

void	setStyle (Qt::BrushStyle style)

void	setTexture (const QPixmap &pixmap)

void	setTextureImage (const QImage &image)

void	setTransform (const QTransform &transform)

Qt::BrushStyle	style () const

void	swap (QBrush &other)

QPixmap	texture () const

QImage	textureImage () const

QTransform	transform () const

Friends
class	QPainter

class	QRasterPaintEngine

Related Functions
These are not member functions
QDataStream &	operator<< (QDataStream &stream, const QBrush &brush)

QDataStream &	operator>> (QDataStream &stream, QBrush &brush)

Detailed Description

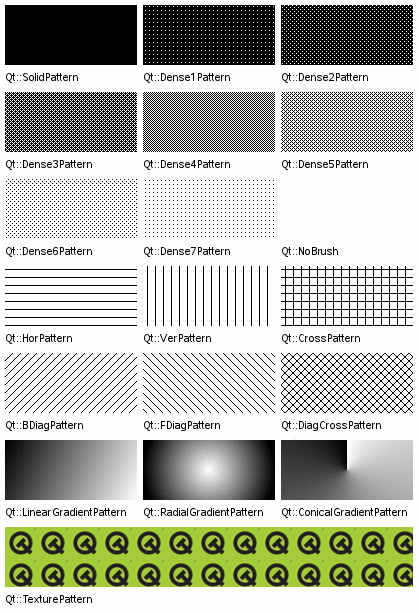

The QBrush class defines the fill pattern of shapes drawn by QPainter. A brush has a style, a color, a gradient and a texture. The brush style() defines the fill pattern using the Qt::BrushStyle enum. The default brush style is Qt::NoBrush (depending on how you construct a brush). This style tells the painter to not fill shapes. The standard style for filling is Qt::SolidPattern. The style can be set when the brush is created using the appropriate constructor, and in addition the setStyle() function provides means for altering the style once the brush is constructed.

The brush color() defines the color of the fill pattern. The color can either be one of the CopperSpice predefined colors, Qt::GlobalColor, or any other custom QColor. The currently set color can be retrieved and changed using the color() and setColor() methods, respectively.

The gradient() defines the gradient fill used when the current style is either Qt::LinearGradientPattern, Qt::RadialGradientPattern or Qt::ConicalGradientPattern. Gradient brushes are created by giving a QGradient as a constructor argument when creating the QBrush. CopperSpice provides three different gradients: QLinearGradient, QConicalGradient, and QRadialGradient, all of which inherit QGradient.

QRadialGradient gradient(50, 50, 50, 50, 50);
gradient.setColorAt(0, QColor::fromRgbF(0, 1, 0, 1));
gradient.setColorAt(1, QColor::fromRgbF(0, 0, 0, 0));

QBrush brush(gradient);

The texture() defines the pixmap used when the current style is Qt::TexturePattern. You can create a brush with a texture by providing the pixmap when the brush is created or by using setTexture(). Applying setTexture() makes style() == Qt::TexturePattern, regardless of previous style settings. Calling setColor() will not make a difference if the style is a gradient. The same ->is the case if the style is Qt::TexturePattern style unless the current texture is a QBitmap.

The isOpaque() method returns true if the brush is fully opaque otherwise false. A brush is considered opaque if the following are true.

The alpha component of the color() is 255.
The texture() does not have an alpha channel and is not a QBitmap.
The colors in the gradient() all have an alpha component that is 255.

To specify the style and color of lines and outlines, use the QPainter's pen combined with Qt::PenStyle and Qt::GlobalColor:

QPainter painter(this);

painter.setBrush(Qt::cyan);
painter.setPen(Qt::darkCyan);
painter.drawRect(0, 0, 100,100);

painter.setBrush(Qt::NoBrush);
painter.setPen(Qt::darkGreen);
painter.drawRect(40, 40, 100, 100);

  By default, QPainter renders the outline (using the currently set pen) when drawing shapes. Use
  <tt>painter.setPen(Qt::NoPen)</tt> to disable this behavior.

For more information about painting refer to the Paint System documentation.

See also: Qt::BrushStyle, QPainter, QColor

Constructor & Destructor Documentation

QBrush::QBrush ( )

Constructs a default black brush with the style Qt::NoBrush (i.e. this brush will not fill shapes).

QBrush::QBrush ( Qt::BrushStyle style )

Constructs a black brush with the given style.

See also: setStyle()

QBrush::QBrush	(	const QColor &	color,
		Qt::BrushStyle	style = `Qt::SolidPattern`
	)

Constructs a brush with the given color and style.

See also: setColor(), setStyle()

QBrush::QBrush	(	Qt::GlobalColor	color,
		Qt::BrushStyle	style = `Qt::SolidPattern`
	)

Constructs a brush with the given color and style.

See also: setColor(), setStyle()

QBrush::QBrush	(	const QColor &	color,
		const QPixmap &	pixmap
	)

Constructs a brush with the given color and the custom pattern stored in pixmap. The style is set to Qt::TexturePattern. The color will only have an effect for QBitmaps.

See also: setColor(), setTexture()

QBrush::QBrush	(	Qt::GlobalColor	color,
		const QPixmap &	pixmap
	)

Constructs a brush with the given color and the custom pattern stored in pixmap. The style is set to Qt::TexturePattern. The color will only have an effect for QBitmaps.

See also: setColor(), setTexture()

QBrush::QBrush ( const QPixmap & pixmap )

Constructs a brush with a black color and a texture set to the given pixmap. The style is set to Qt::TexturePattern.

See also: setTexture()

QBrush::QBrush ( const QImage & image )

Constructs a brush with a black color and a texture set to the given image. The style is set to Qt::TexturePattern.

See also: setTextureImage()

QBrush::QBrush ( const QBrush & other )

Copy constructs a new QBrush from other.

QBrush::QBrush ( const QGradient & gradient )

Constructs a brush based on the given gradient. The brush style is set to the corresponding gradient style (either Qt::LinearGradientPattern, Qt::RadialGradientPattern or Qt::ConicalGradientPattern).

QBrush::~QBrush ( )

Destroys the brush.

Method Documentation

const QColor & QBrush::color ( ) const

inline

Returns the brush color.

See also: setColor()

const QGradient * QBrush::gradient ( ) const

Returns the gradient describing this brush.

bool QBrush::isOpaque ( ) const

Returns true if the brush is fully opaque otherwise false. A brush is considered opaque if:

The alpha component of the color() is 255.
Its texture() does not have an alpha channel and is not a QBitmap.
The colors in the gradient() all have an alpha component that is 255.
It is an extended radial gradient.

const QMatrix & QBrush::matrix ( ) const

inline

Returns the current transformation matrix for the brush.

See also: setMatrix()

QBrush::operator QVariant ( ) const

Returns the brush as a QVariant.

bool QBrush::operator!= ( const QBrush & brush ) const

inline

Returns true if the brush is different from the given brush, otherwise returns false.

Two brushes are different if they have different styles, colors or transforms or different pixmaps or gradients depending on the style.

See also: operator==()

QBrush & QBrush::operator= ( const QBrush & other )

Copy assigns from other and returns a reference to this object.

QBrush & QBrush::operator= ( QBrush && other )

inline

Move assigns from other and returns a reference to this object.

bool QBrush::operator== ( const QBrush & brush ) const

Returns true if the brush is equal to the given brush, otherwise returns false.

Two brushes are equal if they have equal styles, colors and transforms and equal pixmaps or gradients depending on the style.

See also: operator!=()

void QBrush::setColor ( const QColor & color )

Sets the brush color to the given color. Calling setColor() will not make a difference if the style is a gradient. The same is the case if the style is Qt::TexturePattern style unless the current texture is a QBitmap.

See also: color()

void QBrush::setColor ( Qt::GlobalColor color )

inline

Sets the brush color to the given color.

void QBrush::setMatrix ( const QMatrix & matrix )

Sets matrix as an explicit transformation matrix on the current brush. The brush transformation matrix is merged with QPainter transformation matrix to produce the final result.

See also: matrix()

void QBrush::setStyle ( Qt::BrushStyle style )

Sets the brush style to style.

See also: style()

void QBrush::setTexture ( const QPixmap & pixmap )

Sets the brush pixmap to pixmap. The style is set to Qt::TexturePattern. The current brush color will only have an effect for monochrome pixmaps, i.e. for QPixmap::depth() == 1 (QBitmaps).

See also: texture()

void QBrush::setTextureImage ( const QImage & image )

Sets the brush image to image. The style is set to Qt::TexturePattern.

The current brush color will not have any affect on monochrome images, as opposed to calling setTexture() with a QBitmap. If you want to change the color of monochrome image brushes, either convert the image to QBitmap with QBitmap::fromImage() and set the resulting QBitmap as a texture, or change the entries in the color table for the image.

See also: textureImage(), setTexture()

void QBrush::setTransform ( const QTransform & transform )

Sets transform as an explicit transformation matrix on the current brush. The brush transformation matrix is merged with QPainter transformation matrix to produce the final result.

See also: transform()

Qt::BrushStyle QBrush::style ( ) const

inline

Returns the brush style.

See also: setStyle()

void QBrush::swap ( QBrush & other )

inline

Swaps brush other with this brush. This operation is very fast and never fails.

QPixmap QBrush::texture ( ) const

Returns the custom brush pattern, or a null pixmap if no custom brush pattern has been set.

See also: setTexture()

QImage QBrush::textureImage ( ) const

Returns the custom brush pattern, or a null image if no custom brush pattern has been set. If the texture was set as a QPixmap it will be converted to a QImage.

See also: setTextureImage()

QTransform QBrush::transform ( ) const

inline

Returns the current transformation matrix for the brush.

See also: setTransform()

Friends And Related Function Documentation

QDataStream & operator<<	(	QDataStream &	stream,
		const QBrush &	brush
	)

Refer to Serializing Data Types for additional information.

QDataStream & operator>>	(	QDataStream &	stream,
		QBrush &	brush
	)

Refer to Serializing Data Types for additional information.
