QPainter Class Reference

Performs low level painting operations on widgets and other paint devices. More...

Inheritance diagram for QPainter:
QStylePainter

Classes

class  PixmapFragment
 A class used in conjunction with QPainter::drawPixmapFragments() to specify how a pixmap is drawn More...


Public Typedefs

using PixmapFragmentHints = QFlags< PixmapFragmentHint >

using RenderHints = QFlags< RenderHint >


Public Types

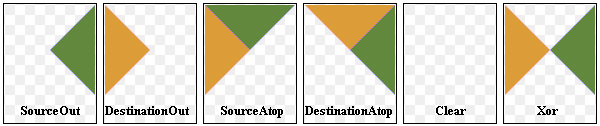

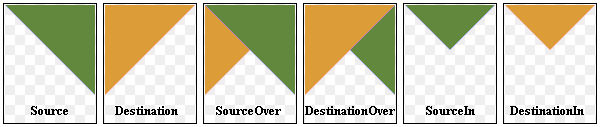

enum  CompositionMode

enum  PixmapFragmentHint

enum  RenderHint


Public Methods

 QPainter ()

 QPainter (QPaintDevice *device)

 ~QPainter ()

const QBrushbackground () const

Qt::BGMode backgroundMode () const

bool begin (QPaintDevice *device)

void beginNativePainting ()

QRect boundingRect (const QRect &rect, int flags, const QString &text)

QRectF boundingRect (const QRectF &rect, const QString &text, const QTextOption &option=QTextOption ())

QRectF boundingRect (const QRectF &rect, int flags, const QString &text)

QRect boundingRect (int x, int y, int width, int height, int flags, const QString &text)

const QBrushbrush () const

QPoint brushOrigin () const

QRectF clipBoundingRect () const

QPainterPath clipPath () const

QRegion clipRegion () const

QMatrix combinedMatrix () const

QTransform combinedTransform () const

CompositionMode compositionMode () const

QPaintDevicedevice () const

const QMatrixdeviceMatrix () const

const QTransformdeviceTransform () const

void drawArc (const QRect &rect, int startAngle, int arcLength)

void drawArc (const QRectF &rect, int startAngle, int arcLength)

void drawArc (int x, int y, int width, int height, int startAngle, int arcLength)

void drawChord (const QRect &rect, int startAngle, int arcLength)

void drawChord (const QRectF &rect, int startAngle, int arcLength)

void drawChord (int x, int y, int width, int height, int startAngle, int arcLength)

void drawConvexPolygon (const QPoint *points, int pointCount)

void drawConvexPolygon (const QPointF *points, int pointCount)

void drawConvexPolygon (const QPolygon &polygon)

void drawConvexPolygon (const QPolygonF &polygon)

void drawEllipse (const QPoint &center, int rx, int ry)

void drawEllipse (const QPointF &center, qreal rx, qreal ry)

void drawEllipse (const QRect &rect)

void drawEllipse (const QRectF &rect)

void drawEllipse (int x, int y, int width, int height)

void drawGlyphRun (const QPointF &point, const QGlyphRun &glyphs)

void drawImage (const QPoint &point, const QImage &image)

void drawImage (const QPoint &point, const QImage &image, const QRect &sourceRect, Qt::ImageConversionFlags flags=Qt::AutoColor)

void drawImage (const QPointF &point, const QImage &image)

void drawImage (const QPointF &point, const QImage &image, const QRectF &sourceRect, Qt::ImageConversionFlags flags=Qt::AutoColor)

void drawImage (const QRect &rect, const QImage &image)

void drawImage (const QRect &targetRect, const QImage &image, const QRect &sourceRect, Qt::ImageConversionFlags flags=Qt::AutoColor)

void drawImage (const QRectF &rect, const QImage &image)

void drawImage (const QRectF &targetRect, const QImage &image, const QRectF &sourceRect, Qt::ImageConversionFlags flags=Qt::AutoColor)

void drawImage (int x, int y, const QImage &image, int sx=0, int sy=0, int sw=-1, int sh=-1, Qt::ImageConversionFlags flags=Qt::AutoColor)

void drawLine (const QLine &line)

void drawLine (const QLineF &line)

void drawLine (const QPoint &point1, const QPoint &point2)

void drawLine (const QPointF &point1, const QPointF &point2)

void drawLine (int x1, int y1, int x2, int y2)

void drawLines (const QLine *lines, int lineCount)

void drawLines (const QLineF *lines, int lineCount)

void drawLines (const QPoint *points, int lineCount)

void drawLines (const QPointF *points, int lineCount)

void drawLines (const QVector< QLine > &lines)

void drawLines (const QVector< QLineF > &lines)

void drawLines (const QVector< QPoint > &points)

void drawLines (const QVector< QPointF > &points)

void drawPath (const QPainterPath &path)

void drawPicture (const QPoint &point, const QPicture &picture)

void drawPicture (const QPointF &point, const QPicture &picture)

void drawPicture (int x, int y, const QPicture &picture)

void drawPie (const QRect &rect, int startAngle, int arcLength)

void drawPie (const QRectF &rect, int startAngle, int arcLength)

void drawPie (int x, int y, int width, int height, int startAngle, int arcLength)

void drawPixmap (const QPoint &point, const QPixmap &pixmap)

void drawPixmap (const QPoint &point, const QPixmap &pixmap, const QRect &sourceRect)

void drawPixmap (const QPointF &point, const QPixmap &pixmap)

void drawPixmap (const QPointF &point, const QPixmap &pixmap, const QRectF &sourceRect)

void drawPixmap (const QRect &rect, const QPixmap &pixmap)

void drawPixmap (const QRect &targetRect, const QPixmap &pixmap, const QRect &sourceRect)

void drawPixmap (const QRectF &targetRect, const QPixmap &pixmap, const QRectF &sourceRect)

void drawPixmap (int x, int y, const QPixmap &pixmap)

void drawPixmap (int x, int y, const QPixmap &pixmap, int sx, int sy, int sw, int sh)

void drawPixmap (int x, int y, int width, int height, const QPixmap &pixmap)

void drawPixmap (int x, int y, int width, int height, const QPixmap &pixmap, int sx, int sy, int sw, int sh)

void drawPixmapFragments (const PixmapFragment *fragments, int fragmentCount, const QPixmap &pixmap, PixmapFragmentHints hints=PixmapFragmentHints ())

void drawPoint (const QPoint &point)

void drawPoint (const QPointF &point)

void drawPoint (int x, int y)

void drawPoints (const QPoint *points, int pointCount)

void drawPoints (const QPointF *points, int pointCount)

void drawPoints (const QPolygon &polygon)

void drawPoints (const QPolygonF &polygon)

void drawPolygon (const QPoint *points, int pointCount, Qt::FillRule fillRule=Qt::OddEvenFill)

void drawPolygon (const QPointF *points, int pointCount, Qt::FillRule fillRule=Qt::OddEvenFill)

void drawPolygon (const QPolygon &polygon, Qt::FillRule fillRule=Qt::OddEvenFill)

void drawPolygon (const QPolygonF &polygon, Qt::FillRule fillRule=Qt::OddEvenFill)

void drawPolyline (const QPoint *points, int pointCount)

void drawPolyline (const QPointF *points, int pointCount)

void drawPolyline (const QPolygon &polygon)

void drawPolyline (const QPolygonF &polygon)

void drawRect (const QRect &rect)

void drawRect (const QRectF &rect)

void drawRect (int x, int y, int width, int height)

void drawRects (const QRect *rects, int rectCount)

void drawRects (const QRectF *rects, int rectCount)

void drawRects (const QVector< QRect > &rectangles)

void drawRects (const QVector< QRectF > &rectangles)

void drawRoundedRect (const QRect &rect, qreal xRadius, qreal yRadius, Qt::SizeMode mode=Qt::AbsoluteSize)

void drawRoundedRect (const QRectF &rect, qreal xRadius, qreal yRadius, Qt::SizeMode mode=Qt::AbsoluteSize)

void drawRoundedRect (int x, int y, int width, int height, qreal xRadius, qreal yRadius, Qt::SizeMode mode=Qt::AbsoluteSize)

void drawRoundRect (const QRect &rect, int xRound=25, int yRound=25)

void drawRoundRect (const QRectF &rect, int xRound=25, int yRound=25)

void drawRoundRect (int x, int y, int width, int height, int xRound=25, int yRound=25)

void drawStaticText (const QPoint &topLeftPosition, const QStaticText &staticText)

void drawStaticText (const QPointF &topLeftPosition, const QStaticText &staticText)

void drawStaticText (int left, int top, const QStaticText &staticText)

void drawText (const QPoint &point, const QString &text)

void drawText (const QPointF &point, const QString &text)

void drawText (const QRect &rect, int flags, const QString &text, QRect *boundingRect=nullptr)

void drawText (const QRectF &rect, const QString &text, const QTextOption &option=QTextOption ())

void drawText (const QRectF &rect, int flags, const QString &text, QRectF *boundingRect=nullptr)

void drawText (int x, int y, const QString &text)

void drawText (int x, int y, int width, int height, int flags, const QString &text, QRect *boundingRect=nullptr)

void drawTiledPixmap (const QRect &rect, const QPixmap &pixmap, const QPoint &point=QPoint ())

void drawTiledPixmap (const QRectF &rect, const QPixmap &pixmap, const QPointF &point=QPointF ())

void drawTiledPixmap (int x, int y, int width, int height, const QPixmap &pixmap, int sx=0, int sy=0)

bool end ()

void endNativePainting ()

void eraseRect (const QRect &rect)

void eraseRect (const QRectF &rect)

void eraseRect (int x, int y, int width, int height)

void fillPath (const QPainterPath &path, const QBrush &brush)

void fillRect (const QRect &rect, const QBrush &brush)

void fillRect (const QRect &rect, const QColor &color)

void fillRect (const QRect &rect, Qt::BrushStyle style)

void fillRect (const QRect &rect, Qt::GlobalColor color)

void fillRect (const QRectF &rect, const QBrush &brush)

void fillRect (const QRectF &rect, const QColor &color)

void fillRect (const QRectF &rect, Qt::BrushStyle style)

void fillRect (const QRectF &rect, Qt::GlobalColor color)

void fillRect (int x, int y, int width, int height, const QBrush &brush)

void fillRect (int x, int y, int width, int height, const QColor &color)

void fillRect (int x, int y, int width, int height, Qt::BrushStyle style)

void fillRect (int x, int y, int width, int height, Qt::GlobalColor color)

const QFontfont () const

QFontInfo fontInfo () const

QFontMetrics fontMetrics () const

bool hasClipping () const

void initFrom (const QPaintDevice *device)

bool isActive () const

Qt::LayoutDirection layoutDirection () const

const QMatrixmatrix () const

bool matrixEnabled () const

qreal opacity () const

QPaintEnginepaintEngine () const

const QPenpen () const

RenderHints renderHints () const

void resetMatrix ()

void resetTransform ()

void restore ()

void rotate (qreal angle)

void save ()

void scale (qreal sx, qreal sy)

void setBackground (const QBrush &brush)

void setBackgroundMode (Qt::BGMode mode)

void setBrush (const QBrush &brush)

void setBrush (Qt::BrushStyle style)

void setBrushOrigin (const QPoint &point)

void setBrushOrigin (const QPointF &point)

void setBrushOrigin (int x, int y)

void setClipPath (const QPainterPath &path, Qt::ClipOperation operation=Qt::ReplaceClip)

void setClipping (bool enable)

void setClipRect (const QRect &rect, Qt::ClipOperation operation=Qt::ReplaceClip)

void setClipRect (const QRectF &rect, Qt::ClipOperation operation=Qt::ReplaceClip)

void setClipRect (int x, int y, int width, int height, Qt::ClipOperation operation=Qt::ReplaceClip)

void setClipRegion (const QRegion &region, Qt::ClipOperation operation=Qt::ReplaceClip)

void setCompositionMode (CompositionMode mode)

void setFont (const QFont &font)

void setLayoutDirection (Qt::LayoutDirection direction)

void setMatrix (const QMatrix &matrix, bool combine=false)

void setMatrixEnabled (bool enable)

void setOpacity (qreal opacity)

void setPen (const QColor &color)

void setPen (const QPen &pen)

void setPen (Qt::PenStyle style)

void setRenderHint (RenderHint hint, bool on=true)

void setRenderHints (RenderHints hints, bool on=true)

void setTransform (const QTransform &transform, bool combine=false)

void setViewport (const QRect &viewport)

void setViewport (int x, int y, int width, int height)

void setViewTransformEnabled (bool enable)

void setWindow (const QRect &window)

void setWindow (int x, int y, int width, int height)

void setWorldMatrix (const QMatrix &matrix, bool combine=false)

void setWorldMatrixEnabled (bool enable)

void setWorldTransform (const QTransform &matrix, bool combine=false)

void shear (qreal sh, qreal sv)

void strokePath (const QPainterPath &path, const QPen &pen)

bool testRenderHint (RenderHint hint) const

const QTransformtransform () const

void translate (const QPoint &offset)

void translate (const QPointF &offset)

void translate (qreal dx, qreal dy)

QRect viewport () const

bool viewTransformEnabled () const

QRect window () const

const QMatrixworldMatrix () const

bool worldMatrixEnabled () const

const QTransformworldTransform () const


Static Public Methods

static QPaintDeviceredirected (const QPaintDevice *device, QPoint *point=nullptr)

static void restoreRedirected (const QPaintDevice *device)

static void setRedirected (const QPaintDevice *device, QPaintDevice *replacement, const QPoint &point=QPoint ())


Friends

class QPaintEngine

class QRasterPaintEngine

class QWidget


Detailed Description

The QPainter class performs low level painting operations on widgets and other paint devices.

QPainter provides highly optimized methods to do many of the drawing operations required for a GUI program. The class can draw everything from simple lines to complex shapes like pies and chords. It can also draw aligned text and pixmaps. Normally, it draws in a "native" coordinate system, but it can also draw using view and world transformations. QPainter can draw on any object which inherits the QPaintDevice class.

The following example shows how to create a custom widget using a QPainter object. This paintEvent() method will be called by the event system whenever the widget needs to be repainted.

void MyWidget::paintEvent(QPaintEvent *event) {
QPainter painter(this);
painter.setPen(Qt::blue);
painter.setFont(QFont("Arial", 30));
painter.drawText(rect(), Qt::AlignCenter, "CopperSpice");
}

Paint System

The core functionality of QPainter is for drawing however the class also provides several methods that allow customizing QPainter settings. Some of the setting control rendering quality, enable clipping, or how different shapes can be merged together.

Using this class with the QPaintDevice and QPaintEngine classes forms the basis for the CopperSpice paint system. QPainter is the class used to perform drawing operations. QPaintDevice represents a device which can be painted on using a QPainter. QPaintEngine provides the interface the painter uses to draw on different types of devices.

The isActive() method indicates whether the painter is active. A painter is activated by the begin() method and the constructor that takes a QPaintDevice argument. The end() method and the destructor deactivates the painter. If the painter object is active then the device() method returns the paint device on which the painter paints and paintEngine() returns the paint engine that the painter is currently operating on.

For more information refer to the Painting System.

Settings

There are several settings which can be used to customize and make QPainter draw according to your preferences. Some of these settings mirror other settings in some paint devices, for example QWidget::font(). The QPainter::begin() method or the QPainter constructor copy these attributes from the paint device.

You can save the QPainter's state by calling the save() method which saves all the available settings on an internal stack. The restore() method pops them back.

font()
used for drawing text, when isActive() is true fontInfo() and fontMetrics() can be used to retrieve information about the currently set font
brush()
defines the color or pattern used for filling shapes
pen()
defines the color or stipple used for drawing lines or boundaries
backgroundMode()
defines if there is a background(), either Qt::OpaqueMode or Qt::TransparentMode
background()
only applies when backgroundMode() is Qt::OpaqueMode and pen() is a stipple, in that case this method describes the color of the background pixels in the stipple
brushOrigin()
defines the origin of the tiled brushes which is normally the origin of widget's background
viewport(), window(), worldTransform()
these make up the painter's coordinate transformation system, for more information refer to the Coordinate System and Coordinate Transformations
hasClipping()
indicates if the painter clips, if so it clips to clipRegion()
layoutDirection()
defines the layout direction used by the painter when drawing text
worldMatrixEnabled()
indicates if the world transformation is enabled
viewTransformEnabled()
indicates if the view transformation is enabled

Drawing

QPainter provides methods to draw most primitives: drawPoint(), drawPoints(), drawLine(), drawRect(), drawRoundedRect(), drawEllipse(), drawArc(), drawPie(), drawChord(), drawPolyline(), drawPolygon(), drawConvexPolygon(), and drawCubicBezier(). The methods drawRects() and drawLines() draw the given number of rectangles or lines in the given array of QRect or QLine using the current pen and brush.

The QPainter class also provides the fillRect() method which fills the given QRect with the given QBrush, and the eraseRect() method that erases the area inside the given rectangle.

All of these methods have both integer and floating point versions. If you need to draw a complex shape, especially if you need to do so repeatedly, consider creating a QPainterPath and drawing it using drawPath(). The QPainterPath class provides a container for painting operations, enabling graphical shapes to be constructed and reused.

QPainter also provides the fillPath() method which fills the given QPainterPath with the given QBrush, and the strokePath() method that draws the outline of the given path. There are methods to draw pixmaps/images, namely drawPixmap(), drawImage() and drawTiledPixmap(). Both drawPixmap() and drawImage() produce the same result, except that drawPixmap() is faster on-screen while drawImage() may be faster on a QPrinter or other devices.

Text drawing is done using drawText(). When you need fine grained positioning, boundingRect() tells you where a given drawText() command will draw.

Drawing Pixmaps and Images

There are methods to draw pixmaps/images, namely drawPixmap(), drawImage() and drawTiledPixmap(). Both drawPixmap() and drawImage() produce the same result, except drawPixmap() is faster on screen while drawImage() may be faster on a QPrinter or other devices.

The drawPicture() method draws the contents of an entire QPicture. The drawPicture() method is the only one which disregards all the painter's settings as QPicture has its own settings.

High Resolution Pixmaps and Images

High resolution versions of pixmaps have a device pixel ratio value larger than 1.

If the pixel ratio matches the value of the underlying QPaintDevice, the pixmap is drawn directly with no additional transformation applied. This occurs when drawing a QPixmap of 64x64 pixels size with a device pixel ratio of 2 onto a high DPI screen which also has a device pixel ratio of 2. The pixmap is then effectively 32x32 pixels in user coordinates. Code paths in CopperSpice that calculate layout geometry based on the pixmap size will use this size. The net effect of this is that the pixmap is displayed as high DPI pixmap rather than a large pixmap.

Rendering Quality

To obtain a consistent rendering result using QPainter specify a QImage for the paint device. Using QImage will ensure that the result has an identical pixel representation on any platform.

The QPainter class also provides a means of controlling the rendering quality through its RenderHint enum and the support for floating point precision. All the methods for drawing primitives have a floating point version. These are often used in combination with the QPainter::Antialiasing render hint.

The RenderHint enum specifies flags to QPainter that may or may not be respected by any given engine. QPainter::Antialiasing indicates that the engine should antialias edges of primitives if possible, QPainter::TextAntialiasing indicates that the engine should antialias text if possible, and the QPainter::SmoothPixmapTransform indicates that the engine should use a smooth pixmap transformation algorithm.

The renderHints() method returns a flag which specifies the current rendering hints for this painter. Use the setRenderHint() method to change the RenderHints.

Coordinate Transformations

Normally, the QPainter operates on a device native coordinate system (usually pixels). However, QPainter does support coordinate transformations.

originalrotate()scale()translate()

The most commonly used transformations are scaling, rotation, translation and shearing. Use the scale() method to scale the coordinate system by a given offset, the rotate() method to rotate it clockwise and translate() to translate it. You can also twist the coordinate system around the origin using the shear() method.

All the transformation operations operate on the transformation worldTransform(). A matrix transforms a point in the plane to another point.

The setWorldTransform() function can replace or add to the currently set worldTransform(). The resetTransform() function resets any transformations that were made using translate(), scale(), shear(), rotate(), setWorldTransform(), setViewport() and setWindow() functions. The deviceTransform() returns the matrix that transforms from logical coordinates to device coordinates of the platform dependent paint device. The latter function is only needed when using platform painting commands on the platform dependent handle, and the platform does not do transformations natively.

When drawing with QPainter, we specify points using logical coordinates which then are converted into the physical coordinates of the paint device. The mapping of the logical coordinates to the physical coordinates are handled by QPainter's combinedTransform(), a combination of viewport() and window() and worldTransform(). The viewport() represents the physical coordinates specifying an arbitrary rectangle, the window() describes the same rectangle in logical coordinates, and the worldTransform() is identical with the transformation matrix.

See also
Coordinate System

Clipping

QPainter can clip any drawing operation to a rectangle, a region, or a vector path. The current clip is available using the functions clipRegion() and clipPath(). Whether paths or regions are preferred (faster) depends on the underlying paintEngine(). For example, the QImage paint engine prefers paths while the X11 paint engine prefers regions. Setting a clip is done in the painters logical coordinates.

After the QPainter does clipping, the paint device may also clip. For example, most widgets clip away the pixels used by child widgets, and most printers clip away an area near the edges of the paper. This additional clipping is not reflected by the return value of clipRegion() or hasClipping().

Composition Modes

QPainter provides the CompositionMode enum which defines the Porter-Duff rules for digital image compositing. It describes a model for combining the pixels in one image, the source, with the pixels in another image, the destination.

The two most common forms of composition are Source and SourceOver. Source is used to draw opaque objects onto a paint device. In this mode each pixel in the source replaces the corresponding pixel in the destination. In SourceOver composition mode the source object is transparent and is drawn on top of the destination.

Composition transformations operate on each pixel. For this reason, there is a difference between using the graphic primitive itself and its bounding rectangle. The bounding rectangle contains pixels with alpha == 0 (i.e the pixels surrounding the primitive). These pixels will overwrite the other image's pixels, effectively clearing those, while the primitive only overwrites its own area.

Limitations

When using coordinates with the CopperSpice raster-based paint engine anything outside the range of +/- 215 is not guaranteed to be shown and the drawing may be clipped.

The outlines generated by the stroker are only an approximation for curved shapes. It is typically not possible to represent the bezier curve segment using another bezier curve segment, so CopperSpice approximates the curve outlines. For performance reasons there is a limit to how many curves are used. When using large pen widths or scales the outline error increases. To generate outlines with smaller errors use the QPainterPathStroker class and call the setCurveThreshold method to specify the error tolerance. Another option is to convert the paths to polygons first and then draw the polygons instead.

Performance

QPainter allows developers to do a variety of graphical operations, such as gradients, composition modes and vector graphics. These operations are supported on a variety of different hardware and software stacks.The underlying combination of hardware and software has some implications for performance. Optimizing every combination of operations is not practical.

The backends we focus on as high-performance engines are the following two.

Raster
This backend implements all rendering in pure software and is always used to render into QImages. For optimal performance only use the format types QImage::Format_ARGB32_Premultiplied, QImage::Format_RGB32 or QImage::Format_RGB16. Any other format, including QImage::Format_ARGB32, has significantly worse performance. This engine is used by default for QWidget and QPixmap.
OpenGL 2.0 (ES)
This backend is the primary backend for hardware accelerated graphics. It can be run on desktop machines and embedded devices supporting the OpenGL 2.0 or OpenGL/ES 2.0 specification. This includes most graphics chips produced in the last couple of years. The engine can be enabled by using QPainter onto a QOpenGLWidget.

The high performance operations are listed below.

  • Simple transformations, meaning translation and scaling, plus 0, 90, 180, 270 degree rotations.
  • drawPixmap() in combination with simple transformations and opacity with non-smooth transformation mode (QPainter::SmoothPixmapTransform not enabled as a render hint).
  • Rectangle fills with solid color, two-color linear gradients and simple transforms.
  • Rectangular clipping with simple transformations and intersect clip.
  • Composition Modes QPainter::CompositionMode_Source and QPainter::CompositionMode_SourceOver
  • Rounded rectangle filling using solid color and two-color linear gradients fills.
  • 3x3 patched pixmaps, via qDrawBorderPixmap.
See also
QPaintDevice, QPaintEngine, CsSvg library, Drawing Utility Functions

Member Typedef Documentation

Typedef for QFlags<PixmapFragmentHint> which contains an OR combination of PixmapFragmentHint values.

Refer to QPainter::PixmapFragmentHint for the enum documentation.

Typedef for QFlags<RenderHint> which contains an OR combination of RenderHint values.

Refer to QPainter::RenderHint for the enum documentation.

Member Enumeration Documentation

Defines the modes supported for digital image compositing. Composition modes are used to specify how the pixels in one image, the source, are merged with the pixel in another image, the destination.

Please note that the bitwise raster operation modes, denoted with a RasterOp prefix, are only natively supported in the X11 and raster paint engines. This means that the only way to utilize these modes on the Mac is via a QImage. The RasterOp denoted blend modes are not supported for pens and brushes with alpha components. Also, turning on the QPainter::Antialiasing render hint will effectively disable the RasterOp modes.

The most common type is SourceOver (often referred to as just alpha blending) where the source pixel is blended on top of the destination pixel in such a way that the alpha component of the source defines the translucency of the pixel.

When the paint device is a QImage, the image format must be set to Format_ARGB32Premultiplied or Format_ARGB32 for the composition modes to have any effect. For performance the premultiplied version is the preferred format.

When a composition mode is set it applies to all painting operator, pens, brushes, gradients and pixmap/image drawing.

ConstantValueDescription
QPainter::CompositionMode_SourceOver 0 This is the default mode. The alpha of the source is used to blend the pixel on top of the destination.
QPainter::CompositionMode_DestinationOver 1 The alpha of the destination is used to blend it on top of the source pixels. This mode is the inverse of CompositionMode_SourceOver.
QPainter::CompositionMode_Clear 2 The pixels in the destination are cleared (set to fully transparent) independent of the source.
QPainter::CompositionMode_Source 3 The output is the source pixel. (This means a basic copy operation and is identical to SourceOver when the source pixel is opaque).
QPainter::CompositionMode_Destination 4 The output is the destination pixel. This means that the blending has no effect. This mode is the inverse of CompositionMode_Source.
QPainter::CompositionMode_SourceIn 5 The output is the source, where the alpha is reduced by that of the destination.
QPainter::CompositionMode_DestinationIn 6 The output is the destination, where the alpha is reduced by that of the source. This mode is the inverse of CompositionMode_SourceIn.
QPainter::CompositionMode_SourceOut 7 The output is the source, where the alpha is reduced by the inverse of destination.
QPainter::CompositionMode_DestinationOut 8 The output is the destination, where the alpha is reduced by the inverse of the source. This mode is the inverse of CompositionMode_SourceOut.
QPainter::CompositionMode_SourceAtop 9 The source pixel is blended on top of the destination, with the alpha of the source pixel reduced by the alpha of the destination pixel.
QPainter::CompositionMode_DestinationAtop 10 The destination pixel is blended on top of the source, with the alpha of the destination pixel is reduced by the alpha of the destination pixel. This mode is the inverse of CompositionMode_SourceAtop.
QPainter::CompositionMode_Xor 11 The source, whose alpha is reduced with the inverse of the destination alpha, is merged with the destination, whose alpha is reduced by the inverse of the source alpha. CompositionMode_Xor is not the same as the bitwise Xor.
QPainter::CompositionMode_Plus 12 Both the alpha and color of the source and destination pixels are added together.
QPainter::CompositionMode_Multiply 13 The output is the source color multiplied by the destination. Multiplying a color with white leaves the color unchanged, while multiplying a color with black produces black.
QPainter::CompositionMode_Screen 14 The source and destination colors are inverted and then multiplied. Screening a color with white produces white, whereas screening a color with black leaves the color unchanged.
QPainter::CompositionMode_Overlay 15Multiplies or screens the colors depending on the destination color. The destination color is mixed with the source color to reflect the lightness or darkness of the destination.
QPainter::CompositionMode_Darken16The darker of the source and destination colors is selected.
QPainter::CompositionMode_Lighten17 The lighter of the source and destination colors is selected.
QPainter::CompositionMode_ColorDodge 18 The destination color is brightened to reflect the source color. A black source color leaves the destination color unchanged.
QPainter::CompositionMode_ColorBurn 19The destination color is darkened to reflect the source color. A white source color leaves the destination color unchanged.
QPainter::CompositionMode_HardLight 20 Multiplies or screens the colors depending on the source color. A light source color will lighten the destination color, whereas a dark source color will darken the destination color.
QPainter::CompositionMode_SoftLight 21Darkens or lightens the colors depending on the source color. Similar to CompositionMode_HardLight.
QPainter::CompositionMode_Difference 22 Subtracts the darker of the colors from the lighter. Painting with white inverts the destination color, whereas painting with black leaves the destination color unchanged.
QPainter::CompositionMode_Exclusion 23 Similar to CompositionMode_Difference, but with a lower contrast. Painting with white inverts the destination color, whereas painting with black leaves the destination color unchanged.
QPainter::RasterOp_SourceOrDestination 24 Does a bitwise OR operation on the source and destination pixels (src OR dst).
QPainter::RasterOp_SourceAndDestination 25 Does a bitwise AND operation on the source and destination pixels (src AND dst).
QPainter::RasterOp_SourceXorDestination 26Does a bitwise XOR operation on the source and destination pixels (src XOR dst).
QPainter::RasterOp_NotSourceAndNotDestination27 Does a bitwise NOR operation on the source and destination pixels ((NOT src) AND (NOT dst)).
QPainter::RasterOp_NotSourceOrNotDestination 28Does a bitwise NAND operation on the source and destination pixels ((NOT src) OR (NOT dst)).
QPainter::RasterOp_NotSourceXorDestination29 Does a bitwise operation where the source pixels are inverted and then XOR'ed with the destination ((NOT src) XOR dst).
QPainter::RasterOp_NotSourceXorDestination 29 Does a bitwise operation where the source pixels are inverted and then XOR'ed with the destination ((NOT src) XOR dst).
QPainter::RasterOp_NotSource 30 Does a bitwise operation where the source pixels are inverted (NOT src).
QPainter::RasterOp_NotSourceAndDestination 31 Does a bitwise operation where the source is inverted and then AND'ed with the destination ((NOT src) AND dst).
QPainter::RasterOp_SourceAndNotDestination 32 Does a bitwise operation where the source is AND'ed with the inverted destination pixels (src AND (NOT dst)).
QPainter::RasterOp_NotSourceOrDestination 33 Does a bitwise operation where the source is inverted and then OR'ed with the destination ((NOT src) OR dst).
QPainter::RasterOp_SourceOrNotDestination 34 Does a bitwise operation where the source is OR'ed with the inverted destination pixels (src OR (NOT dst)).
QPainter::RasterOp_ClearDestination 35 Pixels in the destination are cleared (set to 0) independent of the source.
QPainter::RasterOp_SetDestination 36 Pixels in the destination are set (set to 1) independent of the source.
QPainter::RasterOp_NotDestination 37 Does a bitwise operation where the destination pixels are inverted (NOT dst).
See also
compositionMode(), setCompositionMode()
ConstantValueDescription
QPainter::OpaqueHint0x01 Indicates that the pixmap fragments to be drawn are opaque. Opaque fragments are potentially faster to draw.
See also
QPainter::drawPixmapFragments(), QPainter::PixmapFragment

Renderhints are used to specify flags to QPainter that may or may not be respected by any given engine.

ConstantValueDescription
QPainter::Antialiasing0x01 Indicates that the engine should antialias edges of primitives if possible.
QPainter::TextAntialiasing0x02 Indicates that the engine should antialias text if possible. To forcibly disable antialiasing for text, do not use this hint. Instead, set QFont::NoAntialias on your font's style strategy.
QPainter::SmoothPixmapTransform0x04 Indicates that the engine should use a smooth pixmap transformation algorithm (such as bilinear) rather than nearest neighbor.
QPainter::HighQualityAntialiasing0x08 An OpenGL-specific rendering hint indicating that the engine should use fragment programs and offscreen rendering for antialiasing.
QPainter::NonCosmeticDefaultPen0x10 The engine should interpret pens with a width of 0 (which otherwise enables QPen::isCosmetic()) as being a non-cosmetic pen with a width of 1.
See also
renderHints(), setRenderHint()

Constructor & Destructor Documentation

QPainter::QPainter ( )

Constructs a painter.

See also
begin(), end()
QPainter::QPainter ( QPaintDevice device)
explicit

Constructs a painter which begins painting the device immediately. Calls begin() and the destructor automatically calls end(). This constructor is convenient for short lived painters like QWidget::paintEvent() and should be used only once.

The following is an example using the begin() and end() methods. Since the constructor does not provide feedback if the initialization fails, it is usually better to use begin() and end() to paint on external devices.

void MyWidget::paintEvent(QPaintEvent *) {
p.begin(this);
p.drawLine(...);
p.end();
}

This code produces the same result using this constructor.

void MyWidget::paintEvent(QPaintEvent *)
{
QPainter p(this);
p.drawLine(...);
}
See also
begin(), end()
QPainter::~QPainter ( )

Destroys the QPainter.

Method Documentation

const QBrush & QPainter::background ( ) const

Returns the current background brush.

See also
setBackground()
Qt::BGMode QPainter::backgroundMode ( ) const

Returns the current background mode.

See also
setBackgroundMode()
bool QPainter::begin ( QPaintDevice device)

Begins painting the paint device and returns true if successful, otherwise returns false. All painter settings such as setPen() and setBrush() are reset to default values when begin() is called. A paint device can only be painted by one painter at a time.

The following code shows some of the errors which can occur.

painter->begin(nullptr); // paint device can not be a nullptr (error)
QPixmap image(0, 0);
painter->begin(&image); // image can not be NULL (error)
painter->begin(myWidget);
painter2->begin(myWidget); // only one painter object can be drawing at a time (error)
Warning
Painting on a QImage with the format QImage::Format_Indexed8 is not supported.
See also
end(), QPainter()
void QPainter::beginNativePainting ( )

Flushes the painting pipeline and prepares for the user issuing commands directly to the underlying graphics context. Must be followed by a call to endNativePainting(). Only the states the underlying paint engine changes will be reset to their respective default states. These states may change in a new release of CopperSpice. The following states are currently reset in the OpenGL 2 engine.

  • blending is disabled
  • depth, stencil and scissor tests are disabled
  • active texture unit is reset to 0
  • depth mask, depth function and the clear depth are reset to their default values
  • stencil mask, stencil operation and stencil function are reset to their default values
  • current color is reset to solid white

If for example, the OpenGL polygon mode is changed by the user inside a beginNativePaint()/endNativePainting() block, it will not be reset to the default state by endNativePainting(). Here is an example that shows intermixing of painter commands and raw OpenGL commands:

QPainter painter(this);
painter.fillRect(0, 0, 128, 128, Qt::green);
glEnable(GL_SCISSOR_TEST);
glScissor(0, 0, 64, 64);
glClearColor(1, 0, 0, 1);
glClear(GL_COLOR_BUFFER_BIT);
glDisable(GL_SCISSOR_TEST);
See also
endNativePainting()
QRect QPainter::boundingRect ( const QRect rect,
int  flags,
const QString text
)

Returns the bounding rectangle of the text as it will appear when drawn inside the given rect with the specified flags using the currently set font().

QRectF QPainter::boundingRect ( const QRectF rect,
const QString text,
const QTextOption option = QTextOption()
)

Instead of specifying flags as a bitwise OR of the Qt::AlignmentFlag and Qt::TextFlag, this method takes an option argument. The QTextOption class provides a description of rich text properties.

See also
QTextOption
QRectF QPainter::boundingRect ( const QRectF rect,
int  flags,
const QString text
)

Returns the bounding rectangle of the text as it will appear when drawn inside the given rect with the specified flags using the currently set font(). This method indicates where the drawText() method will draw when given the same arguments. If the text does not fit within the given rectangle using the specified flags, the method returns the required rectangle.

The flags argument is a bitwise OR of the following flags. If several of the horizontal or several of the vertical alignment flags are set, the resulting alignment is undefined.

  • Qt::AlignLeft
  • Qt::AlignRight
  • Qt::AlignHCenter
  • Qt::AlignTop
  • Qt::AlignBottom
  • Qt::AlignVCenter
  • Qt::AlignCenter
  • Qt::TextSingleLine
  • Qt::TextExpandTabs
  • Qt::TextShowMnemonic
  • Qt::TextWordWrap
  • Qt::TextIncludeTrailingSpaces
See also
drawText(), Qt::Alignment, Qt::TextFlag
QRect QPainter::boundingRect ( int  x,
int  y,
int  width,
int  height,
int  flags,
const QString text
)
inline

Returns the bounding rectangle of the given text as it will appear when drawn inside the rectangle beginning at the point (x, y) with width and height.

const QBrush & QPainter::brush ( ) const

Returns the painter's current brush.

See also
QPainter::setBrush()
QPoint QPainter::brushOrigin ( ) const

Returns the currently set brush origin.

See also
setBrushOrigin()
QRectF QPainter::clipBoundingRect ( ) const

Returns the bounding rectangle of the current clip if there is a clip, otherwise returns an empty rectangle. The clip region is given in logical coordinates. The bounding rectangle is not guaranteed to be tight.

See also
setClipRect(), setClipPath(), setClipRegion()
QPainterPath QPainter::clipPath ( ) const

Returns the current clip as a path. The clip path is given in logical coordinates.

QPainter does not store the combined clip explicitly as this is handled by the underlying QPaintEngine, so the path is recreated on demand and transformed to the current logical coordinate system. This is potentially an expensive operation.

See also
setClipPath(), clipRegion(), setClipping()
QRegion QPainter::clipRegion ( ) const

Returns the currently set clip region. Note that the clip region is given in logical coordinates.

QPainter does not store the combined clip explicitly as this is handled by the underlying QPaintEngine, so the path is recreated on demand and transformed to the current logical coordinate system. This is potentially an expensive operation.

See also
setClipRegion(), clipPath(), setClipping()
QMatrix QPainter::combinedMatrix ( ) const
deprecated
Deprecated:
Returns the transformation matrix combining the current window/viewport and world transformation.

It is advisable to use combinedTransform() instead of this function to preserve the properties of perspective transformations.

See also
setWorldTransform(), setWindow(), setViewport()
QTransform QPainter::combinedTransform ( ) const

Returns the transformation matrix combining the current window/viewport and world transformation.

See also
setWorldTransform(), setWindow(), setViewport()
CompositionMode QPainter::compositionMode ( ) const

Returns the current composition mode.

See also
CompositionMode, setCompositionMode()
QPaintDevice * QPainter::device ( ) const

Returns the paint device on which this painter is currently painting or nullptr if the painter is not active.

See also
isActive()
const QMatrix & QPainter::deviceMatrix ( ) const
deprecated
Deprecated:
Returns the matrix that transforms from logical coordinates to device coordinates of the platform dependent paint device.

You should use deviceTransform() instead of this method to preserve the properties of perspective transformations. This method is only needed when using platform painting commands on the platform dependent handle (Qt::HANDLE), and the platform does not do transformations natively. The QPaintEngine::PaintEngineFeature enum can be queried to determine whether the platform performs the transformations or not.

See also
worldMatrix(), QPaintEngine::hasFeature()
const QTransform & QPainter::deviceTransform ( ) const

Returns the matrix that transforms from logical coordinates to device coordinates of the platform dependent paint device.

This methods is only needed when using platform painting commands on the platform dependent handle (Qt::HANDLE), and the platform does not do transformations natively. The QPaintEngine::PaintEngineFeature enum can be queried to determine whether the platform performs the transformations or not.

See also
worldTransform(), QPaintEngine::hasFeature()
void QPainter::drawArc ( const QRect rect,
int  startAngle,
int  arcLength
)
inline

Draws the arc defined by the given rect, startAngle, and arcLength.

void QPainter::drawArc ( const QRectF rect,
int  startAngle,
int  arcLength
)

Draws the arc defined by the given rect, startAngle, and arcLength.

The startAngle and spanAngle must be specified in 1/16th of a degree. For example, a full circle equals 5760 (16 * 360). Positive values for the angles mean counter-clockwise while negative values mean the clockwise direction. Zero degrees is at the 3 o'clock position.

QRectF rectangle(10.0, 20.0, 80.0, 60.0);
int startAngle = 30 * 16;
int arcLength = 120 * 16;
QPainter painter(this);
painter.drawArc(rectangle, startAngle, arcLength);
See also
drawPie(), drawChord(), Coordinate System
void QPainter::drawArc ( int  x,
int  y,
int  width,
int  height,
int  startAngle,
int  arcLength
)
inline

Draws the arc defined by the rectangle beginning at (x, y) with the specified width and height, and the given startAngle and arcLength.

void QPainter::drawChord ( const QRect rect,
int  startAngle,
int  arcLength
)
inline

Draws the chord defined by the given rect, startAngle, and arcLength.

void QPainter::drawChord ( const QRectF rect,
int  startAngle,
int  arcLength
)

Draws the chord defined by the given rect, startAngle and arcLength. The chord is filled with the current brush(). The startAngle and arcLength must be specified in 1/16th of a degree. For example a full circle equals 5760 (16 * 360).

Positive values for the angles mean counter-clockwise while negative values mean the clockwise direction. Zero degrees is at the 3 o'clock position.

QRectF rectangle(10.0, 20.0, 80.0, 60.0);
int startAngle = 30 * 16;
int arcLength = 120 * 16;
QPainter painter(this);
painter.drawChord(rect, startAngle, arcLength);
See also
drawArc(), drawPie(), Coordinate System
void QPainter::drawChord ( int  x,
int  y,
int  width,
int  height,
int  startAngle,
int  arcLength
)
inline

Draws the chord defined by the rectangle beginning at (x, y) with the specified width and height, and the given startAngle and arcLength.

void QPainter::drawConvexPolygon ( const QPoint points,
int  pointCount
)

Draws a convex polygon defined by points starting at points for the given number of points specified in pointCount using the current pen.

void QPainter::drawConvexPolygon ( const QPointF points,
int  pointCount
)

Draws a convex polygon defined by points starting at points for the given number of points specified in pointCount using the current pen.

The first point is implicitly connected to the last point, and the polygon is filled with the current brush(). If the supplied polygon is not convex, which means it contains at least one angle larger than 180 degrees, the results are undefined.

On some platforms such as X11 drawConvexPolygon() can be faster than using drawPolygon().

static const QPointF points[4] = {
QPointF(10.0, 80.0),
QPointF(20.0, 10.0),
QPointF(80.0, 30.0),
QPointF(90.0, 70.0)
};
QPainter painter(this);
painter.drawConvexPolygon(points, 4);
See also
drawPolygon(), drawPolyline(), Coordinate System
void QPainter::drawConvexPolygon ( const QPolygon polygon)
inline

Draws the convex polygon defined by polygon using the current pen and brush.

void QPainter::drawConvexPolygon ( const QPolygonF polygon)
inline

Draws the convex polygon defined by polygon using the current pen and brush.

void QPainter::drawEllipse ( const QPoint center,
int  rx,
int  ry
)
inline

Draws the ellipse positioned at thegiven center point. The values for rx and ry specify the distance for each axis.

void QPainter::drawEllipse ( const QPointF center,
qreal  rx,
qreal  ry
)
inline

Draws the ellipse positioned at thegiven center point. The values for rx and ry specify the distance for each axis.

void QPainter::drawEllipse ( const QRect rect)

Draws the ellipse defined by the given rect.

void QPainter::drawEllipse ( const QRectF rect)

Draws the ellipse defined by the given rect. A filled ellipse has a size of rectangle.size(). A stroked ellipse has a size of rectangle.size() plus the pen width.

QRectF rectangle(10.0, 20.0, 80.0, 60.0);
QPainter painter(this);
painter.drawEllipse(rectangle);
See also
drawPie(), Coordinate System
void QPainter::drawEllipse ( int  x,
int  y,
int  width,
int  height
)
inline

Draws the ellipse defined by the rectangle beginning at (x, y) with the given width and height.

void QPainter::drawGlyphRun ( const QPointF point,
const QGlyphRun glyphs
)

Draws the specified glyphs at the given point. The position gives the edge of the baseline for the string of glyphs. The glyphs will be retrieved from the font selected by glyphs and at offsets given by the positions in glyphs.

See also
QGlyphRun::setRawFont(), QGlyphRun::setPositions(), QGlyphRun::setGlyphIndexes()
void QPainter::drawImage ( const QPoint point,
const QImage image
)
inline

Draws the given image at the given point.

void QPainter::drawImage ( const QPoint point,
const QImage image,
const QRect sourceRect,
Qt::ImageConversionFlags  flags = Qt::AutoColor
)
inline

Draws the rectangular portion sourceRect of the given image with its origin at the given point.

void QPainter::drawImage ( const QPointF point,
const QImage image
)

Draws the given image at the given point.

void QPainter::drawImage ( const QPointF point,
const QImage image,
const QRectF sourceRect,
Qt::ImageConversionFlags  flags = Qt::AutoColor
)
inline

Draws the rectangular portion sourceRect of the given image with its origin at the given point.

void QPainter::drawImage ( const QRect rect,
const QImage image
)
inline

Draws the given image into the given rect. The image is scaled to fit the rectangle, if the image and rectangle size do not match.

void QPainter::drawImage ( const QRect targetRect,
const QImage image,
const QRect sourceRect,
Qt::ImageConversionFlags  flags = Qt::AutoColor
)
inline

Draws the rectangular portion sourceRect of the given image into the targetRect rectangle in the paint device. The image is scaled to fit the rectangle, if both the image and rectangle size disagree.

void QPainter::drawImage ( const QRectF rect,
const QImage image
)
inline

Draws the given image into the given rect. The image is scaled to fit the rectangle, if the image and rectangle size do not match.

void QPainter::drawImage ( const QRectF targetRect,
const QImage image,
const QRectF sourceRect,
Qt::ImageConversionFlags  flags = Qt::AutoColor
)

Draws the rectangular portion sourceRect of the given image into the targetRect rectangle in the paint device. The image is scaled to fit the rectangle, if both the image and rectangle size disagree.

If the image needs to be modified to fit in a lower-resolution result (e.g. converting from 32-bit to 8-bit), use the flags to specify how you would prefer this to happen.

QRectF target(10.0, 20.0, 80.0, 60.0);
QRectF source(0.0, 0.0, 70.0, 40.0);
QImage image(":/images/myImage.png");
QPainter painter(this);
painter.drawImage(target, image, source);
See also
drawPixmap()
void QPainter::drawImage ( int  x,
int  y,
const QImage image,
int  sx = 0,
int  sy = 0,
int  sw = -1,
int  sh = -1,
Qt::ImageConversionFlags  flags = Qt::AutoColor
)
inline

Draws an image at (x, y) by copying a part of image into the paint device. The values for x and y specify the top-left point in the paint device that is to be drawn onto.

The values for (sx, sy) specify the top-left point in image that is to be drawn. The default is (0, 0).

The values for (sw, sh) specify the size of the image to be drawn. The default (0, 0) (and negative) means all the way to the bottom-right of the image.

void QPainter::drawLine ( const QLine line)
inline

Draws a line defined by line.

void QPainter::drawLine ( const QLineF line)
inline

Draws a line defined by line.

QLineF line(10.0, 80.0, 90.0, 20.0);
QPainter(this);
painter.drawLine(line);
See also
drawLines(), drawPolyline(), Coordinate System
void QPainter::drawLine ( const QPoint point1,
const QPoint point2
)
inline

Draws a line from point1 to point2.

void QPainter::drawLine ( const QPointF point1,
const QPointF point2
)
inline

Draws a line from point1 to point2.

void QPainter::drawLine ( int  x1,
int  y1,
int  x2,
int  y2
)
inline

Draws a line from (x1, y1) to (x2, y2) and sets the current pen position to (x2, y2).

void QPainter::drawLines ( const QLine lines,
int  lineCount
)

Draws a list of lines starting at lines for the given number of lines, specified in lineCount using the current pen.

void QPainter::drawLines ( const QLineF lines,
int  lineCount
)

Draws a list of lines starting at lines for the given number of lines, specified in lineCount using the current pen.

See also
drawLine(), drawPolyline()
void QPainter::drawLines ( const QPoint points,
int  lineCount
)

Draws the list of lines starting at points for the given number of lines, specified in lineCount using the current pen. The lines are specified as pairs of points so the number of entries in lines must be at least lineCount * 2.

void QPainter::drawLines ( const QPointF points,
int  lineCount
)

Draws the list of lines starting at points for the given number of lines, specified in lineCount using the current pen. The lines are specified as pairs of points so the number of entries in lines must be at least lineCount * 2.

void QPainter::drawLines ( const QVector< QLine > &  lines)
inline

Draws the set of lines defined by line, using the current pen and brush.

void QPainter::drawLines ( const QVector< QLineF > &  lines)
inline

Draws the set of lines defined by line using the current pen and brush.

void QPainter::drawLines ( const QVector< QPoint > &  points)
inline

Draws a line for each pair of points in the vector points using the current pen. If there is an odd number of points in the array, the last point will be ignored.

void QPainter::drawLines ( const QVector< QPointF > &  points)
inline

Draws a line for each pair of points in the vector points using the current pen. If there is an odd number of points in the array, the last point will be ignored.

void QPainter::drawPath ( const QPainterPath path)

Draws the given painter path using the current pen for outline and the current brush for filling.

path.moveTo(20, 80);
path.lineTo(20, 30);
path.cubicTo(80, 0, 50, 50, 80, 80);
QPainter painter(this);
painter.drawPath(path);
void QPainter::drawPicture ( const QPoint point,
const QPicture picture
)
inline

Replays the given picture at the given point.

void QPainter::drawPicture ( const QPointF point,
const QPicture picture
)

Replays the given picture at the given point.

The QPicture class is a paint device that records and replays QPainter commands. A picture serializes the painter commands to an IO device in a platform-independent format. Everything that can be painted on a widget or pixmap can also be stored in a picture.

This function does exactly the same as QPicture::play() when called with point = QPoint(0, 0).

QPicture picture;
QPointF point(10.0, 20.0)
picture.load("drawing.pic");
QPainter painter(this);
painter.drawPicture(0, 0, picture);
See also
QPicture::play()
void QPainter::drawPicture ( int  x,
int  y,
const QPicture picture
)
inline

Draws the given picture at point (x, y).

void QPainter::drawPie ( const QRect rect,
int  startAngle,
int  arcLength
)
inline

Draws a pie defined by the given rect, startAngle, and arcLength.

void QPainter::drawPie ( const QRectF rect,
int  startAngle,
int  arcLength
)

Draws a pie defined by the given rect, startAngle, and arcLength. The pie is filled with the current brush().

The startAngle and arcLength must be specified in 1/16th of a degree. For example a full circle equals 5760 (16 * 360). Positive values for the angles mean counter-clockwise while negative values mean the clockwise direction. Zero degrees is at the 3 o'clock position.

QRectF rectangle(10.0, 20.0, 80.0, 60.0);
int startAngle = 30 * 16;
int arcLength = 120 * 16;
QPainter painter(this);
painter.drawPie(rectangle, startAngle, arcLength);
See also
drawEllipse(), drawChord(), Coordinate System
void QPainter::drawPie ( int  x,
int  y,
int  width,
int  height,
int  startAngle,
int  arcLength
)
inline

Draws the pie defined by the rectangle beginning at (x, y) with the specified width and height, and the given startAngle and arcLength.

void QPainter::drawPixmap ( const QPoint point,
const QPixmap pixmap
)
inline

Draws the given pixmap with its origin at the given point.

void QPainter::drawPixmap ( const QPoint point,
const QPixmap pixmap,
const QRect sourceRect
)
inline

Draws the rectangular portion sourceRect of the given pixmap with its origin at the given point.

void QPainter::drawPixmap ( const QPointF point,
const QPixmap pixmap
)

Draws the given pixmap with its origin at the given point.

void QPainter::drawPixmap ( const QPointF point,
const QPixmap pixmap,
const QRectF sourceRect
)
inline

Draws the rectangular portion sourceRect of the given pixmap with its origin at the given point.

void QPainter::drawPixmap ( const QRect rect,
const QPixmap pixmap
)
inline

Draws the given pixmap into the given rect. The pixmap is scaled to fit the rectangle, if the pixmap and rectangle size do not match.

void QPainter::drawPixmap ( const QRect targetRect,
const QPixmap pixmap,
const QRect sourceRect
)
inline

Draws the rectangular portion sourceRect of the given pixmap into the given targetRect in the paint device. The pixmap is scaled to fit the rectangle, if the pixmap and rectangle size do not match.

void QPainter::drawPixmap ( const QRectF targetRect,
const QPixmap pixmap,
const QRectF sourceRect
)

Draws the rectangular portion sourceRect of the given pixmap into the given targetRect in the paint device. The pixmap is scaled to fit the rectangle, if the pixmap and rectangle size do not match.

If pixmap is a QBitmap it is drawn with the bits that are "set" using the pen color. If backgroundMode is Qt::OpaqueMode, the "unset" bits are drawn using the color of the background brush. If backgroundMode is Qt::TransparentMode, the "unset" bits are transparent. Drawing bitmaps with gradient or texture colors is not supported.

QRectF target(10.0, 20.0, 80.0, 60.0);
QRectF source(0.0, 0.0, 70.0, 40.0);
QPixmap pixmap(":myPixmap.png");
QPainter(this);
painter.drawPixmap(target, image, source);
See also
drawImage()
void QPainter::drawPixmap ( int  x,
int  y,
const QPixmap pixmap
)
inline

Draws the given pixmap at position (x, y).

void QPainter::drawPixmap ( int  x,
int  y,
const QPixmap pixmap,
int  sx,
int  sy,
int  sw,
int  sh
)
inline

Draws a pixmap at (x, y) by copying a part of the given pixmap into the paint device.

The X and Y coordinates specify the top-left point in the paint device. The SX and SY coordinates specify the top-left point in the pixmap. The SW and SH coordinates specify the size of the pixmap.

void QPainter::drawPixmap ( int  x,
int  y,
int  width,
int  height,
const QPixmap pixmap
)
inline

Draws the pixmap in the rectangle at position (x, y) with the given width and height.

void QPainter::drawPixmap ( int  x,
int  y,
int  width,
int  height,
const QPixmap pixmap,
int  sx,
int  sy,
int  sw,
int  sh
)
inline

Draws the rectangular portion with the origin (sx, sy), width sw and height sh, of the given pixmap, at the point (x, y), with the given width and height. If SW or SH are equal to zero the width/height of the pixmap is used and adjusted by the offset sx/sy.

void QPainter::drawPixmapFragments ( const PixmapFragment fragments,
int  fragmentCount,
const QPixmap pixmap,
PixmapFragmentHints  hints = PixmapFragmentHints()
)

Draws pixmap, or a sub-rectangle of pixmap, at multiple positions with different scale, rotation, and opacity. The value for fragments is an array of fragmentCount elements specifying the parameters used to draw each pixmap fragment. The hints parameter can be used to pass in drawing hints.

This method is potentially faster than multiple calls to drawPixmap() since the backend can optimize state changes.

See also
QPainter::PixmapFragmentHint
void QPainter::drawPoint ( const QPoint point)
inline

Draws a single point at the given point using the current pen color.

void QPainter::drawPoint ( const QPointF point)
inline

Draws a single point at the given point using the current pen color.

See also
Coordinate System
void QPainter::drawPoint ( int  x,
int  y
)
inline

Draws a single point at position (x, y).

void QPainter::drawPoints ( const QPoint points,
int  pointCount
)

Draws points starting from points for the given number of points specified in pointCount.

void QPainter::drawPoints ( const QPointF points,
int  pointCount
)

Draws points starting from points for the given number of points specified in pointCount.

See also
Coordinate System
void QPainter::drawPoints ( const QPolygon polygon)
inline

Draws the points in the vector polygon.

void QPainter::drawPoints ( const QPolygonF polygon)
inline

Draws the points in the vector polygon.

void QPainter::drawPolygon ( const QPoint points,
int  pointCount,
Qt::FillRule  fillRule = Qt::OddEvenFill
)

Draws a polygon defined by points starting at points for the given number of points specified in pointCount using the given fillRule.

void QPainter::drawPolygon ( const QPointF points,
int  pointCount,
Qt::FillRule  fillRule = Qt::OddEvenFill
)

Draws a polygon defined by points starting at points for the given number of points specified in pointCount using the current pen and brush. The first point is implicitly connected to the last point and the polygon is filled with the current brush().

If fillRule is Qt::WindingFill, the polygon is filled using the winding fill algorithm. If fillRule is Qt::OddEvenFill, the polygon is filled using the odd-even fill algorithm. Refer to Qt::FillRule for a detailed description of these fill rules.

static const QPointF points[4] = {
QPointF(10.0, 80.0),
QPointF(20.0, 10.0),
QPointF(80.0, 30.0),
QPointF(90.0, 70.0)
};
QPainter painter(this);
painter.drawPolygon(points, 4);
See also
drawConvexPolygon(), drawPolyline(), Coordinate System
void QPainter::drawPolygon ( const QPolygon polygon,
Qt::FillRule  fillRule = Qt::OddEvenFill
)
inline

Draws a polygon defined by the given polygon using the given fillRule.

void QPainter::drawPolygon ( const QPolygonF polygon,
Qt::FillRule  fillRule = Qt::OddEvenFill
)
inline

Draws a polygon defined by the given polygon using the given fillRule.

void QPainter::drawPolyline ( const QPoint points,
int  pointCount
)

Draws the polyline defined by points starting at points for the given number of points specified in pointCount using the current pen.

void QPainter::drawPolyline ( const QPointF points,
int  pointCount
)

Draws the polyline defined by points starting at points for the given number of points specified in pointCount using the current pen. The last point is not connected to the first, neither is the polyline filled.

static const QPointF points[3] = {
QPointF(10.0, 80.0),
QPointF(20.0, 10.0),
QPointF(80.0, 30.0),
};
QPainter painter(this);
painter.drawPolyline(points, 3);
See also
drawLines(), drawPolygon(), Coordinate System
void QPainter::drawPolyline ( const QPolygon polygon)
inline

Draws the polyline defined by the given polygon using the current pen.

void QPainter::drawPolyline ( const QPolygonF polygon)
inline

Draws the polyline defined by the given polygon using the current pen.

void QPainter::drawRect ( const QRect rect)
inline

Draws the given rect with the current pen and brush.

void QPainter::drawRect ( const QRectF rect)
inline

Draws the given rect with the current pen and brush. A filled rectangle has a size of rect.size(). A stroked rectangle has a size of rect.size() plus the pen width.

QRectF rectangle(10.0, 20.0, 80.0, 60.0);
QPainter painter(this);
painter.drawRect(rectangle);
See also
drawRects(), drawPolygon(), Coordinate System
void QPainter::drawRect ( int  x,
int  y,
int  width,
int  height
)
inline

Draws a rectangle with the upper left corner at (x, y) and the given width and height.

void QPainter::drawRects ( const QRect rects,
int  rectCount
)

Draws rectangles starting from rects for the given number of rectangles specified in rectCount using the current pen and brush.

void QPainter::drawRects ( const QRectF rects,
int  rectCount
)

Draws rectangles starting from rects for the given number of rectangles specified in rectCount using the current pen and brush.

See also
drawRect()
void QPainter::drawRects ( const QVector< QRect > &  rectangles)
inline

Draws the given rectangles using the current pen and brush.

void QPainter::drawRects ( const QVector< QRectF > &  rectangles)
inline

Draws the given rectangles using the current pen and brush.

void QPainter::drawRoundedRect ( const QRect rect,
qreal  xRadius,
qreal  yRadius,
Qt::SizeMode  mode = Qt::AbsoluteSize
)
inline

Draws the given rect with rounded corners.

The xRadius and yRadius arguments specify the radii of the ellipses defining the corners of the rounded rectangle. When mode is Qt::RelativeSize then xRadius and yRadius are specified in percentage of half the rectangle's width and height respectively and should be in the range 0.0 to 100.0.

A filled rectangle has a size of rect.size(). A stroked rectangle has a size of rect.size() plus the pen width.

void QPainter::drawRoundedRect ( const QRectF rect,
qreal  xRadius,
qreal  yRadius,
Qt::SizeMode  mode = Qt::AbsoluteSize
)

Draws the given rect with rounded corners.

The xRadius and yRadius arguments specify the radii of the ellipses defining the corners of the rounded rectangle. When mode is Qt::RelativeSize then xRadius and yRadius are specified in percentage of half the rectangle's width and height respectively and should be in the range 0.0 to 100.0.

A filled rectangle has a size of rect.size(). A stroked rectangle has a size of rect.size() plus the pen width.

QRectF rectangle(10.0, 20.0, 80.0, 60.0);
QPainter painter(this);
painter.drawRoundedRect(rectangle, 20.0, 15.0);
See also
drawRect(), QPen
void QPainter::drawRoundedRect ( int  x,
int  y,
int  width,
int  height,
qreal  xRadius,
qreal  yRadius,
Qt::SizeMode  mode = Qt::AbsoluteSize
)
inline

Draws a rectangle using x, y, width, height with rounded corners.

The xRadius and yRadius arguments specify the radii of the ellipses defining the corners of the rounded rectangle. When mode is Qt::RelativeSize then xRadius and yRadius are specified in percentage of half the rectangle's width and height respectively and should be in the range 0.0 to 100.0.

A filled rectangle has a size of (width, height). A stroked rectangle has a size of (width, height) plus the pen width.

void QPainter::drawRoundRect ( const QRect rect,
int  xRound = 25,
int  yRound = 25
)
inlinedeprecated
Deprecated:
Draws the given rect with rounded corners.
See also
drawRoundedRect()
void QPainter::drawRoundRect ( const QRectF rect,
int  xRound = 25,
int  yRound = 25
)
deprecated
Deprecated:
Draws the given rect with rounded corners.

The xRound and yRound arguments specify how rounded the corners should be. 0 is angled corners, 99 is maximum roundedness. A filled rectangle has a size of rectangle.size(). A stroked rectangle has a size of rectangle.size() plus the pen width.

See also
drawRoundedRect()
void QPainter::drawRoundRect ( int  x,
int  y,
int  width,
int  height,
int  xRound = 25,
int  yRound = 25
)
inlinedeprecated
Deprecated:
Draws the rectangle x, y, width, height with rounded corners.
See also
drawRoundedRect()
void QPainter::drawStaticText ( const QPoint topLeftPosition,
const QStaticText staticText
)
inline

Draws the staticText at the topLeftPosition.

If the painter's transformation is not affine then staticText will be drawn using regular calls to drawText(). The y-position is used as the top of the font.

void QPainter::drawStaticText ( const QPointF topLeftPosition,
const QStaticText staticText
)

Draws the given staticText at the given topLeftPosition.

The text will be drawn using the font and the transformation set on the painter. If the font and/or transformation set on the painter are different from the ones used to initialize the layout of the QStaticText, then the layout will have to be recalculated. Use QStaticText::prepare() to initialize staticText with the font and transformation with which it will later be drawn.

If topLeftPosition is not the same as when staticText was initialized, or when it was last drawn, then there will be a slight overhead when translating the text to its new position.

If the painter's transformation is not affine then staticText will be drawn using regular calls to drawText(). The y-position is used as the top of the font.

See also
QStaticText
void QPainter::drawStaticText ( int  left,
int  top,
const QStaticText staticText
)
inline

Draws the staticText at coordinates left and top.

If the painter's transformation is not affine then staticText will be drawn using regular calls to drawText(). The y-position is used as the top of the font.

void QPainter::drawText ( const QPoint point,
const QString text
)
inline

Draws the given text with the currently defined text direction, beginning at the given point. By default, QPainter draws text anti-aliased.

The y-position is used as the baseline of the font.

void QPainter::drawText ( const QPointF point,
const QString text
)

Draws the given text with the currently defined text direction, beginning at the given point.

This function does not handle the newline character (\n), as it can not break text into multiple lines, and it can not display the newline character. Use the QPainter::drawText() overload that takes a rectangle instead if you want to draw multiple lines of text with the newline character, or if you want the text to be wrapped.

By default QPainter draws text anti-aliased. The y-position is used as the baseline of the font.

void QPainter::drawText ( const QRect rect,
int  flags,
const QString text,
QRect boundingRect = nullptr
)

Draws the given text within the provided rect according to the specified flags. The boundingRect (if not null) is set to the what the bounding rectangle should be in order to enclose the whole text.

By default QPainter draws text anti-aliased. The y-coordinate of the rectangle is used as the top of the font.

void QPainter::drawText ( const QRectF rect,
const QString text,
const QTextOption option = QTextOption()
)

Draws the given text in the rect specified using the option to control its positioning and orientation.

By default QPainter draws text anti-aliased. The y-coordinate of rectangle is used as the top of the font.

void QPainter::drawText ( const QRectF rect,
int  flags,
const QString text,
QRectF boundingRect = nullptr
)

Draws the given text within the provided rect.

QPainter painter(this);
painter.drawText(rect, Qt::AlignCenter, tr("CopperSpice\nProject"));

The boundingRect (if not null) is set to the what the bounding rectangle should be in order to enclose the whole text. The flags argument is a bitwise OR of the following flags.

  • Qt::AlignLeft
  • Qt::AlignRight
  • Qt::AlignHCenter
  • Qt::AlignJustify
  • Qt::AlignTop
  • Qt::AlignBottom
  • Qt::AlignVCenter
  • Qt::AlignCenter
  • Qt::TextDontClip
  • Qt::TextSingleLine
  • Qt::TextExpandTabs
  • Qt::TextShowMnemonic
  • Qt::TextWordWrap
  • Qt::TextIncludeTrailingSpaces

By default QPainter draws text anti-aliased. The y-coordinate of the rectangle is used as the top of the font.

See also
Qt::AlignmentFlag, Qt::TextFlag, boundingRect(), layoutDirection()
void QPainter::drawText ( int  x,
int  y,
const QString text
)
inline

Draws the given text at position (x, y), using the painter's currently defined text direction.

By default, QPainter draws text anti-aliased. The y-position is used as the baseline of the font.

void QPainter::drawText ( int  x,
int  y,
int  width,
int  height,
int  flags,
const QString text,
QRect boundingRect = nullptr
)
inline

Draws the given text within the rectangle with origin (x, y), width and height. The boundingRect (if not null) is set to the actual bounding rectangle of the output. The flags argument is a bitwise OR of the following flags.

  • Qt::AlignLeft
  • Qt::AlignRight
  • Qt::AlignHCenter
  • Qt::AlignJustify
  • Qt::AlignTop
  • Qt::AlignBottom
  • Qt::AlignVCenter
  • Qt::AlignCenter
  • Qt::TextSingleLine
  • Qt::TextExpandTabs
  • Qt::TextShowMnemonic
  • Qt::TextWordWrap

By default, QPainter draws text anti-aliased. The y-position is used as the top of the font.

See also
Qt::AlignmentFlag, Qt::TextFlag
void QPainter::drawTiledPixmap ( const QRect rect,
const QPixmap pixmap,
const QPoint point = QPoint()
)
inline

Draws a tiled pixmap inside the given rect with its origin at the given point.

void QPainter::drawTiledPixmap ( const QRectF rect,
const QPixmap pixmap,
const QPointF point = QPointF()
)

Draws a tiled pixmap inside the given rect with its origin at the given point.

Calling drawTiledPixmap() is similar to calling drawPixmap() several times to fill (tile) an area with a pixmap, but is potentially much more efficient depending on the underlying window system.

See also
drawPixmap()
void QPainter::drawTiledPixmap ( int  x,
int  y,
int  width,
int  height,
const QPixmap pixmap,
int  sx = 0,
int  sy = 0
)
inline

Draws a tiled pixmap in the specified rectangle.

The (x, y) coordinates specify the top-left point in the paint device. The size is specified by the width and height. The (sx, sy) coordinates specify the top-left point in the given pixmap.

bool QPainter::end ( )

Ends the painting process. Any resources used while painting are released. You do not normally need to call this since it is called by the destructor. Returns true if the painter is no longer active, otherwise returns false.

See also
begin(), isActive()
void QPainter::endNativePainting ( )

Restores the painter after manually issuing native painting commands. Lets the painter restore any native state that it relies on before calling any other painter commands.

See also
beginNativePainting()
void QPainter::eraseRect ( const QRect rect)
inline

Erases the area inside the given rect.

void QPainter::eraseRect ( const QRectF rect)

Erases the area inside the given rect. Equivalent to calling fillRect(rectangle, background())

See also
fillRect()
void QPainter::eraseRect ( int  x,
int  y,
int  width,
int  height
)
inline

Erases the area inside the rectangle beginning at (x, y) with the given width and height.

void QPainter::fillPath ( const QPainterPath path,
const QBrush brush
)

Fills the given path using the brush. The outline is not drawn. Alternatively, you can specify a QColor instead of a QBrush. The QBrush constructor will automatically create a solid pattern brush.

See also
drawPath()
void QPainter::fillRect ( const QRect rect,
const QBrush brush
)

Fills the given rect with the specified brush.

void QPainter::fillRect ( const QRect rect,
const QColor color
)

Fills the given rect with the specified color.

void QPainter::fillRect ( const QRect rect,
Qt::BrushStyle  style
)
inline

Fills the given rect with the brush style specified.

void QPainter::fillRect ( const QRect rect,
Qt::GlobalColor  color
)
inline

Fills the given rect with the specified color.

void QPainter::fillRect ( const QRectF rect,
const QBrush brush
)

Fills the given rect using the brush. Alternatively, you can specify a QColor instead of a QBrush. The QBrush constructor will automatically create a solid pattern brush.

See also
drawRect()
void QPainter::fillRect ( const QRectF rect,
const QColor color
)

Fills the given rect with the specified color.

void QPainter::fillRect ( const QRectF rect,
Qt::BrushStyle  style
)
inline

Fills the given rect with the brush specified style.

void QPainter::fillRect ( const QRectF rect,
Qt::GlobalColor  color
)
inline

Fills the given rect with the specified color.

void QPainter::fillRect ( int  x,
int  y,
int  width,
int  height,
const QBrush brush
)
inline

Fills the rectangle beginning at (x, y) with the given width and height, using the brush.

void QPainter::fillRect ( int  x,
int  y,
int  width,
int  height,
const QColor color
)
inline

Fills the rectangle beginning at (x, y) with the given width and height, using the color.

void QPainter::fillRect ( int  x,
int  y,
int  width,
int  height,
Qt::BrushStyle  style
)
inline

Fills the rectangle beginning at (x, y) with the given width and height, using the brush style specified.

void QPainter::fillRect ( int  x,
int  y,
int  width,
int  height,
Qt::GlobalColor  color
)
inline

Fills the rectangle beginning at (x, y) with the given width and height, using the color.

const QFont & QPainter::font ( ) const

Returns the currently set font used for drawing text.

See also
setFont(), drawText()
QFontInfo QPainter::fontInfo ( ) const

Returns the font info for the painter if the painter is active. Otherwise, the return value is undefined.

See also
font(), isActive()
QFontMetrics QPainter::fontMetrics ( ) const

Returns the font metrics for the painter if the painter is active. Otherwise, the return value is undefined.

See also
font(), isActive()
bool QPainter::hasClipping ( ) const

Returns true if clipping has been set, otherwise returns false.

See also
setClipping()
void QPainter::initFrom ( const QPaintDevice device)

Initializes the painters pen, background and font to the same as the given device. This method is called automatically when the painter is opened on a QWidget.

See also
begin()
bool QPainter::isActive ( ) const

Returns true if begin() has been called and end() has not yet been called, otherwise returns false.

See also
begin(), QPaintDevice::paintingActive()
Qt::LayoutDirection QPainter::layoutDirection ( ) const

Returns the layout direction used by the painter when drawing text.

See also
QTextOption::textDirection(), setLayoutDirection(), drawText()
const QMatrix & QPainter::matrix ( ) const
deprecated
bool QPainter::matrixEnabled ( ) const
deprecated
qreal QPainter::opacity ( ) const

Returns the opacity of the painter. The default value is 1.

See also
setOpacity()
QPaintEngine * QPainter::paintEngine ( ) const

Returns the paint engine that the painter is currently operating on if the painter is active, otherwise 0.

See also
isActive()
const QPen & QPainter::pen ( ) const

Returns the painter's current pen.

See also
setPen()
QPaintDevice * QPainter::redirected ( const QPaintDevice device,
QPoint point = nullptr
)
deprecatedstatic
Deprecated:
This method is not required when using QWidget::render().

Returns the replacement for given device. The optional out parameter point returns the offset within the replaced device.

Making use of redirections in the QPainter API implies that QPainter::begin() and QPaintDevice destructors need to hold a mutex for a short period. This can impact performance. Use of QWidget::render is strongly encouraged.

See also
setRedirected(), restoreRedirected()
RenderHints QPainter::renderHints ( ) const

Returns a flag that specifies the rendering hints that are set for this painter.

See also
setRenderHints(), testRenderHint()
void QPainter::resetMatrix ( )
deprecated
Deprecated:
Resets any transformations that were made using translate(), scale(), shear(), rotate(), setWorldMatrix(), setViewport() and setWindow().

It is advisable to use resetTransform() instead of this method to preserve the properties of perspective transformations.

See also
Coordinate Transformations
void QPainter::resetTransform ( )

Resets any transformations that were made using translate(), scale(), shear(), rotate(), setWorldTransform(), setViewport() and setWindow().

See also
Coordinate Transformations
void QPainter::restore ( )

Restores the current painter state (pops a saved state off the stack).

See also
save()
void QPainter::restoreRedirected ( const QPaintDevice device)
deprecatedstatic
Deprecated:
Use QWidget::render() instead.

Restores the previous redirection for the given device after a call to setRedirected().

Making use of redirections in the QPainter API implies that QPainter::begin() and QPaintDevice destructors need to hold a mutex for a short period. This can impact performance. Use of QWidget::render is strongly encouraged.

void QPainter::rotate ( qreal  angle)

Rotates the coordinate system the given angle clockwise.

See also
setWorldTransform(), Coordinate Transformations
void QPainter::save ( )

Saves the current painter state (pushes the state onto a stack). A save() must be followed by a corresponding restore(); the end() function unwinds the stack.

See also
restore()
void QPainter::scale ( qreal  sx,
qreal  sy
)

Scales the coordinate system by (sx, sy).

See also
setWorldTransform(), Coordinate Transformations
void QPainter::setBackground ( const QBrush brush)

Sets the background brush of the painter to the given brush.

The background brush is the brush that is filled in when drawing opaque text, stippled lines and bitmaps. The background brush has no effect in transparent background mode (which is the default).

See also
background(), setBackgroundMode()
void QPainter::setBackgroundMode ( Qt::BGMode  mode)

Sets the background mode of the painter to the given mode.

Qt::TransparentMode (the default) draws stippled lines and text without setting the background pixels. Qt::OpaqueMode fills these space with the current background color.

In order to draw a bitmap or pixmap transparently, you must use QPixmap::setMask().

See also
backgroundMode(), setBackground()
void QPainter::setBrush ( const QBrush brush)

Sets the painter's brush to the given brush. The painter's brush defines how shapes are filled.

See also
brush()
void QPainter::setBrush ( Qt::BrushStyle  style)

Sets the painter's brush to black color and the specified style.

void QPainter::setBrushOrigin ( const QPoint point)
inline

Sets the brush's origin to the given point.

void QPainter::setBrushOrigin ( const QPointF point)

Sets the brush origin to point. The brush origin specifies the (0, 0) coordinate of the painter's brush.

See also
brushOrigin()
void QPainter::setBrushOrigin ( int  x,
int  y
)
inline

Sets the brush's origin to point (x, y).

void QPainter::setClipPath ( const QPainterPath path,
Qt::ClipOperation  operation = Qt::ReplaceClip
)

Enables clipping, and sets the clip path for the painter to the given path, with the clip operation. The clip path is specified in logical (painter) coordinates.

See also
clipPath(), clipRegion()
void QPainter::setClipping ( bool  enable)

Enables clipping if enable is true, otherwise disables clipping.

See also
hasClipping()
void QPainter::setClipRect ( const QRect rect,
Qt::ClipOperation  operation = Qt::ReplaceClip
)

Enables clipping, and sets the clip region to the given rect using the given clip operation.

void QPainter::setClipRect ( const QRectF rect,
Qt::ClipOperation  operation = Qt::ReplaceClip
)

Enables clipping, and sets the clip region to the given rect using the given clip operation. The default operation is to replace the current clip rectangle.

The clip rectangle is specified in logical (painter) coordinates.

See also
clipRegion(), setClipping()
void QPainter::setClipRect ( int  x,
int  y,
int  width,
int  height,
Qt::ClipOperation  operation = Qt::ReplaceClip
)
inline

Enables clipping, and sets the clip region to the rectangle beginning at (x, y) with the given width and height.

void QPainter::setClipRegion ( const QRegion region,
Qt::ClipOperation  operation = Qt::ReplaceClip
)

Sets the clip region to the given region using the specified clip operation. The default clip operation is to replace the current clip region. The clip region is given in logical coordinates.

See also
clipRegion(), setClipRect()
void QPainter::setCompositionMode ( CompositionMode  mode)

Sets the composition mode to the given mode.

Warning
Only a QPainter operating on a QImage fully supports all composition modes. The RasterOp modes are supported for X11 as described in compositionMode().
See also
compositionMode()
void QPainter::setFont ( const QFont font)

Sets the painter's font to the given font. This font is used by subsequent drawText() methods. The text color is the same as the pen color.

If you set a font that is not available, CopperSpice finds a close match. font() will return what you set using setFont() and fontInfo() returns the font actually being used (which may be the same).

See also
font(), drawText()
void QPainter::setLayoutDirection ( Qt::LayoutDirection  direction)

Sets the layout direction used by the painter when drawing text to the specified direction. The default is Qt::LayoutDirectionAuto, which will implicitly determine the direction from the text drawn.

See also
QTextOption::setTextDirection(), layoutDirection(), drawText()
void QPainter::setMatrix ( const QMatrix matrix,
bool  combine = false
)
deprecated
void QPainter::setMatrixEnabled ( bool  enable)
deprecated
void QPainter::setOpacity ( qreal  opacity)

Sets the opacity of the painter to opacity. The value should be in the range 0.0 to 1.0, where 0.0 is fully transparent and 1.0 is fully opaque. Opacity set on the painter will apply to all drawing operations individually.

See also
opacity()
void QPainter::setPen ( const QColor color)

Sets the painter's pen to have style Qt::SolidLine, width 0 and the specified color.

void QPainter::setPen ( const QPen pen)

Sets the painter's pen to be the given pen. The pen defines how to draw lines and outlines, and it also defines the text color.

See also
pen()
void QPainter::setPen ( Qt::PenStyle  style)

Sets the painter's pen to have the given style, width 0 and black color.

void QPainter::setRedirected ( const QPaintDevice device,
QPaintDevice replacement,
const QPoint point = QPoint()
)
deprecatedstatic
Deprecated:
Use QWidget::render() instead.

Redirects all paint commands for the given paint device, to the replacement device. The optional point point defines an offset within the source device.

The redirection will not be effective until the begin() function has been called; make sure to call end() for the given device's painter (if any) before redirecting. Call restoreRedirected() to restore the previous redirection.

Making use of redirections in the QPainter API implies that QPainter::begin() and QPaintDevice destructors need to hold a mutex for a short period. This can impact performance.

See also
redirected(), restoreRedirected()
void QPainter::setRenderHint ( RenderHint  hint,
bool  on = true
)

Sets the given render hint on the painter if on is true, otherwise clears the render hint.

See also
setRenderHints(), renderHints()
void QPainter::setRenderHints ( RenderHints  hints,
bool  on = true
)

Sets the given render hints on the painter if on is true, otherwise clears the render hints.

See also
setRenderHint(), renderHints()
void QPainter::setTransform ( const QTransform transform,
bool  combine = false
)

Sets the world transformation matrix. If combine is true the specified transform is combined with the current matrix, otherwise it replaces the current matrix.

See also
transform(), setWorldTransform()
void QPainter::setViewport ( const QRect viewport)

Sets the painter's viewport rectangle to the given viewport and enables view transformations.

The viewport rectangle is part of the view transformation. The viewport specifies the device coordinate system. The window(), specifies the logical coordinate system.

The default viewport rectangle is the same as the device's rectangle.

See also
viewport(), viewTransformEnabled(), Window-Viewport Conversion
void QPainter::setViewport ( int  x,
int  y,
int  width,
int  height
)
inline

Sets the painter's viewport rectangle to be the rectangle beginning at (x, y) with the given width and height.

void QPainter::setViewTransformEnabled ( bool  enable)

Enables view transformations if enable is true, or disables view transformations if enable is false.

See also
viewTransformEnabled(), Window-Viewport Conversion
void QPainter::setWindow ( const QRect window)

Sets the painter's window to the given window, and enables view transformations. The window rectangle is part of the view transformation. The window specifies the logical coordinate system. The viewport() specifies the device coordinate system.

The default window rectangle is the same as the device's rectangle.

See also
window(), viewTransformEnabled(), Window-Viewport Conversion
void QPainter::setWindow ( int  x,
int  y,
int  width,
int  height
)
inline

Sets the painter's window to the rectangle beginning at (x, y) and the given width and height.

void QPainter::setWorldMatrix ( const QMatrix matrix,
bool  combine = false
)
deprecated
Deprecated:
Sets the transformation to the given matrix and enables transformations. It is advisable to use setWorldTransform() instead of this method to preserve the properties of perspective transformations.

If combine is true then the matrix is combined with the current transformation matrix. Otherwise matrix replaces the current transformation matrix. If matrix is the identity matrix and combine is false, this method calls setWorldMatrixEnabled(false).

The identity matrix is the matrix where QMatrix::m11() and QMatrix::m22() are 1.0 and the rest are 0.0.

The following methods can transform the coordinate system without using a QMatrix.

These four methods operate on the painter's worldMatrix() and are implemented as shown below.

void QPainter::rotate(qreal angle) {
matrix.rotate(angle);
setWorldMatrix(matrix, true);
}

When drawing on a QPicture the value for combine must be true.

See also
worldMatrix(), setWorldTransform()
void QPainter::setWorldMatrixEnabled ( bool  enable)

Enables transformations if enable is true, otherwise transformations are disabled. The world transformation matrix is not changed.

See also
worldMatrixEnabled(), worldTransform(), Coordinate Transformations
void QPainter::setWorldTransform ( const QTransform matrix,
bool  combine = false
)

Sets the world transformation matrix. If combine is true, the specified matrix is combined with the current matrix, otherwise it replaces the current matrix.

See also
worldTransform(), transform(), setTransform()
void QPainter::shear ( qreal  sh,
qreal  sv
)

Shears the coordinate system by (sh, sv).

See also
setWorldTransform(), Coordinate Transformations
void QPainter::strokePath ( const QPainterPath path,
const QPen pen
)

Draws the outline path with the pen specified by pen.

See also
fillPath(), drawing
bool QPainter::testRenderHint ( RenderHint  hint) const
inline

Returns true if hint is set, otherwise returns false.

See also
renderHints(), setRenderHint()
const QTransform & QPainter::transform ( ) const

Returns the world transformation matrix.

See also
setTransform(), worldTransform()
void QPainter::translate ( const QPoint offset)
inline

Translates the coordinate system by the given offset.

void QPainter::translate ( const QPointF offset)

Translates the coordinate system by the given offset.

See also
setWorldTransform(), Coordinate Transformations
void QPainter::translate ( qreal  dx,
qreal  dy
)
inline

Translates the coordinate system by the vector (dx, dy).

QRect QPainter::viewport ( ) const

Returns the viewport rectangle.

See also
setViewport(), setViewTransformEnabled()
bool QPainter::viewTransformEnabled ( ) const

Returns true if view transformation is enabled, otherwise returns false.

See also
setViewTransformEnabled(), worldTransform()
QRect QPainter::window ( ) const

Returns the window rectangle.

See also
setWindow(), setViewTransformEnabled()
const QMatrix & QPainter::worldMatrix ( ) const
deprecated
Deprecated:
Returns the world transformation matrix.

It is advisable to use worldTransform() because worldMatrix() does not preserve the properties of perspective transformations.

See also
setWorldMatrix()
bool QPainter::worldMatrixEnabled ( ) const

Returns true if world transformation is enabled, otherwise returns false.

See also
setWorldMatrixEnabled(), worldTransform(), Coordinate Transformations
const QTransform & QPainter::worldTransform ( ) const

Returns the world transformation matrix.

See also
setWorldTransform()
