QGraphicsSceneEvent Class Reference

The QGraphicsSceneEvent class provides a base class for all graphics view related events. More...

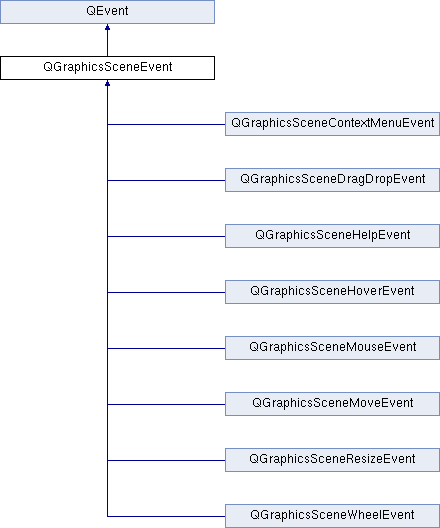

Inheritance diagram for QGraphicsSceneEvent:
QEvent QGraphicsSceneContextMenuEvent QGraphicsSceneDragDropEvent QGraphicsSceneHelpEvent QGraphicsSceneHoverEvent QGraphicsSceneMouseEvent QGraphicsSceneMoveEvent QGraphicsSceneResizeEvent QGraphicsSceneWheelEvent

Public Methods

 ~QGraphicsSceneEvent ()

QWidgetwidget () const

- Public Methods inherited from QEvent
 QEvent (const QEvent &other)

 QEvent (Type type)

virtual ~QEvent ()

void accept ()

void ignore ()

bool isAccepted () const

QEvent & operator= (const QEvent &other)

void setAccepted (bool accepted)

bool spontaneous () const

Type type () const


Additional Inherited Members

- Public Types inherited from QEvent
enum  Type

- Static Public Methods inherited from QEvent
static int registerEventType (int hint=-1)


Detailed Description

The QGraphicsSceneEvent class provides a base class for all graphics view related events.

When a QGraphicsView receives CopperSpice mouse, keyboard, and drag and drop events (QMouseEvent, QKeyEvent, QDragEvent, etc.), it translates them into instances of QGraphicsSceneEvent subclasses and forwards them to the QGraphicsScene it displays. The scene then forwards the events to the relevant items.

For example, when a QGraphicsView receives a QMouseEvent of type MousePress as a response to a user click, the view sends a QGraphicsSceneMouseEvent of type GraphicsSceneMousePress to the underlying QGraphicsScene through its mousePressEvent() function. The default QGraphicsScene::mousePressEvent() implementation determines which item was clicked and forwards the event to QGraphicsItem::mousePressEvent().

Subclasses such as QGraphicsSceneMouseEvent and QGraphicsSceneContextMenuEvent provide the coordinates from the original QEvent in screen, scene, and item coordinates (see screenPos(), scenePos(), and pos()). The item coordinates are set by the QGraphicsScene before it forwards the event to the event to a QGraphicsItem. The mouse events also add the possibility to retrieve the coordinates from the last event received by the view (see lastScreenPos(), lastScenePos(), and lastPos()).

See also
QEvent

Constructor & Destructor Documentation

QGraphicsSceneEvent::~QGraphicsSceneEvent ( )

Destroys the event.

Method Documentation

QWidget * QGraphicsSceneEvent::widget ( ) const

Returns the widget where the event originated or a nullptr if the event originates from another application.
