QWindowsVistaStyle Class Reference

Provides a look and feel suitable for applications on Microsoft Windows Vista. More...

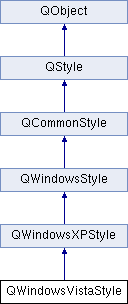

Inheritance diagram for QWindowsVistaStyle:
QWindowsXPStyle QWindowsStyle QCommonStyle QStyle QObject

Public Methods

 QWindowsVistaStyle ()

void drawComplexControl (ComplexControl control, const QStyleOptionComplex *option, QPainter *painter, const QWidget *widget) const override

void drawControl (ControlElement element, const QStyleOption *option, QPainter *painter, const QWidget *widget) const override

void drawPrimitive (PrimitiveElement element, const QStyleOption *option, QPainter *painter, const QWidget *widget=nullptr) const override

SubControl hitTestComplexControl (ComplexControl control, const QStyleOptionComplex *option, const QPoint &pos, const QWidget *widget=nullptr) const override

int pixelMetric (PixelMetric metric, const QStyleOption *option=nullptr, const QWidget *widget=nullptr) const override

void polish (QApplication *app) override

void polish (QPalette &pal) override

void polish (QWidget *widget) override

QSize sizeFromContents (ContentsType type, const QStyleOption *option, const QSize &size, const QWidget *widget) const override

QIcon standardIcon (StandardPixmap standardIcon, const QStyleOption *option=nullptr, const QWidget *widget=nullptr) const

QPalette standardPalette () const override

QPixmap standardPixmap (StandardPixmap standardPixmap, const QStyleOption *option, const QWidget *widget=nullptr) const override

int styleHint (StyleHint hint, const QStyleOption *opt=nullptr, const QWidget *widget=nullptr, QStyleHintReturn *styleHintReturn=nullptr) const override

QRect subControlRect (ComplexControl control, const QStyleOptionComplex *option, SubControl sc, const QWidget *widget) const override

QRect subElementRect (SubElement element, const QStyleOption *option, const QWidget *widget) const override

void unpolish (QApplication *app) override

void unpolish (QWidget *widget) override

- Public Methods inherited from QWindowsXPStyle
 QWindowsXPStyle ()

 ~QWindowsXPStyle ()

void drawComplexControl (ComplexControl cc, const QStyleOptionComplex *option, QPainter *painter, const QWidget *widget=nullptr) const override

void drawControl (ControlElement element, const QStyleOption *option, QPainter *painter, const QWidget *widget=nullptr) const override

void drawPrimitive (PrimitiveElement pe, const QStyleOption *option, QPainter *painter, const QWidget *widget=nullptr) const override

int pixelMetric (PixelMetric pm, const QStyleOption *option=nullptr, const QWidget *widget=nullptr) const override

void polish (QApplication *app) override

void polish (QPalette &palette) override

void polish (QWidget *widget) override

QSize sizeFromContents (ContentsType ct, const QStyleOption *option, const QSize &contentsSize, const QWidget *widget=nullptr) const override

QIcon standardIcon (StandardPixmap standardPixmap, const QStyleOption *option=nullptr, const QWidget *widget=nullptr) const override

QPalette standardPalette () const override

QPixmap standardPixmap (StandardPixmap standardPixmap, const QStyleOption *option, const QWidget *widget=nullptr) const override

int styleHint (StyleHint hint, const QStyleOption *option=nullptr, const QWidget *widget=nullptr, QStyleHintReturn *styleHintReturn=nullptr) const override

QRect subControlRect (ComplexControl cc, const QStyleOptionComplex *option, SubControl subControl, const QWidget *widget=nullptr) const override

QRect subElementRect (SubElement subElement, const QStyleOption *option, const QWidget *widget=nullptr) const override

void unpolish (QApplication *app) override

void unpolish (QWidget *widget) override

- Public Methods inherited from QWindowsStyle
 QWindowsStyle ()

 ~QWindowsStyle ()

- Public Methods inherited from QCommonStyle
 QCommonStyle ()

 ~QCommonStyle ()

QPixmap generatedIconPixmap (QIcon::Mode iconMode, const QPixmap &pixmap, const QStyleOption *option) const override

int layoutSpacing (QSizePolicy::ControlType control1, QSizePolicy::ControlType control2, Qt::Orientation orientation, const QStyleOption *option=nullptr, const QWidget *widget=nullptr) const override

- Public Methods inherited from QStyle
 QStyle ()

virtual ~QStyle ()

int combinedLayoutSpacing (QSizePolicy::ControlTypes controls1, QSizePolicy::ControlTypes controls2, Qt::Orientation orientation, QStyleOption *option=nullptr, QWidget *widget=nullptr) const

virtual void drawItemPixmap (QPainter *painter, const QRect &rect, int alignment, const QPixmap &pixmap) const

virtual void drawItemText (QPainter *painter, const QRect &rect, int alignment, const QPalette &palette, bool enabled, const QString &text, QPalette::ColorRole textRole=QPalette::NoRole) const

virtual QRect itemPixmapRect (const QRect &rect, int alignment, const QPixmap &pixmap) const

virtual QRect itemTextRect (const QFontMetrics &metrics, const QRect &rect, int alignment, bool enabled, const QString &text) const

const QStyle * proxy () const

- Public Methods inherited from QObject
 QObject (QObject *parent=nullptr)

 ~QObject ()

bool blockSignals (bool block)

const QList< QObject * > & children () const

bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void dumpObjectInfo ()

void dumpObjectTree ()

QList< QStringdynamicPropertyNames () const

virtual bool event (QEvent *event)

template<typename T >
findChild (const QString &childName=QString ()) const

template<class T >
QList< T > findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T > findChildren (const QString &objName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool inherits (const QString &className) const

void installEventFilter (QObject *filterObj)

bool isWidgetType () const

bool isWindowType () const

void killTimer (int id)

const QMetaObjectmetaObject () const

void moveToThread (QThread *targetThread)

QString objectName () const

QObject * parent () const

template<class T = QVariant>
property (const QString &name) const

void removeEventFilter (QObject *obj)

void setObjectName (const QString &name)

void setParent (QObject *parent)

bool setProperty (const QString &name, const QVariant &value)

bool signalsBlocked () const

int startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThreadthread () const


Friends

class QStyleFactory


Additional Inherited Members

- Public Types inherited from QStyle
enum  ComplexControl

enum  ContentsType

enum  ControlElement

enum  PixelMetric

enum  PrimitiveElement

enum  RequestSoftwareInputPanel

enum  StandardPixmap

enum  StyleHint

enum  SubElement

- Public Signals inherited from QObject
void destroyed (QObject *obj=nullptr)

void objectNameChanged (const QString &objectName)

- Public Slots inherited from QObject
void deleteLater ()

- Static Public Methods inherited from QStyle
static QRect alignedRect (Qt::LayoutDirection direction, Qt::Alignment alignment, const QSize &size, const QRect &rect)

static int sliderPositionFromValue (int min, int max, int logicalValue, int span, bool upsideDown=false)

static int sliderValueFromPosition (int min, int max, int position, int span, bool upsideDown=false)

static Qt::Alignment visualAlignment (Qt::LayoutDirection direction, Qt::Alignment alignment)

static QPoint visualPos (Qt::LayoutDirection direction, const QRect &boundingRect, const QPoint &logicalPosition)

static QRect visualRect (Qt::LayoutDirection direction, const QRect &boundingRect, const QRect &logicalRect)

- Static Public Methods inherited from QObject
static bool connect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool connect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool disconnect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObjectstaticMetaObject ()

static QString tr (const char *text, const char *comment=nullptr, std::optional< int > numArg=std::optional< int >())

- Protected Methods inherited from QWindowsStyle
bool eventFilter (QObject *object, QEvent *event) override

- Protected Methods inherited from QObject
virtual void childEvent (QChildEvent *event)

virtual void connectNotify (const QMetaMethod &signalMethod) const

virtual void customEvent (QEvent *event)

virtual void disconnectNotify (const QMetaMethod &signalMethod) const

bool isSignalConnected (const QMetaMethod &signalMethod) const

int receivers (const QString &signal) const

QObject * sender () const

int senderSignalIndex () const

virtual void timerEvent (QTimerEvent *event)

- Properties inherited from QObject
 objectName


Detailed Description

The QWindowsVistaStyle class provides a look and feel suitable for applications on Microsoft Windows Vista.

Warning
This style is only available on the Windows Vista platform because it makes use of Windows Vista's style engine.
See also
QWindowsXPStyle, QWindowsStyle, QMacStyle, QGtkStyle, QFusionStyle

Constructor & Destructor Documentation

QWindowsVistaStyle::QWindowsVistaStyle ( )

Constructs a QWindowsVistaStyle object.

Method Documentation

void QWindowsVistaStyle::drawComplexControl ( ComplexControl  control,
const QStyleOptionComplex option,
QPainter painter,
const QWidget widget
) const
overridevirtual

Reimplemented from QStyle::drawComplexControl().

Reimplemented from QWindowsStyle.

void QWindowsVistaStyle::drawControl ( ControlElement  element,
const QStyleOption option,
QPainter painter,
const QWidget widget
) const
overridevirtual

Reimplemented from QStyle::drawControl().

Reimplemented from QWindowsStyle.

void QWindowsVistaStyle::drawPrimitive ( PrimitiveElement  pe,
const QStyleOption option,
QPainter painter,
const QWidget widget = nullptr
) const
overridevirtual

Reimplemented from QStyle::drawPrimitive().

Reimplemented from QWindowsStyle.

SubControl QWindowsVistaStyle::hitTestComplexControl ( ComplexControl  control,
const QStyleOptionComplex option,
const QPoint point,
const QWidget widget = nullptr
) const
overridevirtual

Reimplemented from QStyle::hitTestComplexControl().

Reimplemented from QCommonStyle.

int QWindowsVistaStyle::pixelMetric ( PixelMetric  pm,
const QStyleOption option = nullptr,
const QWidget widget = nullptr
) const
overridevirtual

Reimplemented from QStyle::pixelMetric().

Reimplemented from QWindowsStyle.

void QWindowsVistaStyle::polish ( QApplication app)
overridevirtual

Reimplemented from QStyle::polish().

Reimplemented from QWindowsStyle.

void QWindowsVistaStyle::polish ( QPalette palette)
overridevirtual

Reimplemented from QStyle::polish().

Reimplemented from QWindowsStyle.

void QWindowsVistaStyle::polish ( QWidget widget)
overridevirtual

Reimplemented from QStyle::polish().

Reimplemented from QWindowsStyle.

QSize QWindowsVistaStyle::sizeFromContents ( ContentsType  ct,
const QStyleOption option,
const QSize contentsSize,
const QWidget widget
) const
overridevirtual

Reimplemented from QStyle::sizeFromContents().

Reimplemented from QWindowsStyle.

QIcon QWindowsVistaStyle::standardIcon ( StandardPixmap  standardIcon,
const QStyleOption option = nullptr,
const QWidget widget = nullptr
) const
virtual

Returns an icon for the given standardIcon.

The standardIcon is a standard pixmap which can follow some existing GUI style or guideline. The option argument can be used to pass extra information required when defining the appropriate icon. The widget argument is optional and can also be used to aid the determination of the icon.

Reimplemented from QWindowsStyle.

QPalette QWindowsVistaStyle::standardPalette ( ) const
overridevirtual

Returns the style's standard palette.

Note that on systems that support system colors, the style's standard palette is not used. In particular, the Windows XP, Vista, and Mac styles do not use the standard palette, but make use of native theme engines. With these styles, you should not set the palette with QApplication::setStandardPalette().

Reimplemented from QStyle.

QPixmap QWindowsVistaStyle::standardPixmap ( StandardPixmap  standardPixmap,
const QStyleOption option,
const QWidget widget = nullptr
) const
overridevirtual

Reimplemented from QStyle::standardPixmap().

Reimplemented from QWindowsStyle.

int QWindowsVistaStyle::styleHint ( StyleHint  hint,
const QStyleOption option = nullptr,
const QWidget widget = nullptr,
QStyleHintReturn styleHintReturn = nullptr
) const
overridevirtual

Reimplemented from QStyle::styleHint().

Reimplemented from QWindowsStyle.

QRect QWindowsVistaStyle::subControlRect ( ComplexControl  control,
const QStyleOptionComplex option,
SubControl  subControl,
const QWidget widget
) const
overridevirtual

Reimplemented from QStyle::subControlRect().

Reimplemented from QCommonStyle.

QRect QWindowsVistaStyle::subElementRect ( SubElement  subElement,
const QStyleOption option,
const QWidget widget
) const
overridevirtual

Reimplemented from QStyle::subElementRect().

Reimplemented from QWindowsStyle.

void QWindowsVistaStyle::unpolish ( QApplication app)
overridevirtual

Reimplemented from QStyle::unpolish().

Reimplemented from QWindowsStyle.

void QWindowsVistaStyle::unpolish ( QWidget widget)
overridevirtual

Reimplemented from QStyle::unpolish().

Reimplemented from QWindowsStyle.
