QAbstractItemDelegate Class Referenceabstract

The QAbstractItemDelegate class is used to display and edit data items from a model. More...

Inheritance diagram for QAbstractItemDelegate:
QObject QItemDelegate QStyledItemDelegate QSqlRelationalDelegate

Public Types

enum  EndEditHint


Public Signals

void closeEditor (QWidget *editor, QAbstractItemDelegate::EndEditHint hint=NoHint)

void commitData (QWidget *editor)

void sizeHintChanged (const QModelIndex &index)

- Public Signals inherited from QObject
void destroyed (QObject *obj=nullptr)

void objectNameChanged (const QString &objectName)


Public Methods

 QAbstractItemDelegate (QObject *parent=nullptr)

virtual ~QAbstractItemDelegate ()

virtual QWidgetcreateEditor (QWidget *parent, const QStyleOptionViewItem &option, const QModelIndex &index) const

virtual void destroyEditor (QWidget *editor, const QModelIndex &index) const

virtual bool editorEvent (QEvent *event, QAbstractItemModel *model, const QStyleOptionViewItem &option, const QModelIndex &index)

virtual bool helpEvent (QHelpEvent *event, QAbstractItemView *view, const QStyleOptionViewItem &option, const QModelIndex &index)

virtual void paint (QPainter *painter, const QStyleOptionViewItem &option, const QModelIndex &index) const = 0

virtual void setEditorData (QWidget *editor, const QModelIndex &index) const

virtual void setModelData (QWidget *editor, QAbstractItemModel *model, const QModelIndex &index) const

virtual QSize sizeHint (const QStyleOptionViewItem &option, const QModelIndex &index) const = 0

virtual void updateEditorGeometry (QWidget *editor, const QStyleOptionViewItem &option, const QModelIndex &index) const

- Public Methods inherited from QObject
 QObject (QObject *parent=nullptr)

 ~QObject ()

bool blockSignals (bool block)

const QList< QObject * > & children () const

bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void dumpObjectInfo ()

void dumpObjectTree ()

QList< QStringdynamicPropertyNames () const

virtual bool event (QEvent *event)

virtual bool eventFilter (QObject *watched, QEvent *event)

template<typename T >
findChild (const QString &childName=QString ()) const

template<class T >
QList< T > findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T > findChildren (const QString &objName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool inherits (const QString &className) const

void installEventFilter (QObject *filterObj)

bool isWidgetType () const

bool isWindowType () const

void killTimer (int id)

const QMetaObjectmetaObject () const

void moveToThread (QThread *targetThread)

QString objectName () const

QObject * parent () const

template<class T = QVariant>
property (const QString &name) const

void removeEventFilter (QObject *obj)

void setObjectName (const QString &name)

void setParent (QObject *parent)

bool setProperty (const QString &name, const QVariant &value)

bool signalsBlocked () const

int startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThreadthread () const


Static Public Methods

static QString elidedText (const QFontMetrics &fontMetrics, int width, Qt::TextElideMode mode, const QString &text)

- Static Public Methods inherited from QObject
static bool connect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool connect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool disconnect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObjectstaticMetaObject ()

static QString tr (const char *text, const char *comment=nullptr, std::optional< int > numArg=std::optional< int >())


Additional Inherited Members

- Public Slots inherited from QObject
void deleteLater ()

- Protected Methods inherited from QObject
virtual void childEvent (QChildEvent *event)

virtual void connectNotify (const QMetaMethod &signalMethod) const

virtual void customEvent (QEvent *event)

virtual void disconnectNotify (const QMetaMethod &signalMethod) const

bool isSignalConnected (const QMetaMethod &signalMethod) const

int receivers (const QString &signal) const

QObject * sender () const

int senderSignalIndex () const

virtual void timerEvent (QTimerEvent *event)

- Properties inherited from QObject
 objectName


Detailed Description

The QAbstractItemDelegate class is used to display and edit data items from a model.

A QAbstractItemDelegate provides the interface and common functionality for delegates in the model/view architecture. Delegates display individual items in views, and handle the editing of model data.

The QAbstractItemDelegate class is one of the Model/View Classes and is part of the Model/View Programming.

To render an item in a custom way, you must implement paint() and sizeHint(). The QItemDelegate class provides default implementations for these functions; if you do not need custom rendering, subclass that class instead.

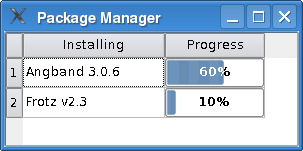

We give an example of drawing a progress bar in items; in our case for a package management program.

We create the WidgetDelegate class, which inherits from QStyledItemDelegate. We do the drawing in the paint() function:

void WidgetDelegate::paint(QPainter *painter, const QStyleOptionViewItem &option, const QModelIndex &index) const
{
if (index.column() == 1) {
int progress = index.data().toInt();
QStyleOptionProgressBar progressBarOption;
progressBarOption.rect = option.rect;
progressBarOption.minimum = 0;
progressBarOption.maximum = 100;
progressBarOption.progress = progress;
progressBarOption.text = QString::number(progress) + "%";
progressBarOption.textVisible = true;
QApplication::style()->drawControl(QStyle::CE_ProgressBar, &progressBarOption, painter);
} else
QStyledItemDelegate::paint(painter, option, index);

Notice that we use a QStyleOptionProgressBar and initialize its members. We can then use the current QStyle to draw it.

To provide custom editing, there are two approaches that can be used. The first approach is to create an editor widget and display it directly on top of the item. To do this you must reimplement createEditor() to provide an editor widget, setEditorData() to populate the editor with the data from the model, and setModelData() so that the delegate can update the model with data from the editor.

The second approach is to handle user events directly by reimplementing editorEvent().

See also
Model/View Programming, QItemDelegate, QStyledItemDelegate, QStyle

Member Enumeration Documentation

This enum describes the different hints that the delegate can give to the model and view components to make editing data in a model a comfortable experience for the user.

ConstantValueDescription
QAbstractItemDelegate::NoHint0There is no recommended action to be performed.

These hints let the delegate influence the behavior of the view:

ConstantValueDescription
QAbstractItemDelegate::EditNextItem1The view should use the delegate to open an editor on the next item in the view.
QAbstractItemDelegate::EditPreviousItem2The view should use the delegate to open an editor on the previous item in the view.

Note that custom views may interpret the concepts of next and previous differently.

The following hints are most useful when models are used that cache data, such as those that manipulate data locally in order to increase performance or conserve network bandwidth.

ConstantValueDescription
QAbstractItemDelegate::SubmitModelCache3If the model caches data, it should write out cached data to the underlying data store.
QAbstractItemDelegate::RevertModelCache4If the model caches data, it should discard cached data and replace it with data from the underlying data store.

Although models and views should respond to these hints in appropriate ways, custom components may ignore any or all of them if they are not relevant.

Constructor & Destructor Documentation

QAbstractItemDelegate::QAbstractItemDelegate ( QObject parent = nullptr)
explicit

Construct a new abstract item delegate with the given parent.

QAbstractItemDelegate::~QAbstractItemDelegate ( )
virtual

Destroys the abstract item delegate.

Method Documentation

void QAbstractItemDelegate::closeEditor ( QWidget editor,
QAbstractItemDelegate::EndEditHint  hint = NoHint
)
signal

This signal is emitted when the user has finished editing an item using the specified editor.

The hint provides a way for the delegate to influence how the model and view behave after editing is completed. It indicates to these components what action should be performed next to provide a comfortable editing experience for the user. For example, if EditNextItem is specified, the view should use a delegate to open an editor on the next item in the model.

See also
EndEditHint
void QAbstractItemDelegate::commitData ( QWidget editor)
signal

This signal must be emitted when the editor widget has completed editing the data, and wants to write it back into the model.

QWidget * QAbstractItemDelegate::createEditor ( QWidget parent,
const QStyleOptionViewItem option,
const QModelIndex index
) const
virtual

Returns the editor to be used for editing the data item with the given index. Note that the index contains information about the model being used. The editor's parent widget is specified by parent, and the item options by option.

The base implementation returns a nullptr. If you want custom editing you will need to reimplement this method. The returned editor widget should have Qt::StrongFocus, otherwise, QMouseEvents received by the widget will propagate to the view. The view's background will shine through unless the editor paints its own background (e.g., with setAutoFillBackground()).

See also
setModelData(), setEditorData()

Reimplemented in QItemDelegate, QStyledItemDelegate, and QSqlRelationalDelegate.

void QAbstractItemDelegate::destroyEditor ( QWidget editor,
const QModelIndex index
) const
virtual

Called when the editor is no longer needed for editing the data item with the given index and should be destroyed. The default behavior is a call to deleteLater on the editor. It is possible e.g. to avoid this delete by reimplementing this method.

See also
createEditor()
bool QAbstractItemDelegate::editorEvent ( QEvent event,
QAbstractItemModel model,
const QStyleOptionViewItem option,
const QModelIndex index
)
virtual

When editing of an item starts, this function is called with the event that triggered the editing, the model, the index of the item, and the option used for rendering the item.

Mouse events are sent to editorEvent() even if they do not start editing of the item. This can, for instance, be useful if you wish to open a context menu when the right mouse button is pressed on an item.

The base implementation returns false (indicating that it has not handled the event).

Reimplemented in QItemDelegate, and QStyledItemDelegate.

QString QAbstractItemDelegate::elidedText ( const QFontMetrics fontMetrics,
int  width,
Qt::TextElideMode  mode,
const QString text
)
deprecatedstatic
Deprecated:
Use QFontMetrics::elidedText() instead.

If you have code similar to the following rewrite as shown.

QFontMetrics fm = ...
// old version
QString str = QAbstractItemDelegate::elidedText(fm, width, mode, text);
// new version
QString str = fm.elidedText(text, mode, width);
bool QAbstractItemDelegate::helpEvent ( QHelpEvent event,
QAbstractItemView view,
const QStyleOptionViewItem option,
const QModelIndex index
)
virtual

Whenever a help event occurs, this function is called with the event view option and the index that corresponds to the item where the event occurs.

Returns true if the delegate can handle the event, otherwise returns false. A return value of true indicates that the data obtained using the index had the required role.

For QEvent::ToolTip and QEvent::WhatsThis events that were handled successfully, the relevant popup may be shown depending on the user's system configuration.

See also
QHelpEvent
void QAbstractItemDelegate::paint ( QPainter painter,
const QStyleOptionViewItem option,
const QModelIndex index
) const
pure virtual

This pure abstract function must be reimplemented if you want to provide custom rendering. Use the painter and style option to render the item specified by the item index.

If you reimplement this you must also reimplement sizeHint().

Implemented in QItemDelegate, and QStyledItemDelegate.

void QAbstractItemDelegate::setEditorData ( QWidget editor,
const QModelIndex index
) const
virtual

Sets the contents of the given editor to the data for the item at the given index. Note that the index contains information about the model being used.

The base implementation does nothing. If you want custom editing you will need to reimplement this function.

See also
setModelData()

Reimplemented in QItemDelegate, QStyledItemDelegate, and QSqlRelationalDelegate.

void QAbstractItemDelegate::setModelData ( QWidget editor,
QAbstractItemModel model,
const QModelIndex index
) const
virtual

Sets the data for the item at the given index in the model to the contents of the given editor.

The base implementation does nothing. If you want custom editing you will need to reimplement this function.

See also
setEditorData()

Reimplemented in QItemDelegate, QStyledItemDelegate, and QSqlRelationalDelegate.

QSize QAbstractItemDelegate::sizeHint ( const QStyleOptionViewItem option,
const QModelIndex index
) const
pure virtual

This pure abstract function must be reimplemented if you want to provide custom rendering. The options are specified by option and the model item by index.

If you reimplement this you must also reimplement paint().

Implemented in QItemDelegate, and QStyledItemDelegate.

void QAbstractItemDelegate::sizeHintChanged ( const QModelIndex index)
signal

This signal must be emitted when the sizeHint() of index changed.

Views automatically connect to this signal and relayout items as necessary.

void QAbstractItemDelegate::updateEditorGeometry ( QWidget editor,
const QStyleOptionViewItem option,
const QModelIndex index
) const
virtual

Updates the geometry of the editor for the item with the given index, according to the rectangle specified in the option. If the item has an internal layout, the editor will be laid out accordingly. Note that the index contains information about the model being used.

The base implementation does nothing. If you want custom editing you must reimplement this function.

Reimplemented in QItemDelegate, and QStyledItemDelegate.
