QTextFrameFormat Class Reference

The QTextFrameFormat class provides formatting information for frames in a QTextDocument. More...

Inheritance diagram for QTextFrameFormat:
QTextFormat QTextTableFormat

Public Types

enum  BorderStyle

enum  Position

- Public Types inherited from QTextFormat
enum  FormatType

enum  ObjectTypes

enum  Property


Public Methods

 QTextFrameFormat ()

qreal border () const

QBrush borderBrush () const

BorderStyle borderStyle () const

qreal bottomMargin () const

QTextLength height () const

bool isValid () const

qreal leftMargin () const

qreal margin () const

qreal padding () const

PageBreakFlags pageBreakPolicy () const

Position position () const

qreal rightMargin () const

void setBorder (qreal border)

void setBorderBrush (const QBrush &brush)

void setBorderStyle (BorderStyle style)

void setBottomMargin (qreal margin)

void setHeight (const QTextLength &height)

void setHeight (qreal height)

void setLeftMargin (qreal margin)

void setMargin (qreal margin)

void setPadding (qreal padding)

void setPageBreakPolicy (PageBreakFlags flags)

void setPosition (Position f)

void setRightMargin (qreal margin)

void setTopMargin (qreal margin)

void setWidth (const QTextLength &length)

void setWidth (qreal width)

qreal topMargin () const

QTextLength width () const

- Public Methods inherited from QTextFormat
 QTextFormat ()

 QTextFormat (const QTextFormat &other)

 QTextFormat (int type)

 ~QTextFormat ()

QBrush background () const

bool boolProperty (int propertyId) const

QBrush brushProperty (int propertyId) const

void clearBackground ()

void clearForeground ()

void clearProperty (int propertyId)

QColor colorProperty (int propertyId) const

qreal doubleProperty (int propertyId) const

QBrush foreground () const

bool hasProperty (int propertyId) const

int intProperty (int propertyId) const

bool isBlockFormat () const

bool isCharFormat () const

bool isEmpty () const

bool isFrameFormat () const

bool isImageFormat () const

bool isListFormat () const

bool isTableCellFormat () const

bool isTableFormat () const

bool isValid () const

Qt::LayoutDirection layoutDirection () const

QTextLength lengthProperty (int propertyId) const

QVector< QTextLengthlengthVectorProperty (int propertyId) const

void merge (const QTextFormat &other)

int objectIndex () const

int objectType () const

 operator QVariant () const

bool operator!= (const QTextFormat &other) const

QTextFormat & operator= (const QTextFormat &other)

bool operator== (const QTextFormat &other) const

QPen penProperty (int propertyId) const

QMap< int, QVariantproperties () const

QVariant property (int propertyId) const

int propertyCount () const

void setBackground (const QBrush &brush)

void setForeground (const QBrush &brush)

void setLayoutDirection (Qt::LayoutDirection direction)

void setObjectIndex (int object)

void setObjectType (int type)

void setProperty (int propertyId, const QVariant &value)

void setProperty (int propertyId, const QVector< QTextLength > &lengths)

QString stringProperty (int propertyId) const

void swap (QTextFormat &other)

QTextBlockFormat toBlockFormat () const

QTextCharFormat toCharFormat () const

QTextFrameFormat toFrameFormat () const

QTextImageFormat toImageFormat () const

QTextListFormat toListFormat () const

QTextTableCellFormat toTableCellFormat () const

QTextTableFormat toTableFormat () const

int type () const


Friends

class QTextFormat


Detailed Description

The QTextFrameFormat class provides formatting information for frames in a QTextDocument.

A text frame groups together one or more blocks of text, providing a layer of structure larger than the paragraph. The format of a frame specifies how it is rendered and positioned on the screen. It does not directly specify the behavior of the text formatting within, but provides constraints on the layout of its children.

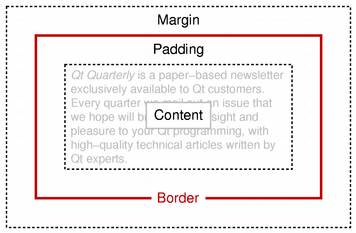

The frame format defines the width() and height() of the frame on the screen. Each frame can have a border() that surrounds its contents with a rectangular box. The border is surrounded by a margin() around the frame, and the contents of the frame are kept separate from the border by the frame's padding(). This scheme is similar to the box model used by Cascading Style Sheets for HTML pages.

The position() of a frame is set using setPosition() and determines how it is located relative to the surrounding text.

The validity of a QTextFrameFormat object can be determined with the isValid() function.

See also
QTextFrame, QTextBlockFormat

Member Enumeration Documentation

This enum describes different border styles for the text frame.

ConstantValue
QTextFrameFormat::BorderStyle_None0
QTextFrameFormat::BorderStyle_Dotted1
QTextFrameFormat::BorderStyle_Dashed2
QTextFrameFormat::BorderStyle_Solid3
QTextFrameFormat::BorderStyle_Double4
QTextFrameFormat::BorderStyle_DotDash5
QTextFrameFormat::BorderStyle_DotDotDash6
QTextFrameFormat::BorderStyle_Groove7
QTextFrameFormat::BorderStyle_Ridge8
QTextFrameFormat::BorderStyle_Inset9
QTextFrameFormat::BorderStyle_Outset10
See also
borderStyle(), FrameBorderStyle

This enum describes how a frame is located relative to the surrounding text.

ConstantValue
QTextFrameFormat::InFlow0
QTextFrameFormat::FloatLeft1
QTextFrameFormat::FloatRight2
See also
position(), CssFloat

Constructor & Destructor Documentation

QTextFrameFormat::QTextFrameFormat ( )

Constructs a text frame format object with the default properties.

Method Documentation

qreal QTextFrameFormat::border ( ) const
inline

Returns the width of the border in pixels.

See also
setBorder()
QBrush QTextFrameFormat::borderBrush ( ) const
inline

Returns the brush used for the frame's border.

See also
setBorderBrush()
BorderStyle QTextFrameFormat::borderStyle ( ) const
inline

Returns the style of the frame's border.

See also
setBorderStyle()
qreal QTextFrameFormat::bottomMargin ( ) const

Returns the width of the frame's bottom margin in pixels.

See also
setBottomMargin()
QTextLength QTextFrameFormat::height ( ) const
inline

Returns the height of the frame's border rectangle.

See also
setHeight()
bool QTextFrameFormat::isValid ( ) const
inline

Returns true if the format description is valid, otherwise returns false.

qreal QTextFrameFormat::leftMargin ( ) const

Returns the width of the frame's left margin in pixels.

See also
setLeftMargin()
qreal QTextFrameFormat::margin ( ) const
inline

Returns the width of the frame's external margin in pixels.

See also
setMargin()
qreal QTextFrameFormat::padding ( ) const
inline

Returns the width of the frame's internal padding in pixels.

See also
setPadding()
PageBreakFlags QTextFrameFormat::pageBreakPolicy ( ) const
inline

Returns the currently set page break policy for the frame/table. The default is QTextFormat::PageBreak_Auto.

See also
setPageBreakPolicy()
Position QTextFrameFormat::position ( ) const
inline

Returns the positioning policy for frames with this frame format.

See also
setPosition()
qreal QTextFrameFormat::rightMargin ( ) const

Returns the width of the frame's right margin in pixels.

See also
setRightMargin()
void QTextFrameFormat::setBorder ( qreal  aborder)
inline

Sets the width (in pixels) of the frame's border.

See also
border()
void QTextFrameFormat::setBorderBrush ( const QBrush brush)
inline

Sets the brush used for the frame's border.

See also
borderBrush()
void QTextFrameFormat::setBorderStyle ( BorderStyle  style)
inline

Sets the style of the frame's border.

See also
borderStyle()
void QTextFrameFormat::setBottomMargin ( qreal  amargin)
inline

Sets the frame's bottom margin in pixels.

See also
bottomMargin()
void QTextFrameFormat::setHeight ( const QTextLength aheight)
inline

Sets the frame's height.

See also
height()
void QTextFrameFormat::setHeight ( qreal  aheight)
inline

This is an overloaded function.

Sets the frame's height.

void QTextFrameFormat::setLeftMargin ( qreal  amargin)
inline

Sets the frame's left margin in pixels.

See also
leftMargin()
void QTextFrameFormat::setMargin ( qreal  margin)

Sets the frame's margin in pixels. This method also sets the left, right, top and bottom margins of the frame to the same value. The individual margins override the general margin.

See also
margin()
void QTextFrameFormat::setPadding ( qreal  apadding)
inline

Sets the width of the frame's internal padding in pixels.

See also
padding()
void QTextFrameFormat::setPageBreakPolicy ( PageBreakFlags  policy)
inline

Sets the page break policy for the frame/table to policy.

See also
pageBreakPolicy()
void QTextFrameFormat::setPosition ( Position  policy)
inline

Sets the policy for positioning frames with this frame format.

See also
position()
void QTextFrameFormat::setRightMargin ( qreal  amargin)
inline

Sets the frame's right margin in pixels.

See also
rightMargin()
void QTextFrameFormat::setTopMargin ( qreal  amargin)
inline

Sets the frame's top margin in pixels.

See also
topMargin()
void QTextFrameFormat::setWidth ( const QTextLength width)
inline

Sets the frame's border rectangle's width.

See also
width(), QTextLength
void QTextFrameFormat::setWidth ( qreal  awidth)
inline

This is an overloaded function.

Convenience method that sets the width of the frame's border rectangle's width to the specified fixed width.

qreal QTextFrameFormat::topMargin ( ) const

Returns the width of the frame's top margin in pixels.

See also
setTopMargin()
QTextLength QTextFrameFormat::width ( ) const
inline

Returns the width of the frame's border rectangle.

See also
setWidth(), QTextLength
