CopperSpice API  1.7.2
QTextTableFormat Class Reference

The QTextTableFormat class provides formatting information for tables in a QTextDocument. More...

Inheritance diagram for QTextTableFormat:
QTextFrameFormat QTextFormat

Public Methods

 QTextTableFormat ()

Qt::Alignment alignment () const

qreal cellPadding () const

qreal cellSpacing () const

void clearColumnWidthConstraints ()

int columns () const

QVector< QTextLengthcolumnWidthConstraints () const

int headerRowCount () const

bool isValid () const

void setAlignment (Qt::Alignment alignment)

void setCellPadding (qreal padding)

void setCellSpacing (qreal spacing)

void setColumnWidthConstraints (const QVector< QTextLength > &constraints)

void setHeaderRowCount (int count)

- Public Methods inherited from QTextFrameFormat
 QTextFrameFormat ()

qreal border () const

QBrush borderBrush () const

BorderStyle borderStyle () const

qreal bottomMargin () const

QTextLength height () const

bool isValid () const

qreal leftMargin () const

qreal margin () const

qreal padding () const

PageBreakFlags pageBreakPolicy () const

Position position () const

qreal rightMargin () const

void setBorder (qreal border)

void setBorderBrush (const QBrush &brush)

void setBorderStyle (BorderStyle style)

void setBottomMargin (qreal margin)

void setHeight (const QTextLength &height)

void setHeight (qreal height)

void setLeftMargin (qreal margin)

void setMargin (qreal margin)

void setPadding (qreal padding)

void setPageBreakPolicy (PageBreakFlags flags)

void setPosition (Position f)

void setRightMargin (qreal margin)

void setTopMargin (qreal margin)

void setWidth (const QTextLength &length)

void setWidth (qreal width)

qreal topMargin () const

QTextLength width () const

- Public Methods inherited from QTextFormat
 QTextFormat ()

 QTextFormat (const QTextFormat &other)

 QTextFormat (int type)

 ~QTextFormat ()

QBrush background () const

bool boolProperty (int propertyId) const

QBrush brushProperty (int propertyId) const

void clearBackground ()

void clearForeground ()

void clearProperty (int propertyId)

QColor colorProperty (int propertyId) const

qreal doubleProperty (int propertyId) const

QBrush foreground () const

bool hasProperty (int propertyId) const

int intProperty (int propertyId) const

bool isBlockFormat () const

bool isCharFormat () const

bool isEmpty () const

bool isFrameFormat () const

bool isImageFormat () const

bool isListFormat () const

bool isTableCellFormat () const

bool isTableFormat () const

bool isValid () const

Qt::LayoutDirection layoutDirection () const

QTextLength lengthProperty (int propertyId) const

QVector< QTextLengthlengthVectorProperty (int propertyId) const

void merge (const QTextFormat &other)

int objectIndex () const

int objectType () const

 operator QVariant () const

bool operator!= (const QTextFormat &other) const

QTextFormat & operator= (const QTextFormat &other)

bool operator== (const QTextFormat &other) const

QPen penProperty (int propertyId) const

QMap< int, QVariantproperties () const

QVariant property (int propertyId) const

int propertyCount () const

void setBackground (const QBrush &brush)

void setForeground (const QBrush &brush)

void setLayoutDirection (Qt::LayoutDirection direction)

void setObjectIndex (int object)

void setObjectType (int type)

void setProperty (int propertyId, const QVariant &value)

void setProperty (int propertyId, const QVector< QTextLength > &lengths)

QString stringProperty (int propertyId) const

void swap (QTextFormat &other)

QTextBlockFormat toBlockFormat () const

QTextCharFormat toCharFormat () const

QTextFrameFormat toFrameFormat () const

QTextImageFormat toImageFormat () const

QTextListFormat toListFormat () const

QTextTableCellFormat toTableCellFormat () const

QTextTableFormat toTableFormat () const

int type () const


Friends

class QTextFormat


Additional Inherited Members

- Public Types inherited from QTextFrameFormat
enum  BorderStyle

enum  Position

- Public Types inherited from QTextFormat
enum  FormatType

enum  ObjectTypes

enum  Property


Detailed Description

The QTextTableFormat class provides formatting information for tables in a QTextDocument.

A table is a group of cells ordered into rows and columns. Each table contains at least one row and one column. Each cell contains a block. Tables in rich text documents are formatted using the properties defined in this class.

Tables are horizontally justified within their parent frame according to the table's alignment. This can be read with the alignment() function and set with setAlignment().

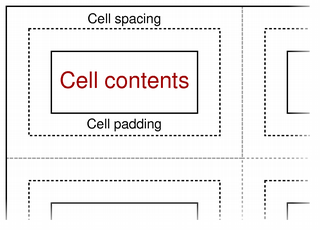

Cells within the table are separated by cell spacing. The number of pixels between cells is set with setCellSpacing() and read with cellSpacing(). The contents of each cell is surrounded by cell padding. The number of pixels between each cell edge and its contents is set with setCellPadding() and read with cellPadding().

The table's background color can be read with the background() function, and can be specified with setBackground(). The background color of each cell can be set independently, and will control the color of the cell within the padded area.

The table format also provides a way to constrain the widths of the columns in the table. Columns can be assigned a fixed width, a variable width, or a percentage of the available width (see QTextLength). The columns() function returns the number of columns with constraints, and the columnWidthConstraints() function returns the constraints defined for the table. These quantities can also be set by calling setColumnWidthConstraints() with a vector containing new constraints. If no constraints are required, clearColumnWidthConstraints() can be used to remove them.

See also
QTextTable, QTextTableCell, QTextLength

Constructor & Destructor Documentation

QTextTableFormat::QTextTableFormat ( )

Constructs a new table format object.

Method Documentation

Qt::Alignment QTextTableFormat::alignment ( ) const
inline

Returns the table's alignment.

See also
setAlignment()
qreal QTextTableFormat::cellPadding ( ) const
inline

Returns the table's cell padding. This describes the distance between the border of a cell and its contents.

See also
setCellPadding()
qreal QTextTableFormat::cellSpacing ( ) const
inline

Returns the table's cell spacing. This describes the distance between adjacent cells.

See also
setCellSpacing()
void QTextTableFormat::clearColumnWidthConstraints ( )
inline

Clears the column width constraints for the table.

See also
columnWidthConstraints(), setColumnWidthConstraints()
int QTextTableFormat::columns ( ) const
inline

Returns the number of columns specified by the table format.

QVector< QTextLength > QTextTableFormat::columnWidthConstraints ( ) const
inline

Returns a list of constraints used by this table format to control the appearance of columns in a table.

See also
setColumnWidthConstraints()
int QTextTableFormat::headerRowCount ( ) const
inline

Returns the number of rows in the table that define the header.

See also
setHeaderRowCount()
bool QTextTableFormat::isValid ( ) const
inline

Returns true if this table format is valid, otherwise returns false.

void QTextTableFormat::setAlignment ( Qt::Alignment  aalignment)
inline

Sets the table's alignment.

See also
alignment()
void QTextTableFormat::setCellPadding ( qreal  apadding)
inline

Sets the cell padding for the table. This determines the distance between the border of a cell and its contents.

See also
cellPadding()
void QTextTableFormat::setCellSpacing ( qreal  spacing)
inline

Sets the cell spacing for the table. This determines the distance between adjacent cells.

See also
cellSpacing()
void QTextTableFormat::setColumnWidthConstraints ( const QVector< QTextLength > &  constraints)
inline

Sets the column width constraints for the table.

See also
columnWidthConstraints(), clearColumnWidthConstraints()
void QTextTableFormat::setHeaderRowCount ( int  count)
inline

Declares the first count rows of the table as table header. The table header rows get repeated when a table is broken across a page boundary.

See also
headerRowCount()
