QTreeWidget Class Reference

The QTreeWidget class provides a tree view that uses a predefined tree model. More...

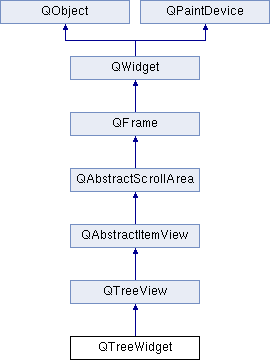

Inheritance diagram for QTreeWidget:
QTreeView QAbstractItemView QAbstractScrollArea QFrame QWidget QObject QPaintDevice

Public Signals

void currentItemChanged (QTreeWidgetItem *current, QTreeWidgetItem *previous)

void itemActivated (QTreeWidgetItem *item, int column)

void itemChanged (QTreeWidgetItem *item, int column)

void itemClicked (QTreeWidgetItem *item, int column)

void itemCollapsed (QTreeWidgetItem *item)

void itemDoubleClicked (QTreeWidgetItem *item, int column)

void itemEntered (QTreeWidgetItem *item, int column)

void itemExpanded (QTreeWidgetItem *item)

void itemPressed (QTreeWidgetItem *item, int column)

void itemSelectionChanged ()

- Public Signals inherited from QTreeView
void collapsed (const QModelIndex &index)

void expanded (const QModelIndex &index)

- Public Signals inherited from QAbstractItemView
void activated (const QModelIndex &index)

void clicked (const QModelIndex &index)

void doubleClicked (const QModelIndex &index)

void entered (const QModelIndex &index)

void iconSizeChanged (const QSize &size)

void pressed (const QModelIndex &index)

void viewportEntered ()

- Public Signals inherited from QWidget
void customContextMenuRequested (const QPoint &pos)

void windowIconChanged (const QIcon &icon)

void windowIconTextChanged (const QString &iconText)

void windowTitleChanged (const QString &title)

- Public Signals inherited from QObject
void destroyed (QObject *obj=nullptr)

void objectNameChanged (const QString &objectName)


Public Slots

void clear ()

void collapseItem (const QTreeWidgetItem *item)

void expandItem (const QTreeWidgetItem *item)

void scrollToItem (const QTreeWidgetItem *item, QAbstractItemView::ScrollHint hint=EnsureVisible)

- Public Slots inherited from QTreeView
void collapse (const QModelIndex &index)

void collapseAll ()

void expand (const QModelIndex &index)

void expandAll ()

void expandToDepth (int depth)

void hideColumn (int column)

void resizeColumnToContents (int column)

void showColumn (int column)

void sortByColumn (int column)

- Public Slots inherited from QAbstractItemView
void clearSelection ()

void edit (const QModelIndex &index)

virtual void reset ()

void scrollToBottom ()

void scrollToTop ()

virtual void selectAll ()

void setCurrentIndex (const QModelIndex &index)

virtual void setRootIndex (const QModelIndex &index)

void update (const QModelIndex &index)

- Public Slots inherited from QWidget
bool close ()

void hide ()

void lower ()

void raise ()

void repaint ()

void setDisabled (bool disable)

void setEnabled (bool enable)

void setFocus ()

void setHidden (bool hidden)

void setStyleSheet (const QString &styleSheet)

virtual void setVisible (bool visible)

void setWindowModified (bool modified)

void setWindowTitle (const QString &title)

void show ()

void showFullScreen ()

void showMaximized ()

void showMinimized ()

void showNormal ()

void update ()

- Public Slots inherited from QObject
void deleteLater ()


Public Methods

 QTreeWidget (QWidget *parent=nullptr)

 ~QTreeWidget ()

void addTopLevelItem (QTreeWidgetItem *item)

void addTopLevelItems (const QList< QTreeWidgetItem * > &items)

void closePersistentEditor (QTreeWidgetItem *item, int column=0)

int columnCount () const

int currentColumn () const

QTreeWidgetItemcurrentItem () const

void editItem (QTreeWidgetItem *item, int column=0)

QList< QTreeWidgetItem * > findItems (const QString &text, Qt::MatchFlags flags, int column=0) const

QTreeWidgetItemheaderItem () const

int indexOfTopLevelItem (QTreeWidgetItem *item) const

void insertTopLevelItem (int index, QTreeWidgetItem *item)

void insertTopLevelItems (int index, const QList< QTreeWidgetItem * > &items)

QTreeWidgetIteminvisibleRootItem () const

bool isFirstItemColumnSpanned (const QTreeWidgetItem *item) const

bool isItemExpanded (const QTreeWidgetItem *item) const

bool isItemHidden (const QTreeWidgetItem *item) const

bool isItemSelected (const QTreeWidgetItem *item) const

QTreeWidgetItemitemAbove (const QTreeWidgetItem *item) const

QTreeWidgetItemitemAt (const QPoint &p) const

QTreeWidgetItemitemAt (int x, int y) const

QTreeWidgetItemitemBelow (const QTreeWidgetItem *item) const

QWidgetitemWidget (QTreeWidgetItem *item, int column) const

void openPersistentEditor (QTreeWidgetItem *item, int column=0)

void removeItemWidget (QTreeWidgetItem *item, int column)

QList< QTreeWidgetItem * > selectedItems () const

void setColumnCount (int columns)

void setCurrentItem (QTreeWidgetItem *item)

void setCurrentItem (QTreeWidgetItem *item, int column)

void setCurrentItem (QTreeWidgetItem *item, int column, QItemSelectionModel::SelectionFlags command)

void setFirstItemColumnSpanned (const QTreeWidgetItem *item, bool span)

void setHeaderItem (QTreeWidgetItem *item)

void setHeaderLabel (const QString &label)

void setHeaderLabels (const QStringList &labels)

void setItemExpanded (const QTreeWidgetItem *item, bool expand)

void setItemHidden (const QTreeWidgetItem *item, bool hide)

void setItemSelected (const QTreeWidgetItem *item, bool select)

void setItemWidget (QTreeWidgetItem *item, int column, QWidget *widget)

void setSelectionModel (QItemSelectionModel *selectionModel) override

int sortColumn () const

void sortItems (int column, Qt::SortOrder order)

QTreeWidgetItemtakeTopLevelItem (int index)

QTreeWidgetItemtopLevelItem (int index) const

int topLevelItemCount () const

QRect visualItemRect (const QTreeWidgetItem *item) const

- Public Methods inherited from QTreeView
 QTreeView (QWidget *parent=nullptr)

 ~QTreeView ()

bool allColumnsShowFocus () const

int autoExpandDelay () const

int columnAt (int x) const

int columnViewportPosition (int column) const

int columnWidth (int column) const

void dataChanged (const QModelIndex &topLeft, const QModelIndex &bottomRight, const QVector< int > &roles=QVector< int >()) override

bool expandsOnDoubleClick () const

QHeaderViewheader () const

int indentation () const

QModelIndex indexAbove (const QModelIndex &index) const

QModelIndex indexAt (const QPoint &point) const override

QModelIndex indexBelow (const QModelIndex &index) const

bool isAnimated () const

bool isColumnHidden (int column) const

bool isExpanded (const QModelIndex &index) const

bool isFirstColumnSpanned (int row, const QModelIndex &parent) const

bool isHeaderHidden () const

bool isRowHidden (int row, const QModelIndex &parent) const

bool isSortingEnabled () const

bool itemsExpandable () const

void keyboardSearch (const QString &search) override

void reset () override

void resetIndentation ()

bool rootIsDecorated () const

void scrollTo (const QModelIndex &index, ScrollHint hint=EnsureVisible) override

void selectAll () override

void setAllColumnsShowFocus (bool enable)

void setAnimated (bool enable)

void setAutoExpandDelay (int delay)

void setColumnHidden (int column, bool hide)

void setColumnWidth (int column, int width)

void setExpanded (const QModelIndex &index, bool expanded)

void setExpandsOnDoubleClick (bool enable)

void setFirstColumnSpanned (int row, const QModelIndex &parent, bool span)

void setHeader (QHeaderView *header)

void setHeaderHidden (bool hide)

void setIndentation (int i)

void setItemsExpandable (bool enable)

void setRootIndex (const QModelIndex &index) override

void setRootIsDecorated (bool show)

void setRowHidden (int row, const QModelIndex &parent, bool hide)

void setSortingEnabled (bool enable)

void setTreePosition (int logicalIndex)

void setUniformRowHeights (bool uniform)

void setWordWrap (bool on)

void sortByColumn (int column, Qt::SortOrder order)

int treePosition () const

bool uniformRowHeights () const

QRect visualRect (const QModelIndex &index) const override

bool wordWrap () const

- Public Methods inherited from QAbstractItemView
 QAbstractItemView (QWidget *parent=nullptr)

 ~QAbstractItemView ()

bool alternatingRowColors () const

int autoScrollMargin () const

void closePersistentEditor (const QModelIndex &index)

QModelIndex currentIndex () const

Qt::DropAction defaultDropAction () const

DragDropMode dragDropMode () const

bool dragDropOverwriteMode () const

bool dragEnabled () const

EditTriggers editTriggers () const

bool hasAutoScroll () const

ScrollMode horizontalScrollMode () const

QSize iconSize () const

QWidgetindexWidget (const QModelIndex &index) const

QVariant inputMethodQuery (Qt::InputMethodQuery query) const override

QAbstractItemDelegateitemDelegate () const

QAbstractItemDelegateitemDelegate (const QModelIndex &index) const

QAbstractItemDelegateitemDelegateForColumn (int column) const

QAbstractItemDelegateitemDelegateForRow (int row) const

QAbstractItemModelmodel () const

void openPersistentEditor (const QModelIndex &index)

QModelIndex rootIndex () const

QAbstractItemView::SelectionBehavior selectionBehavior () const

QAbstractItemView::SelectionMode selectionMode () const

QItemSelectionModelselectionModel () const

void setAlternatingRowColors (bool enable)

void setAutoScroll (bool enable)

void setAutoScrollMargin (int margin)

void setDefaultDropAction (Qt::DropAction dropAction)

void setDragDropMode (DragDropMode behavior)

void setDragDropOverwriteMode (bool overwrite)

void setDragEnabled (bool enable)

void setDropIndicatorShown (bool enable)

void setEditTriggers (EditTriggers triggers)

void setHorizontalScrollMode (ScrollMode mode)

void setIconSize (const QSize &size)

void setIndexWidget (const QModelIndex &index, QWidget *widget)

void setItemDelegate (QAbstractItemDelegate *delegate)

void setItemDelegateForColumn (int column, QAbstractItemDelegate *delegate)

void setItemDelegateForRow (int row, QAbstractItemDelegate *delegate)

void setSelectionBehavior (QAbstractItemView::SelectionBehavior behavior)

void setSelectionMode (QAbstractItemView::SelectionMode mode)

void setTabKeyNavigation (bool enable)

void setTextElideMode (Qt::TextElideMode mode)

void setVerticalScrollMode (ScrollMode mode)

bool showDropIndicator () const

QSize sizeHintForIndex (const QModelIndex &index) const

virtual int sizeHintForRow (int row) const

bool tabKeyNavigation () const

Qt::TextElideMode textElideMode () const

ScrollMode verticalScrollMode () const

- Public Methods inherited from QAbstractScrollArea
 QAbstractScrollArea (QWidget *parent=nullptr)

 ~QAbstractScrollArea ()

void addScrollBarWidget (QWidget *widget, Qt::Alignment alignment)

QWidgetcornerWidget () const

QScrollBarhorizontalScrollBar () const

Qt::ScrollBarPolicy horizontalScrollBarPolicy () const

QSize maximumViewportSize () const

QSize minimumSizeHint () const override

QWidgetList scrollBarWidgets (Qt::Alignment alignment)

void setCornerWidget (QWidget *widget)

void setHorizontalScrollBar (QScrollBar *scrollBar)

void setHorizontalScrollBarPolicy (Qt::ScrollBarPolicy)

void setSizeAdjustPolicy (SizeAdjustPolicy policy)

virtual void setupViewport (QWidget *viewport)

void setVerticalScrollBar (QScrollBar *scrollBar)

void setVerticalScrollBarPolicy (Qt::ScrollBarPolicy)

void setViewport (QWidget *widget)

SizeAdjustPolicy sizeAdjustPolicy () const

QSize sizeHint () const override

QScrollBarverticalScrollBar () const

Qt::ScrollBarPolicy verticalScrollBarPolicy () const

QWidgetviewport () const

- Public Methods inherited from QFrame
 QFrame (QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::EmptyFlag)

 ~QFrame ()

QRect frameRect () const

Shadow frameShadow () const

Shape frameShape () const

int frameStyle () const

int frameWidth () const

int lineWidth () const

int midLineWidth () const

void setFrameRect (const QRect &)

void setFrameShadow (Shadow)

void setFrameShape (Shape)

void setFrameStyle (int style)

void setLineWidth (int)

void setMidLineWidth (int)

QSize sizeHint () const override

- Public Methods inherited from QWidget
 QWidget (QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::EmptyFlag)

 ~QWidget ()

bool acceptDrops () const

QString accessibleDescription () const

QString accessibleName () const

QList< QAction * > actions () const

void activateWindow ()

void addAction (QAction *action)

void addActions (const QList< QAction * > &actions)

void adjustSize ()

bool autoFillBackground () const

QPalette::ColorRole backgroundRole () const

QBackingStorebackingStore () const

QSize baseSize () const

QWidget * childAt (const QPoint &position) const

QWidget * childAt (int x, int y) const

QRect childrenRect () const

QRegion childrenRegion () const

void clearFocus ()

void clearMask ()

QMargins contentsMargins () const

QRect contentsRect () const

Qt::ContextMenuPolicy contextMenuPolicy () const

QCursor cursor () const

WId effectiveWinId () const

void ensurePolished () const

Qt::FocusPolicy focusPolicy () const

QWidget * focusProxy () const

QWidget * focusWidget () const

const QFontfont () const

QFontInfo fontInfo () const

QFontMetrics fontMetrics () const

QPalette::ColorRole foregroundRole () const

QRect frameGeometry () const

QSize frameSize () const

const QRectgeometry () const

void getContentsMargins (int *left, int *top, int *right, int *bottom) const

QPixmap grab (const QRect &rectangle=QRect (QPoint (0, 0), QSize (-1,-1)))

void grabGesture (Qt::GestureType gestureType, Qt::GestureFlags flags=Qt::GestureFlags ())

void grabKeyboard ()

void grabMouse ()

void grabMouse (const QCursor &cursor)

int grabShortcut (const QKeySequence &key, Qt::ShortcutContext context=Qt::WindowShortcut)

QGraphicsEffectgraphicsEffect () const

QGraphicsProxyWidgetgraphicsProxyWidget () const

bool hasEditFocus () const

bool hasFocus () const

virtual bool hasHeightForWidth () const

bool hasMouseTracking () const

int height () const

virtual int heightForWidth (int width) const

Qt::InputMethodHints inputMethodHints () const

void insertAction (QAction *before, QAction *action)

void insertActions (QAction *before, QList< QAction * > actions)

bool isActiveWindow () const

bool isAncestorOf (const QWidget *child) const

bool isEnabled () const

bool isEnabledTo (const QWidget *parent) const

bool isEnabledToTLW () const

bool isFullScreen () const

bool isHidden () const

bool isMaximized () const

bool isMinimized () const

bool isModal () const

bool isTopLevel () const

bool isVisible () const

bool isVisibleTo (const QWidget *parent) const

bool isWindow () const

bool isWindowModified () const

QLayoutlayout () const

Qt::LayoutDirection layoutDirection () const

QLocale locale () const

QPoint mapFrom (const QWidget *parent, const QPoint &pos) const

QPoint mapFromGlobal (const QPoint &pos) const

QPoint mapFromParent (const QPoint &pos) const

QPoint mapTo (const QWidget *parent, const QPoint &pos) const

QPoint mapToGlobal (const QPoint &pos) const

QPoint mapToParent (const QPoint &pos) const

QRegion mask () const

int maximumHeight () const

QSize maximumSize () const

int maximumWidth () const

int minimumHeight () const

QSize minimumSize () const

int minimumWidth () const

void move (const QPoint &point)

void move (int x, int y)

QWidget * nativeParentWidget () const

QWidget * nextInFocusChain () const

QRect normalGeometry () const

void overrideWindowFlags (Qt::WindowFlags flags)

QPaintEnginepaintEngine () const override

const QPalettepalette () const

QWidget * parentWidget () const

QPoint pos () const

QWidget * previousInFocusChain () const

QRect rect () const

void releaseKeyboard ()

void releaseMouse ()

void releaseShortcut (int id)

void removeAction (QAction *action)

void render (QPaintDevice *target, const QPoint &targetOffset=QPoint (), const QRegion &sourceRegion=QRegion (), RenderFlags renderFlags=RenderFlags (DrawWindowBackground|DrawChildren))

void render (QPainter *painter, const QPoint &targetOffset=QPoint (), const QRegion &sourceRegion=QRegion (), RenderFlags renderFlags=RenderFlags (DrawWindowBackground|DrawChildren))

void repaint (const QRect &rect)

void repaint (const QRegion &region)

void repaint (int x, int y, int w, int h)

void resize (const QSize &size)

void resize (int w, int h)

bool restoreGeometry (const QByteArray &geometry)

QByteArray saveGeometry () const

void scroll (int dx, int dy)

void scroll (int dx, int dy, const QRect &rect)

void setAcceptDrops (bool on)

void setAccessibleDescription (const QString &description)

void setAccessibleName (const QString &name)

void setAttribute (Qt::WidgetAttribute attribute, bool enable=true)

void setAutoFillBackground (bool enable)

void setBackgroundRole (QPalette::ColorRole role)

void setBaseSize (const QSize &size)

void setBaseSize (int basew, int baseh)

void setContentsMargins (const QMargins &margins)

void setContentsMargins (int left, int top, int right, int bottom)

void setContextMenuPolicy (Qt::ContextMenuPolicy policy)

void setCursor (const QCursor &cursor)

void setEditFocus (bool enable)

void setFixedHeight (int h)

void setFixedSize (const QSize &size)

void setFixedSize (int w, int h)

void setFixedWidth (int w)

void setFocus (Qt::FocusReason reason)

void setFocusPolicy (Qt::FocusPolicy policy)

void setFocusProxy (QWidget *widget)

void setFont (const QFont &font)

void setForegroundRole (QPalette::ColorRole role)

void setGeometry (const QRect &rect)

void setGeometry (int x, int y, int w, int h)

void setGraphicsEffect (QGraphicsEffect *effect)

void setInputMethodHints (Qt::InputMethodHints hints)

void setLayout (QLayout *layout)

void setLayoutDirection (Qt::LayoutDirection direction)

void setLocale (const QLocale &locale)

void setMask (const QBitmap &bitmap)

void setMask (const QRegion &region)

void setMaximumHeight (int maxh)

void setMaximumSize (const QSize &size)

void setMaximumSize (int maxw, int maxh)

void setMaximumWidth (int maxw)

void setMinimumHeight (int minh)

void setMinimumSize (const QSize &size)

void setMinimumSize (int minw, int minh)

void setMinimumWidth (int minw)

void setMouseTracking (bool enable)

void setPalette (const QPalette &palette)

void setParent (QWidget *parent)

void setParent (QWidget *parent, Qt::WindowFlags flags)

void setShortcutAutoRepeat (int id, bool enable=true)

void setShortcutEnabled (int id, bool enable=true)

void setSizeIncrement (const QSize &size)

void setSizeIncrement (int w, int h)

void setSizePolicy (QSizePolicy policy)

void setSizePolicy (QSizePolicy::Policy horizontal, QSizePolicy::Policy vertical)

void setStatusTip (const QString &data)

void setStyle (QStyle *style)

void setToolTip (const QString &data)

void setToolTipDuration (int msec)

void setUpdatesEnabled (bool enable)

void setWhatsThis (const QString &str)

void setWindowFilePath (const QString &filePath)

void setWindowFlags (Qt::WindowFlags flags)

void setWindowIcon (const QIcon &icon)

void setWindowModality (Qt::WindowModality windowModality)

void setWindowOpacity (qreal level)

void setWindowRole (const QString &role)

void setWindowState (Qt::WindowStates windowState)

QSize size () const

QSize sizeIncrement () const

QSizePolicy sizePolicy () const

void stackUnder (QWidget *widget)

QString statusTip () const

QStylestyle () const

QString styleSheet () const

bool testAttribute (Qt::WidgetAttribute attribute) const

QString toolTip () const

int toolTipDuration () const

QWidget * topLevelWidget () const

bool underMouse () const

void ungrabGesture (Qt::GestureType gestureType)

void unsetCursor ()

void unsetLayoutDirection ()

void unsetLocale ()

void update (const QRect &rect)

void update (const QRegion &region)

void update (int x, int y, int w, int h)

void updateGeometry ()

bool updatesEnabled () const

QRegion visibleRegion () const

QString whatsThis () const

int width () const

QWidget * window () const

QString windowFilePath () const

Qt::WindowFlags windowFlags () const

QWindowwindowHandle () const

QIcon windowIcon () const

Qt::WindowModality windowModality () const

qreal windowOpacity () const

QString windowRole () const

Qt::WindowStates windowState () const

QString windowTitle () const

Qt::WindowType windowType () const

WId winId () const

int x () const

int y () const

- Public Methods inherited from QObject
 QObject (QObject *parent=nullptr)

 ~QObject ()

bool blockSignals (bool block)

const QList< QObject * > & children () const

bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void dumpObjectInfo ()

void dumpObjectTree ()

QList< QStringdynamicPropertyNames () const

virtual bool event (QEvent *event)

virtual bool eventFilter (QObject *watched, QEvent *event)

template<typename T >
findChild (const QString &childName=QString ()) const

template<class T >
QList< T > findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T > findChildren (const QString &objName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool inherits (const QString &className) const

void installEventFilter (QObject *filterObj)

bool isWidgetType () const

bool isWindowType () const

void killTimer (int id)

const QMetaObjectmetaObject () const

void moveToThread (QThread *targetThread)

QString objectName () const

QObject * parent () const

template<class T = QVariant>
property (const QString &name) const

void removeEventFilter (QObject *obj)

void setObjectName (const QString &name)

void setParent (QObject *parent)

bool setProperty (const QString &name, const QVariant &value)

bool signalsBlocked () const

int startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThreadthread () const

- Public Methods inherited from QPaintDevice
virtual ~QPaintDevice ()

int colorCount () const

int depth () const

int devicePixelRatio () const

qreal devicePixelRatioF () const

int height () const

int heightMM () const

int logicalDpiX () const

int logicalDpiY () const

bool paintingActive () const

int physicalDpiX () const

int physicalDpiY () const

int width () const

int widthMM () const


Protected Methods

void dropEvent (QDropEvent *event) override

virtual bool dropMimeData (QTreeWidgetItem *parent, int index, const QMimeData *data, Qt::DropAction action)

bool event (QEvent *event) override

QModelIndex indexFromItem (QTreeWidgetItem *item, int column=0) const

QTreeWidgetItemitemFromIndex (const QModelIndex &index) const

QList< QTreeWidgetItem * > items (const QMimeData *data) const

virtual QMimeDatamimeData (const QList< QTreeWidgetItem * > &items) const

virtual QStringList mimeTypes () const

virtual Qt::DropActions supportedDropActions () const

- Protected Methods inherited from QTreeView
void currentChanged (const QModelIndex &current, const QModelIndex &previous) override

void dragMoveEvent (QDragMoveEvent *event) override

virtual void drawBranches (QPainter *painter, const QRect &rect, const QModelIndex &index) const

virtual void drawRow (QPainter *painter, const QStyleOptionViewItem &option, const QModelIndex &index) const

void drawTree (QPainter *painter, const QRegion &region) const

int horizontalOffset () const override

void horizontalScrollbarAction (int action) override

int indexRowSizeHint (const QModelIndex &index) const

bool isIndexHidden (const QModelIndex &index) const override

void keyPressEvent (QKeyEvent *event) override

void mouseDoubleClickEvent (QMouseEvent *event) override

void mouseMoveEvent (QMouseEvent *event) override

void mousePressEvent (QMouseEvent *event) override

void mouseReleaseEvent (QMouseEvent *event) override

QModelIndex moveCursor (CursorAction cursorAction, Qt::KeyboardModifiers modifiers) override

void paintEvent (QPaintEvent *event) override

int rowHeight (const QModelIndex &index) const

void rowsAboutToBeRemoved (const QModelIndex &parent, int start, int end) override

void rowsInserted (const QModelIndex &parent, int start, int end) override

void scrollContentsBy (int dx, int dy) override

QModelIndexList selectedIndexes () const override

void selectionChanged (const QItemSelection &selected, const QItemSelection &deselected) override

void setSelection (const QRect &rect, QItemSelectionModel::SelectionFlags command) override

int sizeHintForColumn (int column) const override

void timerEvent (QTimerEvent *event) override

void updateGeometries () override

int verticalOffset () const override

bool viewportEvent (QEvent *event) override

QSize viewportSizeHint () const override

QRegion visualRegionForSelection (const QItemSelection &selection) const override

- Protected Methods inherited from QAbstractItemView
QPoint dirtyRegionOffset () const

void dragEnterEvent (QDragEnterEvent *event) override

void dragLeaveEvent (QDragLeaveEvent *event) override

DropIndicatorPosition dropIndicatorPosition () const

virtual bool edit (const QModelIndex &index, EditTrigger trigger, QEvent *event)

bool event (QEvent *event) override

void executeDelayedItemsLayout ()

void focusInEvent (QFocusEvent *event) override

bool focusNextPrevChild (bool next) override

void focusOutEvent (QFocusEvent *event) override

int horizontalStepsPerItem () const

void inputMethodEvent (QInputMethodEvent *event) override

void resizeEvent (QResizeEvent *event) override

void scheduleDelayedItemsLayout ()

void scrollDirtyRegion (int dx, int dy)

virtual QItemSelectionModel::SelectionFlags selectionCommand (const QModelIndex &index, const QEvent *event=nullptr) const

void setDirtyRegion (const QRegion &region)

void setHorizontalStepsPerItem (int steps)

void setState (State state)

void setVerticalStepsPerItem (int steps)

virtual void startDrag (Qt::DropActions supportedActions)

State state () const

void timerEvent (QTimerEvent *event) override

int verticalStepsPerItem () const

virtual QStyleOptionViewItem viewOptions () const

- Protected Methods inherited from QAbstractScrollArea
void contextMenuEvent (QContextMenuEvent *event) override

void dragEnterEvent (QDragEnterEvent *event) override

void dragLeaveEvent (QDragLeaveEvent *event) override

void dragMoveEvent (QDragMoveEvent *event) override

void dropEvent (QDropEvent *event) override

bool event (QEvent *event) override

void keyPressEvent (QKeyEvent *event) override

void mouseDoubleClickEvent (QMouseEvent *event) override

void mouseMoveEvent (QMouseEvent *event) override

void mousePressEvent (QMouseEvent *event) override

void mouseReleaseEvent (QMouseEvent *event) override

void paintEvent (QPaintEvent *event) override

void resizeEvent (QResizeEvent *event) override

void setViewportMargins (const QMargins &margins)

void setViewportMargins (int left, int top, int right, int bottom)

QMargins viewportMargins () const

void wheelEvent (QWheelEvent *event) override

- Protected Methods inherited from QFrame
void changeEvent (QEvent *event) override

void drawFrame (QPainter *)

bool event (QEvent *event) override

void initStyleOption (QStyleOptionFrame *option) const

void paintEvent (QPaintEvent *event) override

- Protected Methods inherited from QWidget
virtual void actionEvent (QActionEvent *event)

virtual void closeEvent (QCloseEvent *event)

void create (WId window=0, bool initializeWindow=true, bool destroyOldWindow=true)

void destroy (bool destroyWindow=true, bool destroySubWindows=true)

virtual void enterEvent (QEvent *event)

bool event (QEvent *event) override

bool focusNextChild ()

bool focusPreviousChild ()

virtual void hideEvent (QHideEvent *event)

void initPainter (QPainter *painter) const override

virtual void keyReleaseEvent (QKeyEvent *event)

virtual void leaveEvent (QEvent *event)

int metric (PaintDeviceMetric metric) const override

virtual void moveEvent (QMoveEvent *event)

virtual bool nativeEvent (const QByteArray &eventType, void *message, long *result)

virtual void showEvent (QShowEvent *event)

virtual void tabletEvent (QTabletEvent *event)

- Protected Methods inherited from QObject
virtual void childEvent (QChildEvent *event)

virtual void connectNotify (const QMetaMethod &signalMethod) const

virtual void customEvent (QEvent *event)

virtual void disconnectNotify (const QMetaMethod &signalMethod) const

bool isSignalConnected (const QMetaMethod &signalMethod) const

int receivers (const QString &signal) const

QObject * sender () const

int senderSignalIndex () const

virtual void timerEvent (QTimerEvent *event)

- Protected Methods inherited from QPaintDevice
 QPaintDevice ()


Properties

 columnCount

 topLevelItemCount

- Properties inherited from QTreeView
 allColumnsShowFocus

 animated

 autoExpandDelay

 expandsOnDoubleClick

 headerHidden

 indentation

 itemsExpandable

 rootIsDecorated

 sortingEnabled

 uniformRowHeights

 wordWrap

- Properties inherited from QAbstractItemView
 alternatingRowColors

 autoScroll

 autoScrollMargin

 defaultDropAction

 dragDropMode

 dragDropOverwriteMode

 dragEnabled

 editTriggers

 horizontalScrollMode

 iconSize

 selectionBehavior

 selectionMode

 showDropIndicator

 tabKeyNavigation

 textElideMode

 verticalScrollMode

- Properties inherited from QAbstractScrollArea
 horizontalScrollBarPolicy

 verticalScrollBarPolicy

- Properties inherited from QFrame
 frameRect

 frameShadow

 frameShape

 frameWidth

 lineWidth

 midLineWidth

- Properties inherited from QWidget
 acceptDrops

 accessibleDescription

 accessibleName

 autoFillBackground

 baseSize

 childrenRect

 childrenRegion

 contextMenuPolicy

 cursor

 enabled

 focus

 focusPolicy

 font

 frameGeometry

 frameSize

 fullScreen

 geometry

 height

 inputMethodHints

 isActiveWindow

 layoutDirection

 locale

 maximized

 maximumHeight

 maximumSize

 maximumWidth

 minimized

 minimumHeight

 minimumSize

 minimumSizeHint

 minimumWidth

 modal

 mouseTracking

 normalGeometry

 palette

 pos

 rect

 size

 sizeHint

 sizeIncrement

 sizePolicy

 statusTip

 styleSheet

 toolTip

 updatesEnabled

 visible

 whatsThis

 width

 windowFilePath

 windowFlags

 windowIcon

 windowIconText

 windowModality

 windowModified

 windowOpacity

 windowTitle

 x

 y

- Properties inherited from QObject
 objectName


Friends

class QTreeWidgetItem


Additional Inherited Members

- Public Types inherited from QAbstractItemView
enum  DragDropMode

enum  ScrollHint

enum  ScrollMode

enum  SelectionBehavior

enum  SelectionMode

- Public Types inherited from QFrame
enum  Shadow

enum  Shape

enum  StyleMask

- Public Types inherited from QWidget
enum  RenderFlag

- Public Types inherited from QPaintDevice
enum  PaintDeviceMetric

- Static Public Methods inherited from QWidget
static QWidget * createWindowContainer (QWindow *window, QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::EmptyFlag)

static QWidget * find (WId id)

static QWidget * keyboardGrabber ()

static QWidget * mouseGrabber ()

static void setTabOrder (QWidget *firstWidget, QWidget *secondWidget)

- Static Public Methods inherited from QObject
static bool connect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool connect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool disconnect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObjectstaticMetaObject ()

static QString tr (const char *text, const char *comment=nullptr, std::optional< int > numArg=std::optional< int >())

- Protected Types inherited from QAbstractItemView
enum  CursorAction

enum  DropIndicatorPosition

enum  State

- Protected Slots inherited from QTreeView
void columnCountChanged (int oldCount, int newCount)

void columnMoved ()

void columnResized (int column, int oldSize, int newSize)

void rowsRemoved (const QModelIndex &parent, int start, int end)

- Protected Slots inherited from QAbstractItemView
virtual void closeEditor (QWidget *editor, QAbstractItemDelegate::EndEditHint hint)

virtual void commitData (QWidget *editor)

virtual void currentChanged (const QModelIndex &current, const QModelIndex &previous)

virtual void dataChanged (const QModelIndex &topLeft, const QModelIndex &bottomRight, const QVector< int > &roles=QVector< int >())

virtual void editorDestroyed (QObject *editor)

virtual void rowsAboutToBeRemoved (const QModelIndex &parent, int start, int end)

virtual void rowsInserted (const QModelIndex &parent, int start, int end)

virtual void selectionChanged (const QItemSelection &selected, const QItemSelection &deselected)

virtual void updateGeometries ()

- Protected Slots inherited from QWidget
void updateMicroFocus ()


Detailed Description

The QTreeWidget class provides a tree view that uses a predefined tree model. This class is based on the Model/View Architecture and uses a default model to hold items, each of which is a QTreeWidgetItem.

Developers who do not need the flexibility of the Model/View Architecture can use this class to create simple hierarchical lists very easily. A more flexible approach involves combining a QTreeView with a standard item model. This allows the storage of data to be separated from its representation.

In its simplest form, a tree widget can be constructed in the following way:

QTreeWidget *treeWidget = new QTreeWidget();
treeWidget->setColumnCount(1);
for (int i = 0; i < 10; ++i) {
items.append(new QTreeWidgetItem((QTreeWidget*)0, QStringList(QString("item: %1").formatArg(i))));
}
treeWidget->insertTopLevelItems(0, items);

Before items can be added to the tree widget, the number of columns must be set with setColumnCount(). This allows each item to have one or more labels or other decorations. The number of columns in use can be found with the columnCount() function.

The tree can have a header that contains a section for each column in the widget. It is easiest to set up the labels for each section by supplying a list of strings with setHeaderLabels(), but a custom header can be constructed with a QTreeWidgetItem and inserted into the tree with the setHeaderItem() function.

The items in the tree can be sorted by column according to a predefined sort order. If sorting is enabled, the user can sort the items by clicking on a column header. Sorting can be enabled or disabled by calling setSortingEnabled(). The isSortingEnabled() function indicates whether sorting is enabled.

A Windows XP style tree widget. A Mac OS X style tree widget. A Fusion style tree widget.
See also
QTreeWidgetItem, QTreeWidgetItemIterator, QTreeView, Model/View Programming

Constructor & Destructor Documentation

QTreeWidget::QTreeWidget ( QWidget parent = nullptr)
explicit

Constructs a tree widget with the given parent.

QTreeWidget::~QTreeWidget ( )

Destroys the tree widget and all its items.

Method Documentation

void QTreeWidget::addTopLevelItem ( QTreeWidgetItem item)

Appends the item as a top-level item in the widget.

See also
insertTopLevelItem()
void QTreeWidget::addTopLevelItems ( const QList< QTreeWidgetItem * > &  items)

Appends the list of items as a top-level items in the widget.

See also
insertTopLevelItems()
void QTreeWidget::clear ( )
slot

Clears the tree widget by removing all of its items and selections.

Note
Since each item is removed from the tree widget before being deleted, the return value of QTreeWidgetItem::treeWidget() will be invalid when called from an item's destructor.
See also
takeTopLevelItem(), topLevelItemCount(), columnCount()
void QTreeWidget::closePersistentEditor ( QTreeWidgetItem item,
int  column = 0
)

Closes the persistent editor for the item in the given column.

This function has no effect if no persistent editor is open for this combination of item and column.

See also
openPersistentEditor()
void QTreeWidget::collapseItem ( const QTreeWidgetItem item)
slot

Closes the item. This causes the tree containing the item's children to be collapsed.

See also
expandItem(), currentItem(), itemAt(), topLevelItem()
int QTreeWidget::columnCount ( ) const

Property documentation pending.

int QTreeWidget::currentColumn ( ) const

Returns the current column in the tree widget.

See also
setCurrentItem(), columnCount()
QTreeWidgetItem * QTreeWidget::currentItem ( ) const

Returns the current item in the tree widget.

See also
setCurrentItem(), currentItemChanged()
void QTreeWidget::currentItemChanged ( QTreeWidgetItem current,
QTreeWidgetItem previous
)
signal

This signal is emitted when the current item changes. The current item is specified by current, and this replaces the previous current item.

See also
setCurrentItem()
void QTreeWidget::dropEvent ( QDropEvent event)
overrideprotectedvirtual

Reimplemented from QWidget::dropEvent().

Reimplemented from QAbstractItemView.

bool QTreeWidget::dropMimeData ( QTreeWidgetItem parent,
int  index,
const QMimeData data,
Qt::DropAction  action
)
protectedvirtual

Handles the data supplied by a drag and drop operation that ended with the given action in the index in the given parent item.

The default implementation returns true if the drop was successfully handled by decoding the mime data and inserting it into the model, otherwise it returns false.

See also
supportedDropActions()
void QTreeWidget::editItem ( QTreeWidgetItem item,
int  column = 0
)

Starts editing the item in the given column if it is editable.

bool QTreeWidget::event ( QEvent event)
overrideprotected

Reimplemented from QObject::event().

void QTreeWidget::expandItem ( const QTreeWidgetItem item)
slot

Expands the item. This causes the tree containing the item's children to be expanded.

See also
collapseItem(), currentItem(), itemAt(), topLevelItem(), itemExpanded()
QList< QTreeWidgetItem * > QTreeWidget::findItems ( const QString text,
Qt::MatchFlags  flags,
int  column = 0
) const

Returns a list of items that match the given text, using the given flags, in the given column.

QTreeWidgetItem * QTreeWidget::headerItem ( ) const

Returns the item used for the tree widget's header.

See also
setHeaderItem()
QModelIndex QTreeWidget::indexFromItem ( QTreeWidgetItem item,
int  column = 0
) const
protected

Returns the QModelIndex associated with the given item in the given column.

See also
itemFromIndex(), topLevelItem()
int QTreeWidget::indexOfTopLevelItem ( QTreeWidgetItem item) const

Returns the index of the given top-level item, or -1 if the item can not be found.

See also
sortItems(), topLevelItemCount()
void QTreeWidget::insertTopLevelItem ( int  index,
QTreeWidgetItem item
)

Inserts the item at index in the top level in the view.

If the item has already been inserted somewhere else it wont be inserted.

See also
addTopLevelItem(), columnCount()
void QTreeWidget::insertTopLevelItems ( int  index,
const QList< QTreeWidgetItem * > &  items
)

Inserts the list of items at index in the top level in the view.

Items that have already been inserted somewhere else wont be inserted.

See also
addTopLevelItems()
QTreeWidgetItem * QTreeWidget::invisibleRootItem ( ) const

Returns the tree widget's invisible root item.

The invisible root item provides access to the tree widget's top-level items through the QTreeWidgetItem API, making it possible to write functions that can treat top-level items and their children in a uniform way; for example, recursive functions.

bool QTreeWidget::isFirstItemColumnSpanned ( const QTreeWidgetItem item) const

Returns true if the given item is set to show only one section over all columns, otherwise returns false.

See also
setFirstItemColumnSpanned()
bool QTreeWidget::isItemExpanded ( const QTreeWidgetItem item) const
deprecated
Deprecated:
Returns true if the given item is open, otherwise returns false.

This function is deprecated. Use QTreeWidgetItem::isExpanded() instead.

See also
itemExpanded()
bool QTreeWidget::isItemHidden ( const QTreeWidgetItem item) const
deprecated
Deprecated:
Returns true if the item is explicitly hidden, otherwise returns false.

This function is deprecated. Use QTreeWidgetItem::isHidden() instead.

bool QTreeWidget::isItemSelected ( const QTreeWidgetItem item) const
deprecated
Deprecated:
Returns true if the item is selected, otherwise returns false.

This function is deprecated. Use QTreeWidgetItem::isSelected() instead.

See also
itemSelectionChanged()
QTreeWidgetItem * QTreeWidget::itemAbove ( const QTreeWidgetItem item) const

Returns the item above the given item.

void QTreeWidget::itemActivated ( QTreeWidgetItem item,
int  column
)
signal

This signal is emitted when the user activates an item by single- or double-clicking (depending on the platform, i.e. on the QStyle::SH_ItemView_ActivateItemOnSingleClick style hint) or pressing a special key (e.g., Enter).

The specified item is the item that was clicked, or 0 if no item was clicked. The column is the item's column that was clicked, or -1 if no item was clicked.

QTreeWidgetItem * QTreeWidget::itemAt ( const QPoint p) const

Returns a pointer to the item at the coordinates p. The coordinates are relative to the tree widget's viewport().

See also
visualItemRect()
QTreeWidgetItem * QTreeWidget::itemAt ( int  x,
int  y
) const
inline

Returns a pointer to the item at the coordinates (x, y). The coordinates are relative to the tree widget's viewport().

QTreeWidgetItem * QTreeWidget::itemBelow ( const QTreeWidgetItem item) const

Returns the item visually below the given item.

void QTreeWidget::itemChanged ( QTreeWidgetItem item,
int  column
)
signal

This signal is emitted when the contents of the column in the specified item changes.

void QTreeWidget::itemClicked ( QTreeWidgetItem item,
int  column
)
signal

This signal is emitted when the user clicks inside the widget.

The specified item is the item that was clicked. The column is the item's column that was clicked. If no item was clicked, no signal will be emitted.

void QTreeWidget::itemCollapsed ( QTreeWidgetItem item)
signal

This signal is emitted when the specified item is collapsed so that none of its children are displayed.

Note
This signal will not be emitted if an item changes its state when collapseAll() is invoked.
See also
QTreeWidgetItem::isExpanded(), itemExpanded(), collapseItem()
void QTreeWidget::itemDoubleClicked ( QTreeWidgetItem item,
int  column
)
signal

This signal is emitted when the user double clicks inside the widget.

The specified item is the item that was clicked, or 0 if no item was clicked. The column is the item's column that was clicked. If no item was double clicked, no signal will be emitted.

void QTreeWidget::itemEntered ( QTreeWidgetItem item,
int  column
)
signal

This signal is emitted when the mouse cursor enters an item over the specified column. QTreeWidget mouse tracking needs to be enabled for this feature to work.

void QTreeWidget::itemExpanded ( QTreeWidgetItem item)
signal

This signal is emitted when the specified item is expanded so that all of its children are displayed.

Note
This signal will not be emitted if an item changes its state when expandAll() is invoked.
See also
setItemExpanded(), QTreeWidgetItem::isExpanded(), itemCollapsed(), expandItem()
QTreeWidgetItem * QTreeWidget::itemFromIndex ( const QModelIndex index) const
protected

Returns a pointer to the QTreeWidgetItem associated with the given index.

See also
indexFromItem()
void QTreeWidget::itemPressed ( QTreeWidgetItem item,
int  column
)
signal

This signal is emitted when the user presses a mouse button inside the widget.

The specified item is the item that was clicked, or 0 if no item was clicked. The column is the item's column that was clicked, or -1 if no item was clicked.

QList< QTreeWidgetItem * > QTreeWidget::items ( const QMimeData data) const
deprecatedprotected
Deprecated:
Returns an empty list
See also
mimeData()
void QTreeWidget::itemSelectionChanged ( )
signal

This signal is emitted when the selection changes in the tree widget. The current selection can be found with selectedItems().

QWidget * QTreeWidget::itemWidget ( QTreeWidgetItem item,
int  column
) const

Returns the widget displayed in the cell specified by item and the given column.

Note
The tree takes ownership of the widget.
See also
setItemWidget()
QMimeData * QTreeWidget::mimeData ( const QList< QTreeWidgetItem * > &  items) const
protectedvirtual

Returns an object that contains a serialized description of the specified items. The format used to describe the items is obtained from the mimeTypes() function.

If the list of items is empty, 0 is returned rather than a serialized empty list.

QStringList QTreeWidget::mimeTypes ( ) const
protectedvirtual

Returns a list of MIME types that can be used to describe a list of treewidget items.

See also
mimeData()
void QTreeWidget::openPersistentEditor ( QTreeWidgetItem item,
int  column = 0
)

Opens a persistent editor for the item in the given column.

See also
closePersistentEditor()
void QTreeWidget::removeItemWidget ( QTreeWidgetItem item,
int  column
)
inline

Removes the widget set in the given item in the given column.

void QTreeWidget::scrollToItem ( const QTreeWidgetItem item,
QAbstractItemView::ScrollHint  hint = EnsureVisible
)
slot

Ensures that the item is visible, scrolling the view if necessary using the specified hint.

See also
currentItem(), itemAt(), topLevelItem()
QList< QTreeWidgetItem * > QTreeWidget::selectedItems ( ) const

Returns a list of all selected non-hidden items.

See also
itemSelectionChanged()
void QTreeWidget::setColumnCount ( int  columns)

Property documentation pending.

void QTreeWidget::setCurrentItem ( QTreeWidgetItem item)

Sets the current item in the tree widget.

Unless the selection mode is NoSelection, the item is also be selected.

See also
currentItem(), currentItemChanged()
void QTreeWidget::setCurrentItem ( QTreeWidgetItem item,
int  column
)

Sets the current item in the tree widget and the current column to column.

See also
currentItem()
void QTreeWidget::setCurrentItem ( QTreeWidgetItem item,
int  column,
QItemSelectionModel::SelectionFlags  command
)

Sets the current item in the tree widget and the current column to column, using the given command.

See also
currentItem()
void QTreeWidget::setFirstItemColumnSpanned ( const QTreeWidgetItem item,
bool  span
)

Sets the given item to only show one section for all columns if span is true, otherwise the item will show one section per column.

See also
isFirstItemColumnSpanned()
void QTreeWidget::setHeaderItem ( QTreeWidgetItem item)

Sets the header item> for the tree widget. The label for each column in the header is supplied by the corresponding label in the item. The tree widget takes ownership of the item.

See also
headerItem(), setHeaderLabels()
void QTreeWidget::setHeaderLabel ( const QString label)
inline

Equivalent to calling setHeaderLabels(QStringList(label)).

void QTreeWidget::setHeaderLabels ( const QStringList labels)

Adds a column in the header for each item in the labels list, and sets the label for each column. Note that setHeaderLabels() will not remove existing columns.

See also
setHeaderItem(), setHeaderLabel()
void QTreeWidget::setItemExpanded ( const QTreeWidgetItem item,
bool  expand
)
deprecated
Deprecated:
Sets the item referred to by item to either closed or opened, depending on the value of expand.

This function is deprecated. Use QTreeWidgetItem::setExpanded() instead.

See also
expandItem(), collapseItem(), itemExpanded()
void QTreeWidget::setItemHidden ( const QTreeWidgetItem item,
bool  hide
)
deprecated
Deprecated:
Hides the given item if hide is true, otherwise shows the item.

This function is deprecated. Use QTreeWidgetItem::setHidden() instead.

See also
isItemHidden(), itemChanged()
void QTreeWidget::setItemSelected ( const QTreeWidgetItem item,
bool  select
)
deprecated
Deprecated:
If select is true, the given item is selected, otherwise it is deselected.

This function is deprecated. Use QTreeWidgetItem::setSelected() instead.

See also
isItemSelected(), itemSelectionChanged()
void QTreeWidget::setItemWidget ( QTreeWidgetItem item,
int  column,
QWidget widget
)

Sets the given widget to be displayed in the cell specified by the given item and column. The given widget's autoFillBackground property must be set to true, otherwise the widget's background will be transparent, showing both the model data and the tree widget item. This method should only be used to display static content in the place of a tree widget item. If you want to display custom dynamic content or implement a custom editor widget, use QTreeView and subclass QItemDelegate instead.

This method can not be called before the item hierarchy has been set up, i.e., the QTreeWidgetItem that will hold widget must have been added to the view before widget is set.

Note
The tree takes ownership of the widget.
See also
itemWidget(), Delegate Classes
void QTreeWidget::setSelectionModel ( QItemSelectionModel selectionModel)
overridevirtual

Reimplemented from QAbstractItemView::setSelectionModel().

Reimplemented from QTreeView.

int QTreeWidget::sortColumn ( ) const

Returns the column used to sort the contents of the widget.

See also
sortItems()
void QTreeWidget::sortItems ( int  column,
Qt::SortOrder  order
)

Sorts the items in the widget in the specified order by the values in the given column.

See also
sortColumn()
Qt::DropActions QTreeWidget::supportedDropActions ( ) const
protectedvirtual

Returns the drop actions supported by this view.

See also
Qt::DropActions
QTreeWidgetItem * QTreeWidget::takeTopLevelItem ( int  index)

Removes the top-level item at the given index in the tree and returns it, otherwise returns a nullptr.

See also
insertTopLevelItem(), topLevelItem(), topLevelItemCount()
QTreeWidgetItem * QTreeWidget::topLevelItem ( int  index) const

Returns the top level item at the given index, or 0 if the item does not exist.

See also
topLevelItemCount(), insertTopLevelItem()
int QTreeWidget::topLevelItemCount ( ) const

Property documentation pending.

QRect QTreeWidget::visualItemRect ( const QTreeWidgetItem item) const

Returns the rectangle on the viewport occupied by the item at item.

See also
itemAt()

Property Documentation

QTreeWidget::columnCount

This property holds the number of columns displayed in the tree widget.

By default, this property has a value of 1.

PropertiesClass Methods
read columnCount
write setColumnCount
QTreeWidget::topLevelItemCount

This property holds the number of top-level items.

By default, this property has a value of 0.

See also
columnCount(), currentItem()
PropertiesClass Methods
read topLevelItemCount
