QTableWidget Class Reference

The QTableWidget class provides an item-based table view with a default model. More...

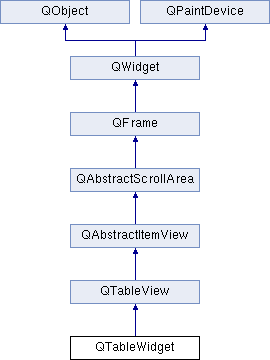

Inheritance diagram for QTableWidget:
QTableView QAbstractItemView QAbstractScrollArea QFrame QWidget QObject QPaintDevice

Public Signals

void cellActivated (int row, int column)

void cellChanged (int row, int column)

void cellClicked (int row, int column)

void cellDoubleClicked (int row, int column)

void cellEntered (int row, int column)

void cellPressed (int row, int column)

void currentCellChanged (int currentRow, int currentColumn, int previousRow, int previousColumn)

void currentItemChanged (QTableWidgetItem *current, QTableWidgetItem *previous)

void itemActivated (QTableWidgetItem *item)

void itemChanged (QTableWidgetItem *item)

void itemClicked (QTableWidgetItem *item)

void itemDoubleClicked (QTableWidgetItem *item)

void itemEntered (QTableWidgetItem *item)

void itemPressed (QTableWidgetItem *item)

void itemSelectionChanged ()

- Public Signals inherited from QAbstractItemView
void activated (const QModelIndex &index)

void clicked (const QModelIndex &index)

void doubleClicked (const QModelIndex &index)

void entered (const QModelIndex &index)

void iconSizeChanged (const QSize &size)

void pressed (const QModelIndex &index)

void viewportEntered ()

- Public Signals inherited from QWidget
void customContextMenuRequested (const QPoint &pos)

void windowIconChanged (const QIcon &icon)

void windowIconTextChanged (const QString &iconText)

void windowTitleChanged (const QString &title)

- Public Signals inherited from QObject
void destroyed (QObject *obj=nullptr)

void objectNameChanged (const QString &objectName)


Public Slots

void clear ()

void clearContents ()

void insertColumn (int column)

void insertRow (int row)

void removeColumn (int column)

void removeRow (int row)

void scrollToItem (const QTableWidgetItem *item, QAbstractItemView::ScrollHint hint=EnsureVisible)

- Public Slots inherited from QTableView
void hideColumn (int column)

void hideRow (int row)

void resizeColumnsToContents ()

void resizeColumnToContents (int column)

void resizeRowsToContents ()

void resizeRowToContents (int row)

void selectColumn (int column)

void selectRow (int row)

void setShowGrid (bool show)

void showColumn (int column)

void showRow (int row)

void sortByColumn (int column)

- Public Slots inherited from QAbstractItemView
void clearSelection ()

void edit (const QModelIndex &index)

virtual void reset ()

void scrollToBottom ()

void scrollToTop ()

virtual void selectAll ()

void setCurrentIndex (const QModelIndex &index)

virtual void setRootIndex (const QModelIndex &index)

void update (const QModelIndex &index)

- Public Slots inherited from QWidget
bool close ()

void hide ()

void lower ()

void raise ()

void repaint ()

void setDisabled (bool disable)

void setEnabled (bool enable)

void setFocus ()

void setHidden (bool hidden)

void setStyleSheet (const QString &styleSheet)

virtual void setVisible (bool visible)

void setWindowModified (bool modified)

void setWindowTitle (const QString &title)

void show ()

void showFullScreen ()

void showMaximized ()

void showMinimized ()

void showNormal ()

void update ()

- Public Slots inherited from QObject
void deleteLater ()


Public Methods

 QTableWidget (int rows, int columns, QWidget *parent=nullptr)

 QTableWidget (QWidget *parent=nullptr)

 ~QTableWidget ()

QWidgetcellWidget (int row, int column) const

void closePersistentEditor (QTableWidgetItem *item)

int column (const QTableWidgetItem *item) const

int columnCount () const

int currentColumn () const

QTableWidgetItemcurrentItem () const

int currentRow () const

void editItem (QTableWidgetItem *item)

QList< QTableWidgetItem * > findItems (const QString &text, Qt::MatchFlags flags) const

QTableWidgetItemhorizontalHeaderItem (int column) const

bool isItemSelected (const QTableWidgetItem *item) const

bool isSortingEnabled () const

QTableWidgetItemitem (int row, int column) const

QTableWidgetItemitemAt (const QPoint &point) const

QTableWidgetItemitemAt (int x, int y) const

const QTableWidgetItemitemPrototype () const

void openPersistentEditor (QTableWidgetItem *item)

void removeCellWidget (int row, int column)

int row (const QTableWidgetItem *item) const

int rowCount () const

QList< QTableWidgetItem * > selectedItems () const

QList< QTableWidgetSelectionRangeselectedRanges () const

void setCellWidget (int row, int column, QWidget *widget)

void setColumnCount (int columns)

void setCurrentCell (int row, int column)

void setCurrentCell (int row, int column, QItemSelectionModel::SelectionFlags command)

void setCurrentItem (QTableWidgetItem *item)

void setCurrentItem (QTableWidgetItem *item, QItemSelectionModel::SelectionFlags command)

void setHorizontalHeaderItem (int column, QTableWidgetItem *item)

void setHorizontalHeaderLabels (const QStringList &labels)

void setItem (int row, int column, QTableWidgetItem *item)

void setItemPrototype (const QTableWidgetItem *item)

void setItemSelected (const QTableWidgetItem *item, bool select)

void setRangeSelected (const QTableWidgetSelectionRange &range, bool select)

void setRowCount (int rows)

void setSortingEnabled (bool enable)

void setVerticalHeaderItem (int row, QTableWidgetItem *item)

void setVerticalHeaderLabels (const QStringList &labels)

void sortItems (int column, Qt::SortOrder order=Qt::AscendingOrder)

QTableWidgetItemtakeHorizontalHeaderItem (int column)

QTableWidgetItemtakeItem (int row, int column)

QTableWidgetItemtakeVerticalHeaderItem (int row)

QTableWidgetItemverticalHeaderItem (int row) const

int visualColumn (int logicalColumn) const

QRect visualItemRect (const QTableWidgetItem *item) const

int visualRow (int logicalRow) const

- Public Methods inherited from QTableView
 QTableView (QWidget *parent=nullptr)

 ~QTableView ()

void clearSpans ()

int columnAt (int x) const

int columnSpan (int row, int column) const

int columnViewportPosition (int column) const

int columnWidth (int column) const

Qt::PenStyle gridStyle () const

QHeaderViewhorizontalHeader () const

QModelIndex indexAt (const QPoint &pos) const override

bool isColumnHidden (int column) const

bool isCornerButtonEnabled () const

bool isRowHidden (int row) const

bool isSortingEnabled () const

int rowAt (int y) const

int rowHeight (int row) const

int rowSpan (int row, int column) const

int rowViewportPosition (int row) const

void scrollTo (const QModelIndex &index, ScrollHint hint=EnsureVisible) override

void setColumnHidden (int column, bool hide)

void setColumnWidth (int column, int width)

void setCornerButtonEnabled (bool enable)

void setGridStyle (Qt::PenStyle style)

void setHorizontalHeader (QHeaderView *header)

void setRootIndex (const QModelIndex &index) override

void setRowHeight (int row, int height)

void setRowHidden (int row, bool hide)

void setSelectionModel (QItemSelectionModel *selectionModel) override

void setSortingEnabled (bool enable)

void setSpan (int row, int column, int rowSpanCount, int columnSpanCount)

void setVerticalHeader (QHeaderView *header)

void setWordWrap (bool on)

bool showGrid () const

void sortByColumn (int column, Qt::SortOrder order)

QHeaderViewverticalHeader () const

QRect visualRect (const QModelIndex &index) const override

bool wordWrap () const

- Public Methods inherited from QAbstractItemView
 QAbstractItemView (QWidget *parent=nullptr)

 ~QAbstractItemView ()

bool alternatingRowColors () const

int autoScrollMargin () const

void closePersistentEditor (const QModelIndex &index)

QModelIndex currentIndex () const

Qt::DropAction defaultDropAction () const

DragDropMode dragDropMode () const

bool dragDropOverwriteMode () const

bool dragEnabled () const

EditTriggers editTriggers () const

bool hasAutoScroll () const

ScrollMode horizontalScrollMode () const

QSize iconSize () const

QWidgetindexWidget (const QModelIndex &index) const

QVariant inputMethodQuery (Qt::InputMethodQuery query) const override

QAbstractItemDelegateitemDelegate () const

QAbstractItemDelegateitemDelegate (const QModelIndex &index) const

QAbstractItemDelegateitemDelegateForColumn (int column) const

QAbstractItemDelegateitemDelegateForRow (int row) const

virtual void keyboardSearch (const QString &search)

QAbstractItemModelmodel () const

void openPersistentEditor (const QModelIndex &index)

QModelIndex rootIndex () const

QAbstractItemView::SelectionBehavior selectionBehavior () const

QAbstractItemView::SelectionMode selectionMode () const

QItemSelectionModelselectionModel () const

void setAlternatingRowColors (bool enable)

void setAutoScroll (bool enable)

void setAutoScrollMargin (int margin)

void setDefaultDropAction (Qt::DropAction dropAction)

void setDragDropMode (DragDropMode behavior)

void setDragDropOverwriteMode (bool overwrite)

void setDragEnabled (bool enable)

void setDropIndicatorShown (bool enable)

void setEditTriggers (EditTriggers triggers)

void setHorizontalScrollMode (ScrollMode mode)

void setIconSize (const QSize &size)

void setIndexWidget (const QModelIndex &index, QWidget *widget)

void setItemDelegate (QAbstractItemDelegate *delegate)

void setItemDelegateForColumn (int column, QAbstractItemDelegate *delegate)

void setItemDelegateForRow (int row, QAbstractItemDelegate *delegate)

void setSelectionBehavior (QAbstractItemView::SelectionBehavior behavior)

void setSelectionMode (QAbstractItemView::SelectionMode mode)

void setTabKeyNavigation (bool enable)

void setTextElideMode (Qt::TextElideMode mode)

void setVerticalScrollMode (ScrollMode mode)

bool showDropIndicator () const

QSize sizeHintForIndex (const QModelIndex &index) const

bool tabKeyNavigation () const

Qt::TextElideMode textElideMode () const

ScrollMode verticalScrollMode () const

- Public Methods inherited from QAbstractScrollArea
 QAbstractScrollArea (QWidget *parent=nullptr)

 ~QAbstractScrollArea ()

void addScrollBarWidget (QWidget *widget, Qt::Alignment alignment)

QWidgetcornerWidget () const

QScrollBarhorizontalScrollBar () const

Qt::ScrollBarPolicy horizontalScrollBarPolicy () const

QSize maximumViewportSize () const

QSize minimumSizeHint () const override

QWidgetList scrollBarWidgets (Qt::Alignment alignment)

void setCornerWidget (QWidget *widget)

void setHorizontalScrollBar (QScrollBar *scrollBar)

void setHorizontalScrollBarPolicy (Qt::ScrollBarPolicy)

void setSizeAdjustPolicy (SizeAdjustPolicy policy)

virtual void setupViewport (QWidget *viewport)

void setVerticalScrollBar (QScrollBar *scrollBar)

void setVerticalScrollBarPolicy (Qt::ScrollBarPolicy)

void setViewport (QWidget *widget)

SizeAdjustPolicy sizeAdjustPolicy () const

QSize sizeHint () const override

QScrollBarverticalScrollBar () const

Qt::ScrollBarPolicy verticalScrollBarPolicy () const

QWidgetviewport () const

- Public Methods inherited from QFrame
 QFrame (QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::EmptyFlag)

 ~QFrame ()

QRect frameRect () const

Shadow frameShadow () const

Shape frameShape () const

int frameStyle () const

int frameWidth () const

int lineWidth () const

int midLineWidth () const

void setFrameRect (const QRect &)

void setFrameShadow (Shadow)

void setFrameShape (Shape)

void setFrameStyle (int style)

void setLineWidth (int)

void setMidLineWidth (int)

QSize sizeHint () const override

- Public Methods inherited from QWidget
 QWidget (QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::EmptyFlag)

 ~QWidget ()

bool acceptDrops () const

QString accessibleDescription () const

QString accessibleName () const

QList< QAction * > actions () const

void activateWindow ()

void addAction (QAction *action)

void addActions (const QList< QAction * > &actions)

void adjustSize ()

bool autoFillBackground () const

QPalette::ColorRole backgroundRole () const

QBackingStorebackingStore () const

QSize baseSize () const

QWidget * childAt (const QPoint &position) const

QWidget * childAt (int x, int y) const

QRect childrenRect () const

QRegion childrenRegion () const

void clearFocus ()

void clearMask ()

QMargins contentsMargins () const

QRect contentsRect () const

Qt::ContextMenuPolicy contextMenuPolicy () const

QCursor cursor () const

WId effectiveWinId () const

void ensurePolished () const

Qt::FocusPolicy focusPolicy () const

QWidget * focusProxy () const

QWidget * focusWidget () const

const QFontfont () const

QFontInfo fontInfo () const

QFontMetrics fontMetrics () const

QPalette::ColorRole foregroundRole () const

QRect frameGeometry () const

QSize frameSize () const

const QRectgeometry () const

void getContentsMargins (int *left, int *top, int *right, int *bottom) const

QPixmap grab (const QRect &rectangle=QRect (QPoint (0, 0), QSize (-1,-1)))

void grabGesture (Qt::GestureType gestureType, Qt::GestureFlags flags=Qt::GestureFlags ())

void grabKeyboard ()

void grabMouse ()

void grabMouse (const QCursor &cursor)

int grabShortcut (const QKeySequence &key, Qt::ShortcutContext context=Qt::WindowShortcut)

QGraphicsEffectgraphicsEffect () const

QGraphicsProxyWidgetgraphicsProxyWidget () const

bool hasEditFocus () const

bool hasFocus () const

virtual bool hasHeightForWidth () const

bool hasMouseTracking () const

int height () const

virtual int heightForWidth (int width) const

Qt::InputMethodHints inputMethodHints () const

void insertAction (QAction *before, QAction *action)

void insertActions (QAction *before, QList< QAction * > actions)

bool isActiveWindow () const

bool isAncestorOf (const QWidget *child) const

bool isEnabled () const

bool isEnabledTo (const QWidget *parent) const

bool isEnabledToTLW () const

bool isFullScreen () const

bool isHidden () const

bool isMaximized () const

bool isMinimized () const

bool isModal () const

bool isTopLevel () const

bool isVisible () const

bool isVisibleTo (const QWidget *parent) const

bool isWindow () const

bool isWindowModified () const

QLayoutlayout () const

Qt::LayoutDirection layoutDirection () const

QLocale locale () const

QPoint mapFrom (const QWidget *parent, const QPoint &pos) const

QPoint mapFromGlobal (const QPoint &pos) const

QPoint mapFromParent (const QPoint &pos) const

QPoint mapTo (const QWidget *parent, const QPoint &pos) const

QPoint mapToGlobal (const QPoint &pos) const

QPoint mapToParent (const QPoint &pos) const

QRegion mask () const

int maximumHeight () const

QSize maximumSize () const

int maximumWidth () const

int minimumHeight () const

QSize minimumSize () const

int minimumWidth () const

void move (const QPoint &point)

void move (int x, int y)

QWidget * nativeParentWidget () const

QWidget * nextInFocusChain () const

QRect normalGeometry () const

void overrideWindowFlags (Qt::WindowFlags flags)

QPaintEnginepaintEngine () const override

const QPalettepalette () const

QWidget * parentWidget () const

QPoint pos () const

QWidget * previousInFocusChain () const

QRect rect () const

void releaseKeyboard ()

void releaseMouse ()

void releaseShortcut (int id)

void removeAction (QAction *action)

void render (QPaintDevice *target, const QPoint &targetOffset=QPoint (), const QRegion &sourceRegion=QRegion (), RenderFlags renderFlags=RenderFlags (DrawWindowBackground|DrawChildren))

void render (QPainter *painter, const QPoint &targetOffset=QPoint (), const QRegion &sourceRegion=QRegion (), RenderFlags renderFlags=RenderFlags (DrawWindowBackground|DrawChildren))

void repaint (const QRect &rect)

void repaint (const QRegion &region)

void repaint (int x, int y, int w, int h)

void resize (const QSize &size)

void resize (int w, int h)

bool restoreGeometry (const QByteArray &geometry)

QByteArray saveGeometry () const

void scroll (int dx, int dy)

void scroll (int dx, int dy, const QRect &rect)

void setAcceptDrops (bool on)

void setAccessibleDescription (const QString &description)

void setAccessibleName (const QString &name)

void setAttribute (Qt::WidgetAttribute attribute, bool enable=true)

void setAutoFillBackground (bool enable)

void setBackgroundRole (QPalette::ColorRole role)

void setBaseSize (const QSize &size)

void setBaseSize (int basew, int baseh)

void setContentsMargins (const QMargins &margins)

void setContentsMargins (int left, int top, int right, int bottom)

void setContextMenuPolicy (Qt::ContextMenuPolicy policy)

void setCursor (const QCursor &cursor)

void setEditFocus (bool enable)

void setFixedHeight (int h)

void setFixedSize (const QSize &size)

void setFixedSize (int w, int h)

void setFixedWidth (int w)

void setFocus (Qt::FocusReason reason)

void setFocusPolicy (Qt::FocusPolicy policy)

void setFocusProxy (QWidget *widget)

void setFont (const QFont &font)

void setForegroundRole (QPalette::ColorRole role)

void setGeometry (const QRect &rect)

void setGeometry (int x, int y, int w, int h)

void setGraphicsEffect (QGraphicsEffect *effect)

void setInputMethodHints (Qt::InputMethodHints hints)

void setLayout (QLayout *layout)

void setLayoutDirection (Qt::LayoutDirection direction)

void setLocale (const QLocale &locale)

void setMask (const QBitmap &bitmap)

void setMask (const QRegion &region)

void setMaximumHeight (int maxh)

void setMaximumSize (const QSize &size)

void setMaximumSize (int maxw, int maxh)

void setMaximumWidth (int maxw)

void setMinimumHeight (int minh)

void setMinimumSize (const QSize &size)

void setMinimumSize (int minw, int minh)

void setMinimumWidth (int minw)

void setMouseTracking (bool enable)

void setPalette (const QPalette &palette)

void setParent (QWidget *parent)

void setParent (QWidget *parent, Qt::WindowFlags flags)

void setShortcutAutoRepeat (int id, bool enable=true)

void setShortcutEnabled (int id, bool enable=true)

void setSizeIncrement (const QSize &size)

void setSizeIncrement (int w, int h)

void setSizePolicy (QSizePolicy policy)

void setSizePolicy (QSizePolicy::Policy horizontal, QSizePolicy::Policy vertical)

void setStatusTip (const QString &data)

void setStyle (QStyle *style)

void setToolTip (const QString &data)

void setToolTipDuration (int msec)

void setUpdatesEnabled (bool enable)

void setWhatsThis (const QString &str)

void setWindowFilePath (const QString &filePath)

void setWindowFlags (Qt::WindowFlags flags)

void setWindowIcon (const QIcon &icon)

void setWindowModality (Qt::WindowModality windowModality)

void setWindowOpacity (qreal level)

void setWindowRole (const QString &role)

void setWindowState (Qt::WindowStates windowState)

QSize size () const

QSize sizeIncrement () const

QSizePolicy sizePolicy () const

void stackUnder (QWidget *widget)

QString statusTip () const

QStylestyle () const

QString styleSheet () const

bool testAttribute (Qt::WidgetAttribute attribute) const

QString toolTip () const

int toolTipDuration () const

QWidget * topLevelWidget () const

bool underMouse () const

void ungrabGesture (Qt::GestureType gestureType)

void unsetCursor ()

void unsetLayoutDirection ()

void unsetLocale ()

void update (const QRect &rect)

void update (const QRegion &region)

void update (int x, int y, int w, int h)

void updateGeometry ()

bool updatesEnabled () const

QRegion visibleRegion () const

QString whatsThis () const

int width () const

QWidget * window () const

QString windowFilePath () const

Qt::WindowFlags windowFlags () const

QWindowwindowHandle () const

QIcon windowIcon () const

Qt::WindowModality windowModality () const

qreal windowOpacity () const

QString windowRole () const

Qt::WindowStates windowState () const

QString windowTitle () const

Qt::WindowType windowType () const

WId winId () const

int x () const

int y () const

- Public Methods inherited from QObject
 QObject (QObject *parent=nullptr)

 ~QObject ()

bool blockSignals (bool block)

const QList< QObject * > & children () const

bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void dumpObjectInfo ()

void dumpObjectTree ()

QList< QStringdynamicPropertyNames () const

virtual bool event (QEvent *event)

virtual bool eventFilter (QObject *watched, QEvent *event)

template<typename T >
findChild (const QString &childName=QString ()) const

template<class T >
QList< T > findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T > findChildren (const QString &objName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool inherits (const QString &className) const

void installEventFilter (QObject *filterObj)

bool isWidgetType () const

bool isWindowType () const

void killTimer (int id)

const QMetaObjectmetaObject () const

void moveToThread (QThread *targetThread)

QString objectName () const

QObject * parent () const

template<class T = QVariant>
property (const QString &name) const

void removeEventFilter (QObject *obj)

void setObjectName (const QString &name)

void setParent (QObject *parent)

bool setProperty (const QString &name, const QVariant &value)

bool signalsBlocked () const

int startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThreadthread () const

- Public Methods inherited from QPaintDevice
virtual ~QPaintDevice ()

int colorCount () const

int depth () const

int devicePixelRatio () const

qreal devicePixelRatioF () const

int height () const

int heightMM () const

int logicalDpiX () const

int logicalDpiY () const

bool paintingActive () const

int physicalDpiX () const

int physicalDpiY () const

int width () const

int widthMM () const


Protected Methods

void dropEvent (QDropEvent *event) override

virtual bool dropMimeData (int row, int column, const QMimeData *data, Qt::DropAction action)

bool event (QEvent *event) override

QModelIndex indexFromItem (QTableWidgetItem *item) const

QTableWidgetItemitemFromIndex (const QModelIndex &index) const

QList< QTableWidgetItem * > items (const QMimeData *data) const

virtual QMimeDatamimeData (const QList< QTableWidgetItem * > &items) const

virtual QStringList mimeTypes () const

virtual Qt::DropActions supportedDropActions () const

- Protected Methods inherited from QTableView
void currentChanged (const QModelIndex &current, const QModelIndex &previous) override

int horizontalOffset () const override

bool isIndexHidden (const QModelIndex &index) const override

QModelIndex moveCursor (CursorAction cursorAction, Qt::KeyboardModifiers modifiers) override

void paintEvent (QPaintEvent *event) override

void scrollContentsBy (int dx, int dy) override

QModelIndexList selectedIndexes () const override

void selectionChanged (const QItemSelection &selected, const QItemSelection &deselected) override

void setSelection (const QRect &rect, QItemSelectionModel::SelectionFlags flags) override

int sizeHintForColumn (int column) const override

int sizeHintForRow (int row) const override

void timerEvent (QTimerEvent *event) override

void updateGeometries () override

int verticalOffset () const override

QStyleOptionViewItem viewOptions () const override

QSize viewportSizeHint () const override

QRegion visualRegionForSelection (const QItemSelection &selection) const override

- Protected Methods inherited from QAbstractItemView
QPoint dirtyRegionOffset () const

void dragEnterEvent (QDragEnterEvent *event) override

void dragLeaveEvent (QDragLeaveEvent *event) override

void dragMoveEvent (QDragMoveEvent *event) override

DropIndicatorPosition dropIndicatorPosition () const

virtual bool edit (const QModelIndex &index, EditTrigger trigger, QEvent *event)

bool event (QEvent *event) override

void executeDelayedItemsLayout ()

void focusInEvent (QFocusEvent *event) override

bool focusNextPrevChild (bool next) override

void focusOutEvent (QFocusEvent *event) override

int horizontalStepsPerItem () const

void inputMethodEvent (QInputMethodEvent *event) override

void keyPressEvent (QKeyEvent *event) override

void mouseDoubleClickEvent (QMouseEvent *event) override

void mouseMoveEvent (QMouseEvent *event) override

void mousePressEvent (QMouseEvent *event) override

void mouseReleaseEvent (QMouseEvent *event) override

void resizeEvent (QResizeEvent *event) override

void scheduleDelayedItemsLayout ()

void scrollDirtyRegion (int dx, int dy)

virtual QItemSelectionModel::SelectionFlags selectionCommand (const QModelIndex &index, const QEvent *event=nullptr) const

void setDirtyRegion (const QRegion &region)

void setHorizontalStepsPerItem (int steps)

void setState (State state)

void setVerticalStepsPerItem (int steps)

virtual void startDrag (Qt::DropActions supportedActions)

State state () const

void timerEvent (QTimerEvent *event) override

int verticalStepsPerItem () const

bool viewportEvent (QEvent *event) override

- Protected Methods inherited from QAbstractScrollArea
void contextMenuEvent (QContextMenuEvent *event) override

void dragEnterEvent (QDragEnterEvent *event) override

void dragLeaveEvent (QDragLeaveEvent *event) override

void dragMoveEvent (QDragMoveEvent *event) override

void dropEvent (QDropEvent *event) override

bool event (QEvent *event) override

void keyPressEvent (QKeyEvent *event) override

void mouseDoubleClickEvent (QMouseEvent *event) override

void mouseMoveEvent (QMouseEvent *event) override

void mousePressEvent (QMouseEvent *event) override

void mouseReleaseEvent (QMouseEvent *event) override

void paintEvent (QPaintEvent *event) override

void resizeEvent (QResizeEvent *event) override

void setViewportMargins (const QMargins &margins)

void setViewportMargins (int left, int top, int right, int bottom)

QMargins viewportMargins () const

void wheelEvent (QWheelEvent *event) override

- Protected Methods inherited from QFrame
void changeEvent (QEvent *event) override

void drawFrame (QPainter *)

bool event (QEvent *event) override

void initStyleOption (QStyleOptionFrame *option) const

void paintEvent (QPaintEvent *event) override

- Protected Methods inherited from QWidget
virtual void actionEvent (QActionEvent *event)

virtual void closeEvent (QCloseEvent *event)

void create (WId window=0, bool initializeWindow=true, bool destroyOldWindow=true)

void destroy (bool destroyWindow=true, bool destroySubWindows=true)

virtual void enterEvent (QEvent *event)

bool event (QEvent *event) override

bool focusNextChild ()

bool focusPreviousChild ()

virtual void hideEvent (QHideEvent *event)

void initPainter (QPainter *painter) const override

virtual void keyReleaseEvent (QKeyEvent *event)

virtual void leaveEvent (QEvent *event)

int metric (PaintDeviceMetric metric) const override

virtual void moveEvent (QMoveEvent *event)

virtual bool nativeEvent (const QByteArray &eventType, void *message, long *result)

virtual void showEvent (QShowEvent *event)

virtual void tabletEvent (QTabletEvent *event)

- Protected Methods inherited from QObject
virtual void childEvent (QChildEvent *event)

virtual void connectNotify (const QMetaMethod &signalMethod) const

virtual void customEvent (QEvent *event)

virtual void disconnectNotify (const QMetaMethod &signalMethod) const

bool isSignalConnected (const QMetaMethod &signalMethod) const

int receivers (const QString &signal) const

QObject * sender () const

int senderSignalIndex () const

virtual void timerEvent (QTimerEvent *event)

- Protected Methods inherited from QPaintDevice
 QPaintDevice ()


Properties

 columnCount

 rowCount

- Properties inherited from QTableView
 cornerButtonEnabled

 gridStyle

 showGrid

 sortingEnabled

 wordWrap

- Properties inherited from QAbstractItemView
 alternatingRowColors

 autoScroll

 autoScrollMargin

 defaultDropAction

 dragDropMode

 dragDropOverwriteMode

 dragEnabled

 editTriggers

 horizontalScrollMode

 iconSize

 selectionBehavior

 selectionMode

 showDropIndicator

 tabKeyNavigation

 textElideMode

 verticalScrollMode

- Properties inherited from QAbstractScrollArea
 horizontalScrollBarPolicy

 verticalScrollBarPolicy

- Properties inherited from QFrame
 frameRect

 frameShadow

 frameShape

 frameWidth

 lineWidth

 midLineWidth

- Properties inherited from QWidget
 acceptDrops

 accessibleDescription

 accessibleName

 autoFillBackground

 baseSize

 childrenRect

 childrenRegion

 contextMenuPolicy

 cursor

 enabled

 focus

 focusPolicy

 font

 frameGeometry

 frameSize

 fullScreen

 geometry

 height

 inputMethodHints

 isActiveWindow

 layoutDirection

 locale

 maximized

 maximumHeight

 maximumSize

 maximumWidth

 minimized

 minimumHeight

 minimumSize

 minimumSizeHint

 minimumWidth

 modal

 mouseTracking

 normalGeometry

 palette

 pos

 rect

 size

 sizeHint

 sizeIncrement

 sizePolicy

 statusTip

 styleSheet

 toolTip

 updatesEnabled

 visible

 whatsThis

 width

 windowFilePath

 windowFlags

 windowIcon

 windowIconText

 windowModality

 windowModified

 windowOpacity

 windowTitle

 x

 y

- Properties inherited from QObject
 objectName


Additional Inherited Members

- Public Types inherited from QAbstractItemView
enum  DragDropMode

enum  ScrollHint

enum  ScrollMode

enum  SelectionBehavior

enum  SelectionMode

- Public Types inherited from QFrame
enum  Shadow

enum  Shape

enum  StyleMask

- Public Types inherited from QWidget
enum  RenderFlag

- Public Types inherited from QPaintDevice
enum  PaintDeviceMetric

- Static Public Methods inherited from QWidget
static QWidget * createWindowContainer (QWindow *window, QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::EmptyFlag)

static QWidget * find (WId id)

static QWidget * keyboardGrabber ()

static QWidget * mouseGrabber ()

static void setTabOrder (QWidget *firstWidget, QWidget *secondWidget)

- Static Public Methods inherited from QObject
static bool connect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool connect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool connect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool connect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool disconnect (const QObject *sender, const QMetaMethod &signalMethod, const QObject *receiver, const QMetaMethod &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QObject *receiver, const QString &slotMethod)

static bool disconnect (const QObject *sender, const QString &signalMethod, const QString &location, const QObject *receiver, const QString &slotMethod)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, SlotReturn (SlotClass::*slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool disconnect (const Sender *sender, void (SignalClass::*signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObjectstaticMetaObject ()

static QString tr (const char *text, const char *comment=nullptr, std::optional< int > numArg=std::optional< int >())

- Protected Types inherited from QAbstractItemView
enum  CursorAction

enum  DropIndicatorPosition

enum  State

- Protected Slots inherited from QTableView
void columnCountChanged (int oldCount, int newCount)

void columnMoved (int column, int oldIndex, int newIndex)

void columnResized (int column, int oldWidth, int newWidth)

void rowCountChanged (int oldCount, int newCount)

void rowMoved (int row, int oldIndex, int newIndex)

void rowResized (int row, int oldHeight, int newHeight)

- Protected Slots inherited from QAbstractItemView
virtual void closeEditor (QWidget *editor, QAbstractItemDelegate::EndEditHint hint)

virtual void commitData (QWidget *editor)

virtual void currentChanged (const QModelIndex &current, const QModelIndex &previous)

virtual void dataChanged (const QModelIndex &topLeft, const QModelIndex &bottomRight, const QVector< int > &roles=QVector< int >())

virtual void editorDestroyed (QObject *editor)

virtual void rowsAboutToBeRemoved (const QModelIndex &parent, int start, int end)

virtual void rowsInserted (const QModelIndex &parent, int start, int end)

virtual void selectionChanged (const QItemSelection &selected, const QItemSelection &deselected)

virtual void updateGeometries ()

- Protected Slots inherited from QWidget
void updateMicroFocus ()


Detailed Description

The QTableWidget class provides an item-based table view with a default model. Table widgets provide standard table display facilities for applications. The items in a QTableWidget are provided by QTableWidgetItem. If you want a table that uses your own data model you should use QTableView rather than this class.

Table widgets can be constructed with the required numbers of rows and columns:

tableWidget = new QTableWidget(12, 3, this);

Alternatively, tables can be constructed without a given size and resized later:

tableWidget = new QTableWidget(this);
tableWidget->setRowCount(10);
tableWidget->setColumnCount(5);

Items are created outside the table (with no parent widget) and inserted into the table with setItem():

QTableWidgetItem *newItem = new QTableWidgetItem(tr("%1").formatArg((row+1)*(column+1)));
tableWidget->setItem(row, column, newItem);

If you want to enable sorting in your table widget, do so after you have populated it with items, otherwise sorting may interfere with the insertion order (see setItem() for details).

Tables can be given both horizontal and vertical headers. The simplest way to create the headers is to supply a list of strings to the setHorizontalHeaderLabels() and setVerticalHeaderLabels() functions. These will provide simple textual headers for the table's columns and rows. More sophisticated headers can be created from existing table items that are usually constructed outside the table. For example, we can construct a table item with an icon and aligned text, and use it as the header for a particular column:

QTableWidgetItem *cubesHeaderItem = new QTableWidgetItem(tr("Cubes"));
cubesHeaderItem->setIcon(QIcon(QPixmap(":/Images/cubed.png")));
cubesHeaderItem->setTextAlignment(Qt::AlignVCenter);

The number of rows in the table can be found with rowCount(), and the number of columns with columnCount(). The table can be cleared with the clear() function.

Windows XP style table widget Mac OS X style table widget Fusion style table widget
See also
QTableWidgetItem, QTableView, Model/View Programming

Constructor & Destructor Documentation

QTableWidget::QTableWidget ( QWidget parent = nullptr)
explicit

Creates a new table view with the given parent.

QTableWidget::QTableWidget ( int  rows,
int  columns,
QWidget parent = nullptr
)

Creates a new table view with the given rows and columns, and with the given parent.

QTableWidget::~QTableWidget ( )

Destroys this QTableWidget.

Method Documentation

void QTableWidget::cellActivated ( int  row,
int  column
)
signal

This signal is emitted when the cell specified by row and column has been activated

void QTableWidget::cellChanged ( int  row,
int  column
)
signal

This signal is emitted whenever the data of the item in the cell specified by row and column has changed.

void QTableWidget::cellClicked ( int  row,
int  column
)
signal

This signal is emitted whenever a cell in the table is clicked. The row and column specified is the cell that was clicked.

void QTableWidget::cellDoubleClicked ( int  row,
int  column
)
signal

This signal is emitted whenever a cell in the table is double clicked. The row and column specified is the cell that was double clicked.

void QTableWidget::cellEntered ( int  row,
int  column
)
signal

This signal is emitted when the mouse cursor enters a cell. The cell is specified by row and column.

This signal is only emitted when mouseTracking is turned on, or when a mouse button is pressed while moving into an item.

void QTableWidget::cellPressed ( int  row,
int  column
)
signal

This signal is emitted whenever a cell in the table is pressed. The row and column specified is the cell that was pressed.

QWidget * QTableWidget::cellWidget ( int  row,
int  column
) const

Returns the widget displayed in the cell in the given row and column.

Note
The table takes ownership of the widget.
See also
setCellWidget()
void QTableWidget::clear ( )
slot

Removes all items in the view. This will also remove all selections. The table dimensions stay the same.

void QTableWidget::clearContents ( )
slot

Removes all items not in the headers from the view. This will also remove all selections. The table dimensions stay the same.

void QTableWidget::closePersistentEditor ( QTableWidgetItem item)

Closes the persistent editor for item.

See also
openPersistentEditor()
int QTableWidget::column ( const QTableWidgetItem item) const

Returns the column for the item.

int QTableWidget::columnCount ( ) const

Property documentation pending.

void QTableWidget::currentCellChanged ( int  currentRow,
int  currentColumn,
int  previousRow,
int  previousColumn
)
signal

This signal is emitted whenever the current cell changes. The cell specified by previousRow and previousColumn is the cell that previously had the focus, the cell specified by currentRow and currentColumn is the new current cell.

int QTableWidget::currentColumn ( ) const

Returns the column of the current item.

See also
currentRow(), setCurrentCell()
QTableWidgetItem * QTableWidget::currentItem ( ) const

Returns the current item.

See also
setCurrentItem()
void QTableWidget::currentItemChanged ( QTableWidgetItem current,
QTableWidgetItem previous
)
signal

This signal is emitted whenever the current item changes. The previous item is the item that previously had the focus, current is the new current item.

int QTableWidget::currentRow ( ) const

Returns the row of the current item.

See also
currentColumn(), setCurrentCell()
void QTableWidget::dropEvent ( QDropEvent event)
overrideprotectedvirtual

Reimplemented from QWidget::dropEvent().

Reimplemented from QAbstractItemView.

bool QTableWidget::dropMimeData ( int  row,
int  column,
const QMimeData data,
Qt::DropAction  action
)
protectedvirtual

Handles the data supplied by a drag and drop operation that ended with the given action in the given row and column. Returns true if the data and action can be handled by the model, otherwise returns false.

See also
supportedDropActions()
void QTableWidget::editItem ( QTableWidgetItem item)

Starts editing the item if it is editable.

bool QTableWidget::event ( QEvent event)
overrideprotected

Reimplemented from QObject::event().

QList< QTableWidgetItem * > QTableWidget::findItems ( const QString text,
Qt::MatchFlags  flags
) const

Finds items that matches the text using the given flags.

QTableWidgetItem * QTableWidget::horizontalHeaderItem ( int  column) const

Returns the horizontal header item for column, column, if one has been set, otherwise returns a nullptr.

See also
setHorizontalHeaderItem()
QModelIndex QTableWidget::indexFromItem ( QTableWidgetItem item) const
protected

Returns the QModelIndex associated with the given item.

void QTableWidget::insertColumn ( int  column)
slot

Inserts an empty column into the table at column.

void QTableWidget::insertRow ( int  row)
slot

Inserts an empty row into the table at row.

bool QTableWidget::isItemSelected ( const QTableWidgetItem item) const
deprecated
Deprecated:
Returns true if the item is selected, otherwise returns false.

This function is deprecated. Use QTableWidgetItem::isSelected() instead.

bool QTableWidget::isSortingEnabled ( ) const

Property documentation pending.

QTableWidgetItem * QTableWidget::item ( int  row,
int  column
) const

Returns the item for the given row and column if one has been set, otherwise returns a nullptr.

See also
setItem()
void QTableWidget::itemActivated ( QTableWidgetItem item)
signal

This signal is emitted when the specified item has been activated.

QTableWidgetItem * QTableWidget::itemAt ( const QPoint point) const

Returns a pointer to the item at the given point, or returns a nullptr if point is not covered by an item in the table widget.

See also
item()
QTableWidgetItem * QTableWidget::itemAt ( int  x,
int  y
) const
inline

Returns the item at the position equivalent to QPoint(ax, ay) in the table widget's coordinate system, or returns a nullptr if the specified point is not covered by an item in the table widget.

See also
item()
void QTableWidget::itemChanged ( QTableWidgetItem item)
signal

This signal is emitted whenever the data of item has changed.

void QTableWidget::itemClicked ( QTableWidgetItem item)
signal

This signal is emitted whenever an item in the table is clicked. The item specified is the item that was clicked.

void QTableWidget::itemDoubleClicked ( QTableWidgetItem item)
signal

This signal is emitted whenever an item in the table is double clicked. The item specified is the item that was double clicked.

void QTableWidget::itemEntered ( QTableWidgetItem item)
signal

This signal is emitted when the mouse cursor enters an item. The item is the item entered.

This signal is only emitted when mouseTracking is turned on, or when a mouse button is pressed while moving into an item.

QTableWidgetItem * QTableWidget::itemFromIndex ( const QModelIndex index) const
protected

Returns a pointer to the QTableWidgetItem associated with the given index.

void QTableWidget::itemPressed ( QTableWidgetItem item)
signal

This signal is emitted whenever an item in the table is pressed. The item specified is the item that was pressed.

const QTableWidgetItem * QTableWidget::itemPrototype ( ) const

Returns the item prototype used by the table.

See also
setItemPrototype()
QList< QTableWidgetItem * > QTableWidget::items ( const QMimeData data) const
protected

Returns a list of pointers to the items contained in the data object. If the object was not created by a QTreeWidget in the same process, the list is empty.

void QTableWidget::itemSelectionChanged ( )
signal

This signal is emitted whenever the selection changes.

See also
selectedItems(), QTableWidgetItem::isSelected()
QMimeData * QTableWidget::mimeData ( const QList< QTableWidgetItem * > &  items) const
protectedvirtual

Returns an object that contains a serialized description of the specified items. The format used to describe the items is obtained from the mimeTypes() function.

If the list of items is empty, 0 is returned rather than a serialized empty list.

QStringList QTableWidget::mimeTypes ( ) const
protectedvirtual

Returns a list of MIME types that can be used to describe a list of tablewidget items.

See also
mimeData()
void QTableWidget::openPersistentEditor ( QTableWidgetItem item)

Opens an editor for the give item. The editor remains open after editing.

See also
closePersistentEditor()
void QTableWidget::removeCellWidget ( int  row,
int  column
)
inline

Removes the widget set on the cell indicated by row and column.

void QTableWidget::removeColumn ( int  column)
slot

Removes the column column and all its items from the table.

void QTableWidget::removeRow ( int  row)
slot

Removes the row row and all its items from the table.

int QTableWidget::row ( const QTableWidgetItem item) const

Returns the row for the item.

int QTableWidget::rowCount ( ) const

Property documentation pending.

void QTableWidget::scrollToItem ( const QTableWidgetItem item,
QAbstractItemView::ScrollHint  hint = EnsureVisible
)
slot

Scrolls the view if necessary to ensure that the item is visible. The hint parameter specifies more precisely where the item should be located after the operation.

QList< QTableWidgetItem * > QTableWidget::selectedItems ( ) const

Returns a list of all selected items.

This function returns a list of pointers to the contents of the selected cells. Use the selectedIndexes() function to retrieve the complete selection including empty cells.

See also
selectedIndexes()
QList< QTableWidgetSelectionRange > QTableWidget::selectedRanges ( ) const

Returns a list of all selected ranges.

See also
QTableWidgetSelectionRange
void QTableWidget::setCellWidget ( int  row,
int  column,
QWidget widget
)

Sets the given widget to be displayed in the cell in the given row and column, passing the ownership of the widget to the table.

If cell widget A is replaced with cell widget B, cell widget A will be deleted. For example, in the code snippet below, the QLineEdit object will be deleted.

...
setCellWidget(index, new QTextEdit);
See also
cellWidget()
void QTableWidget::setColumnCount ( int  columns)

Property documentation pending.

void QTableWidget::setCurrentCell ( int  row,
int  column
)

Sets the current cell to be the cell at position (row, column).

Depending on the current selection mode, the cell may also be selected.

See also
setCurrentItem(), currentRow(), currentColumn()
void QTableWidget::setCurrentCell ( int  row,
int  column,
QItemSelectionModel::SelectionFlags  command
)

Sets the current cell to be the cell at position (row, column), using the given command.

See also
setCurrentItem(), currentRow(), currentColumn()
void QTableWidget::setCurrentItem ( QTableWidgetItem item)

Sets the current item to item.

Unless the selection mode is NoSelection, the item is also be selected.

See also
currentItem(), setCurrentCell()
void QTableWidget::setCurrentItem ( QTableWidgetItem item,
QItemSelectionModel::SelectionFlags  command
)

Sets the current item to be item, using the given command.

See also
currentItem(), setCurrentCell()
void QTableWidget::setHorizontalHeaderItem ( int  column,
QTableWidgetItem item
)

Sets the horizontal header item for column column to item.

See also
horizontalHeaderItem()
void QTableWidget::setHorizontalHeaderLabels ( const QStringList labels)

Sets the horizontal header labels using labels.

void QTableWidget::setItem ( int  row,
int  column,
QTableWidgetItem item
)

Sets the item for the given row and column to item.

The table takes ownership of the item.

Note that if sorting is enabled (see sortingEnabled) and column is the current sort column, the row will be moved to the sorted position determined by item.

If you want to set several items of a particular row (say, by calling setItem() in a loop), you may want to turn off sorting before doing so, and turn it back on afterwards; this will allow you to use the same row argument for all items in the same row (i.e. setItem() will not move the row).

See also
item(), takeItem()
void QTableWidget::setItemPrototype ( const QTableWidgetItem item)

Sets the item prototype for the table to the specified item.

The table widget will use the item prototype clone function when it needs to create a new table item. For example when the user is editing in an empty cell. This is useful when you have a QTableWidgetItem subclass and want to make sure that QTableWidget creates instances of your subclass.

The table takes ownership of the prototype.

See also
itemPrototype()
void QTableWidget::setItemSelected ( const QTableWidgetItem item,
bool  select
)
deprecated
Deprecated:
Selects or deselects item depending on select.

This function is deprecated. Use QTableWidgetItem::setSelected() instead.

See also
isItemSelected()
void QTableWidget::setRangeSelected ( const QTableWidgetSelectionRange range,
bool  select
)

Selects or deselects the range depending on select.

void QTableWidget::setRowCount ( int  rows)

Property documentation pending.

void QTableWidget::setSortingEnabled ( bool  enable)

Property documentation pending.

void QTableWidget::setVerticalHeaderItem ( int  row,
QTableWidgetItem item
)

Sets the vertical header item for row row to item.

See also
verticalHeaderItem()
void QTableWidget::setVerticalHeaderLabels ( const QStringList labels)

Sets the vertical header labels using labels.

void QTableWidget::sortItems ( int  column,
Qt::SortOrder  order = Qt::AscendingOrder
)

Sorts all the rows in the table widget based on column and order.

Qt::DropActions QTableWidget::supportedDropActions ( ) const
protectedvirtual

Returns the drop actions supported by this view.

See also
Qt::DropActions
QTableWidgetItem * QTableWidget::takeHorizontalHeaderItem ( int  column)

Removes the horizontal header item at column from the header without deleting it.

QTableWidgetItem * QTableWidget::takeItem ( int  row,
int  column
)

Removes the item at row and column from the table without deleting it.

QTableWidgetItem * QTableWidget::takeVerticalHeaderItem ( int  row)

Removes the vertical header item at row from the header without deleting it.

QTableWidgetItem * QTableWidget::verticalHeaderItem ( int  row) const

Returns the vertical header item for row row.

See also
setVerticalHeaderItem()
int QTableWidget::visualColumn ( int  logicalColumn) const

Returns the visual column of the given logicalColumn.

QRect QTableWidget::visualItemRect ( const QTableWidgetItem item) const

Returns the rectangle on the viewport occupied by the item at item.

int QTableWidget::visualRow ( int  logicalRow) const

Returns the visual row of the given logicalRow.

Property Documentation

QTableWidget::columnCount

This property holds the number of columns in the table.

By default, for a table constructed without row and column counts, this property contains a value of 0.

PropertiesClass Methods
read columnCount
write setColumnCount
QTableWidget::rowCount

This property holds the number of rows in the table.

By default, for a table constructed without row and column counts, this property contains a value of 0.

PropertiesClass Methods
read rowCount
write setRowCount
